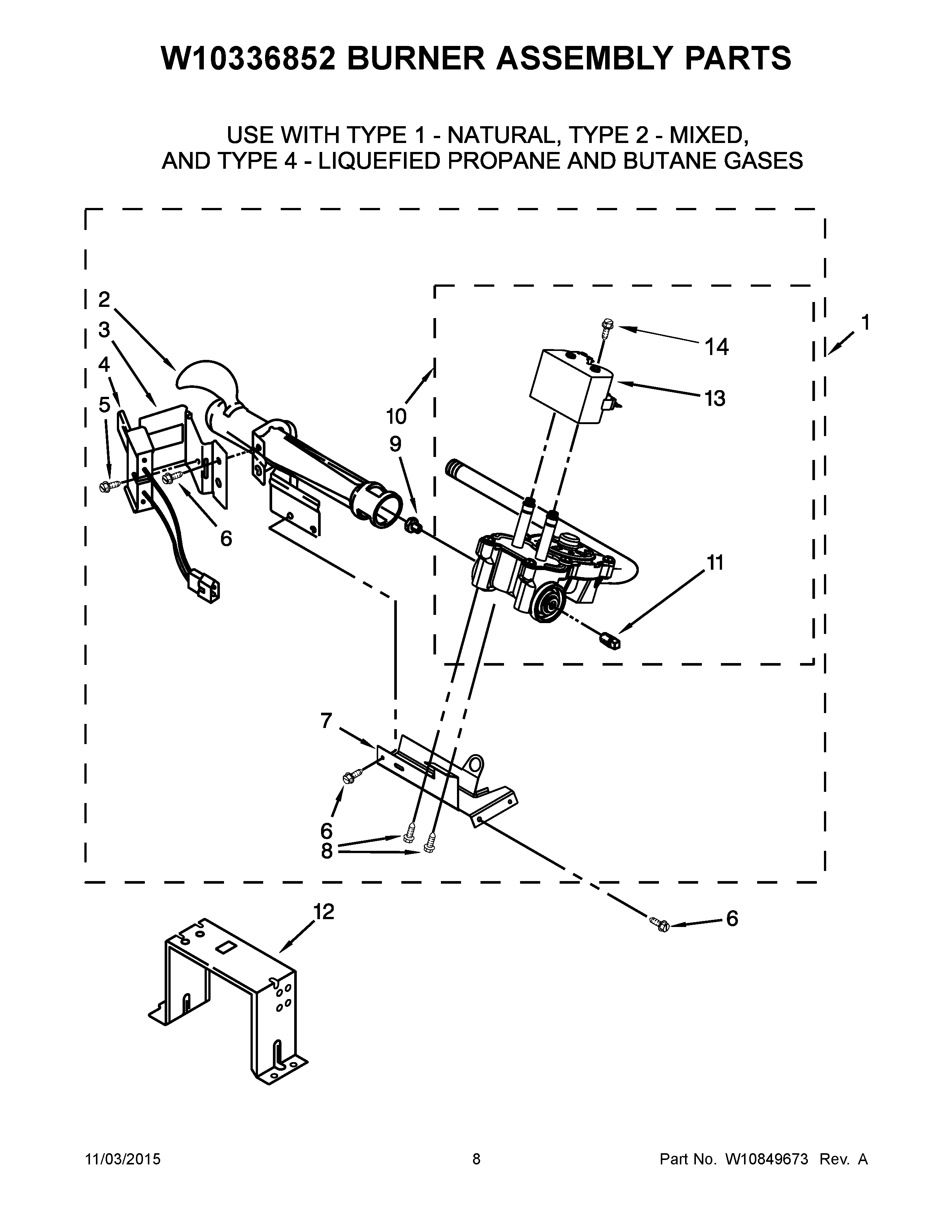

MGDC555DW2 05 – W10336852 BURNER ASSEMBLY PARTS

MGDC555DW2 05 – W10336852 BURNER ASSEMBLY PARTS

Written by

in

MGDC555DW2 05 – W10336852 BURNER ASSEMBLY PARTS

Products

PositionProduct
NIMAY 49572A
NILINER (NOT A SERVICEABLE PART)
1MAY W10336852
2MAY 688617
3MAY 694298
4MAY 686590
5MAY W10366705
6SCREW
7MAY 693986
8SCREW
9TYPE 1 (NATURAL)
10MAY W10304604
11MAY W10295523
12MAY 3389889
13MAY W10328463
14MAY 326049536
