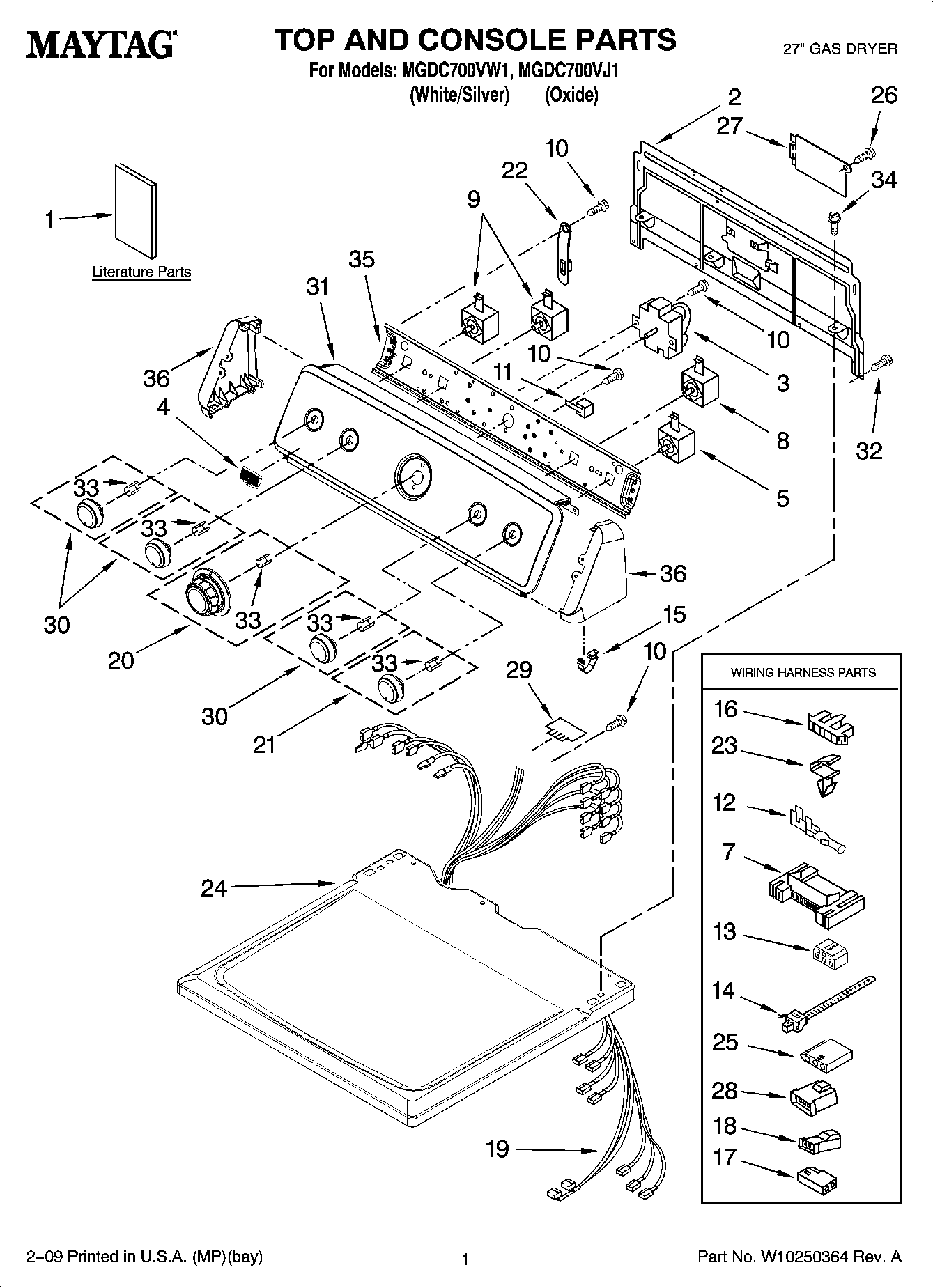

MGDC700VJ1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10185993
1	MAY W10088974
1	MAY W10232963
1	MAY W10089180
2	MAY 8317305
3	MAY W10185992
4	MAY W10101390
5	Switch, Push-To-Start
7	CONNECTOR (MOTOR)
8	MAY 3405155
9	MAY 3405156
10	MAY 8533971
11	MAY 694419
12	Terminal
13	Connector
14	MAY 3391018
15	MAY 8312709
16	Connector-Timer
17	Plug, 2-Way Terminal
18	CONNECTOR, 2-POSITION (GAS VALVE)
19	MAY W10186101
20	MAY W10112584
20	MAY W10180219
21	MAY W10112586
21	Knob Assembly Push-To-Start (White)
22	Strap, Console
23	CLIP, HARNESS
24	MAY 8541355
24	MAY W10212718
25	MAY 3936144
26	Screw, 8-18 x 3/8
27	MAY 8317340
28	MAY 3403498
29	MAY 8558178
30	Knob, Control (3)
30	MAY W10180218
31	MAY W10086738
31	MAY W10086741
32	Screw
33	CLIP, SPRING
34	SCREW
35	MAY W10112604
36	MAY W10101398
36	MAY W10101397
36	Endcap (L.H.)
36	Endcap (R.H.)
