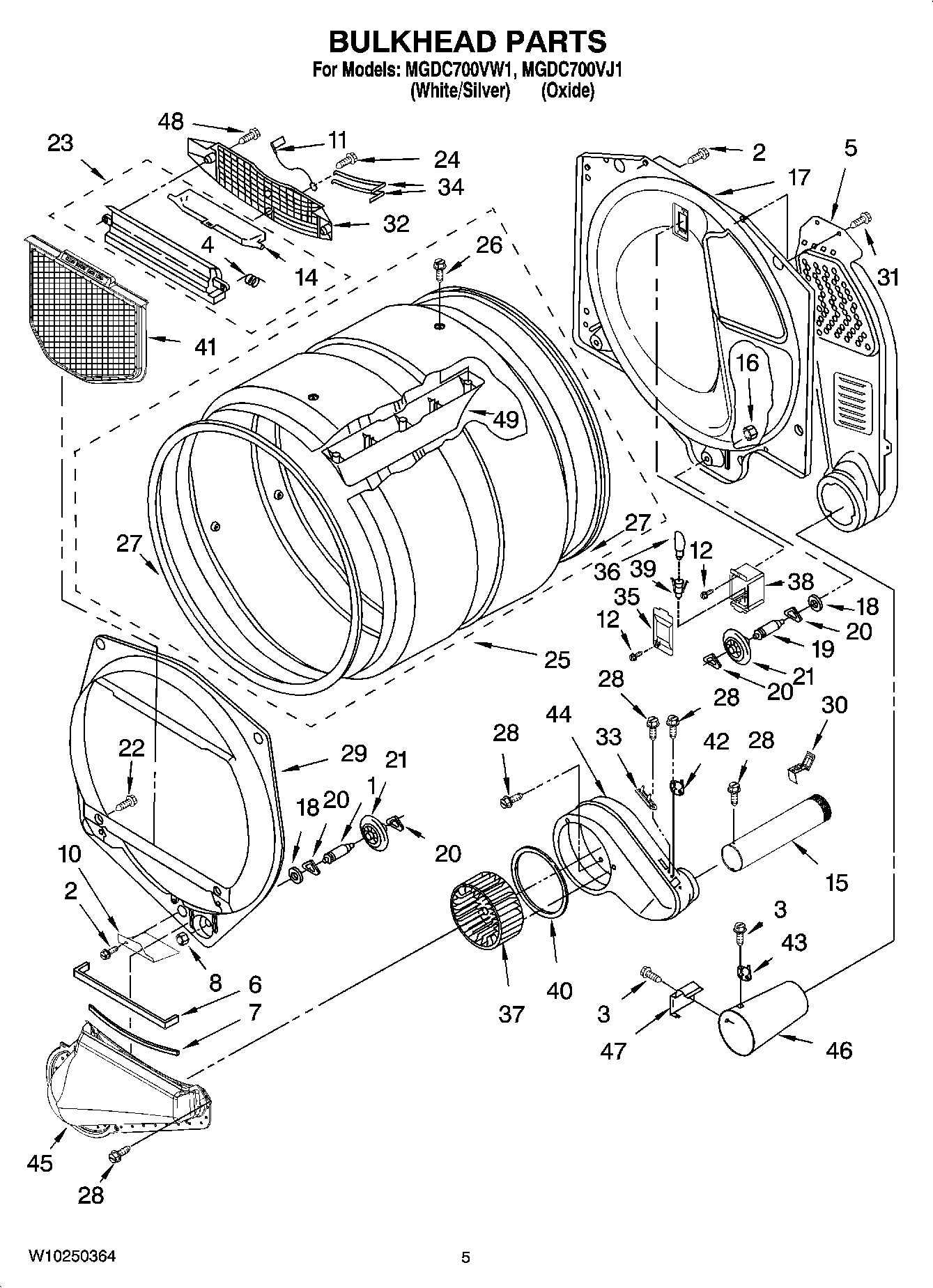

MGDC700VJ1 03 – BULKHEAD PARTS

Products

Position	Product
1	MAY 8575324
2	SCREW
3	SCREW,8-18 X 3/8
4	Spring, Lint Screen Door
5	MAY 3394346
6	MAY 697813
7	MAY 697814
8	NUT, HEX
10	MAY W10128629
11	Wire
12	MAY 487909
14	MAY 3394984
15	PIPE, EXHAUST
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 8520836
18	WASHER
19	MAY 8575325
20	WASHER, TRI RING
21	MAY 8536973
22	MAY 342055
23	MAY 3394985
24	MAY 359625
25	Complete Drum Assembly
26	MAY W10219342
27	MAY W10166807
28	MAY 8533971
29	BULKHEAD, FRONT
30	CLIP, EXHAUST
31	Screw
32	MAY 8299979
33	Fuse, Thermal (91 C)
34	SENSOR, ELECTRODE
35	MAY 3402841
36	MAY 3406124
37	MAY 697772
38	MAY 3977373
39	MAY W10136369
40	SEAL, PLATE COVER
41	MAY W10049370
42	MAY 8318268
43	Thermostat, 205 F (96C)
44	MAY 8544362
45	Lint Duct Assembly
46	MAY 8066047
47	MAY 338906
48	SCREW
49	BAFFLE, DRUM
