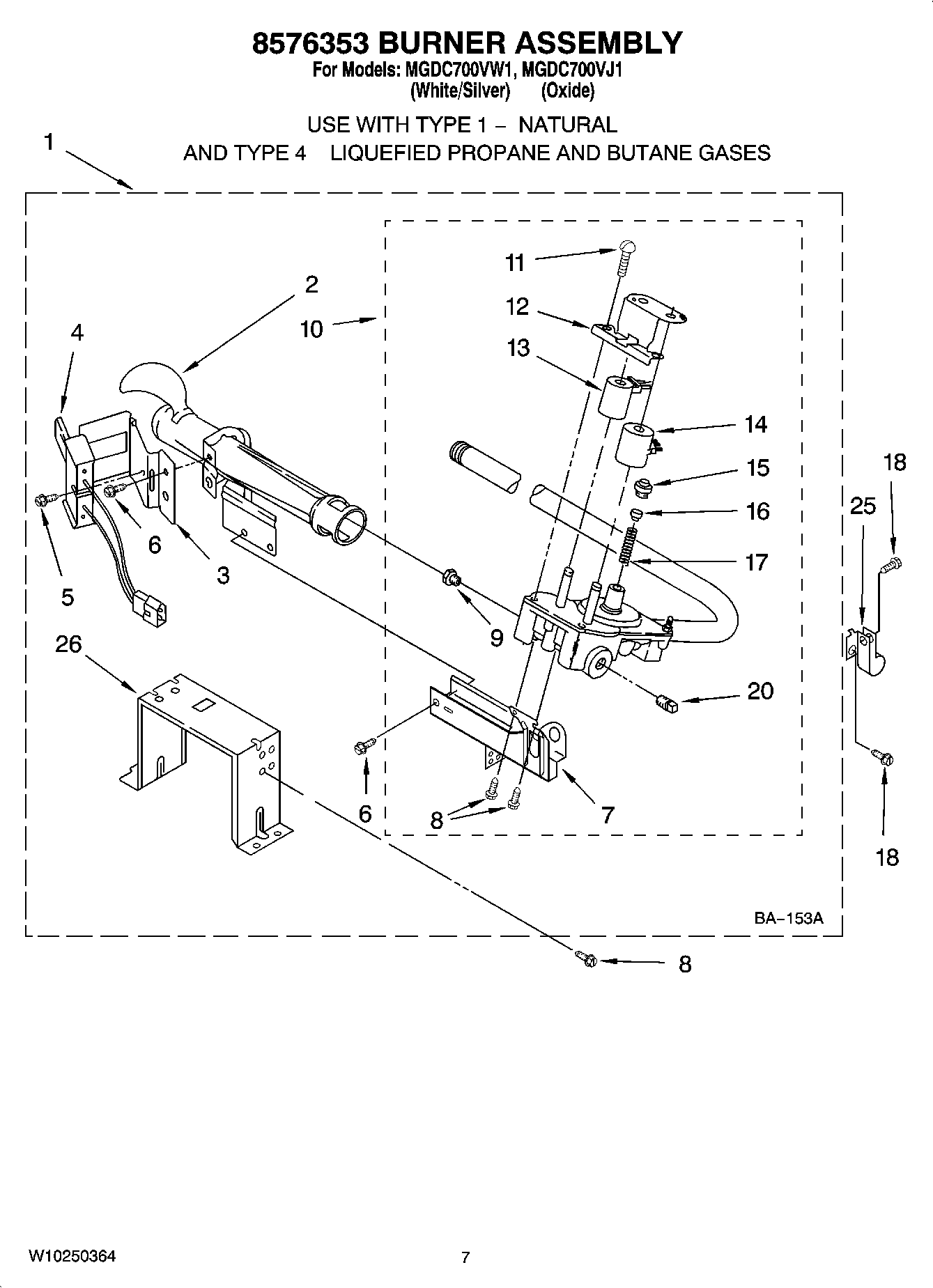

MGDC700VJ1 04 – 8576353 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	ACCESSORY PARTS, KIT, DRYER REPAIR
NI	ACCESSORY PARTS, KIT, HOLD DOWN
NI	ACCESSORY PARTS (KIT, DRYER VENT TESTING)
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NI	Conversion Kit (Type (1) to Type (4) LPG).
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	Dry Rack
1	BURNER ASSEMBLY 60 HZ. (TYPE 1)(WHITE RODGERS)
2	MAY 688617
3	MAY 694298
4	MAY 686590
5	MAY 3393909
6	SCREW
7	MAY 3389871
8	SCREW
9	Orifice, Burner (Type 4 (Butane))
9	Orifice, Burner (Type 4 (Propane))
9	ORIFICE, BURNER (TYPE 1 (NATURAL))
10	MAY W10118347
11	SCREW, COIL
12	MAY 694538
13	MAY 694540
14	COIL, 60 HZ (SPLIT) (3TERMINAL) (PILOT POSITION)
15	MAY 694424
16	MAY 694423
17	MAY 694422
18	SCREW
20	MAY 239822
25	MAY 3387561
26	MAY 3389889
