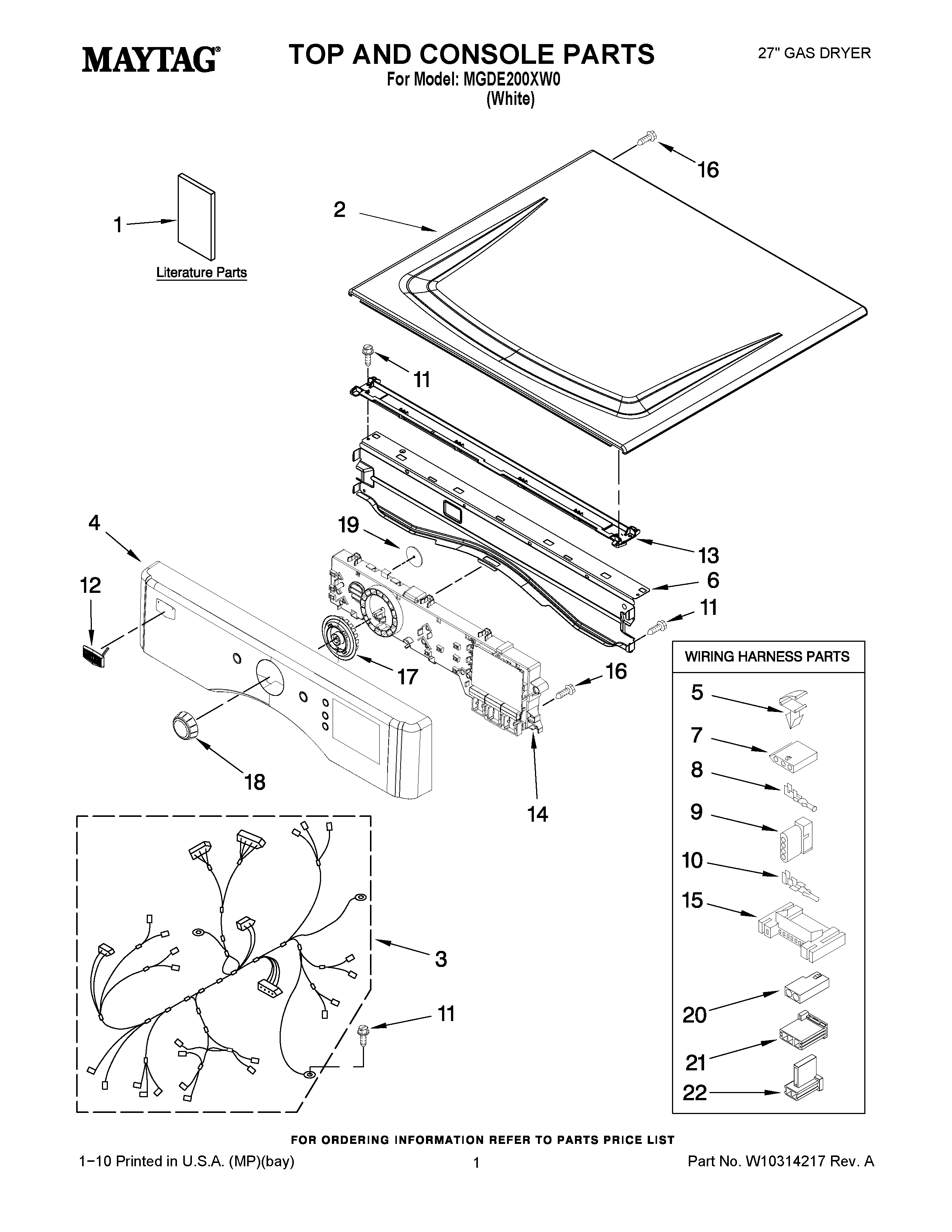

MGDE200XW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10240878
1	MAY W10286854
1	INSTALLATION, INSTRUCTION
2	Top
3	MAY W10251443
4	CONSOLE PANEL
5	CLIP, HARNESS
6	MAY 8565237
7	Connector Sensor
8	Terminal
9	MAY 3936144
10	Terminal
11	SCREW
12	MAY W10177245
13	CHANEL, WATER
14	USER INTERFACE, ASSEMBLY
15	CONNECTOR (MOTOR)
16	SCREW, TOP
17	MAY W10215797
18	MAY W10215799
19	SEAL, UI
20	Plug, 2-Way Terminal
21	MAY 3403498
22	CONNECTOR, 2-POSITION (GAS VALVE)
