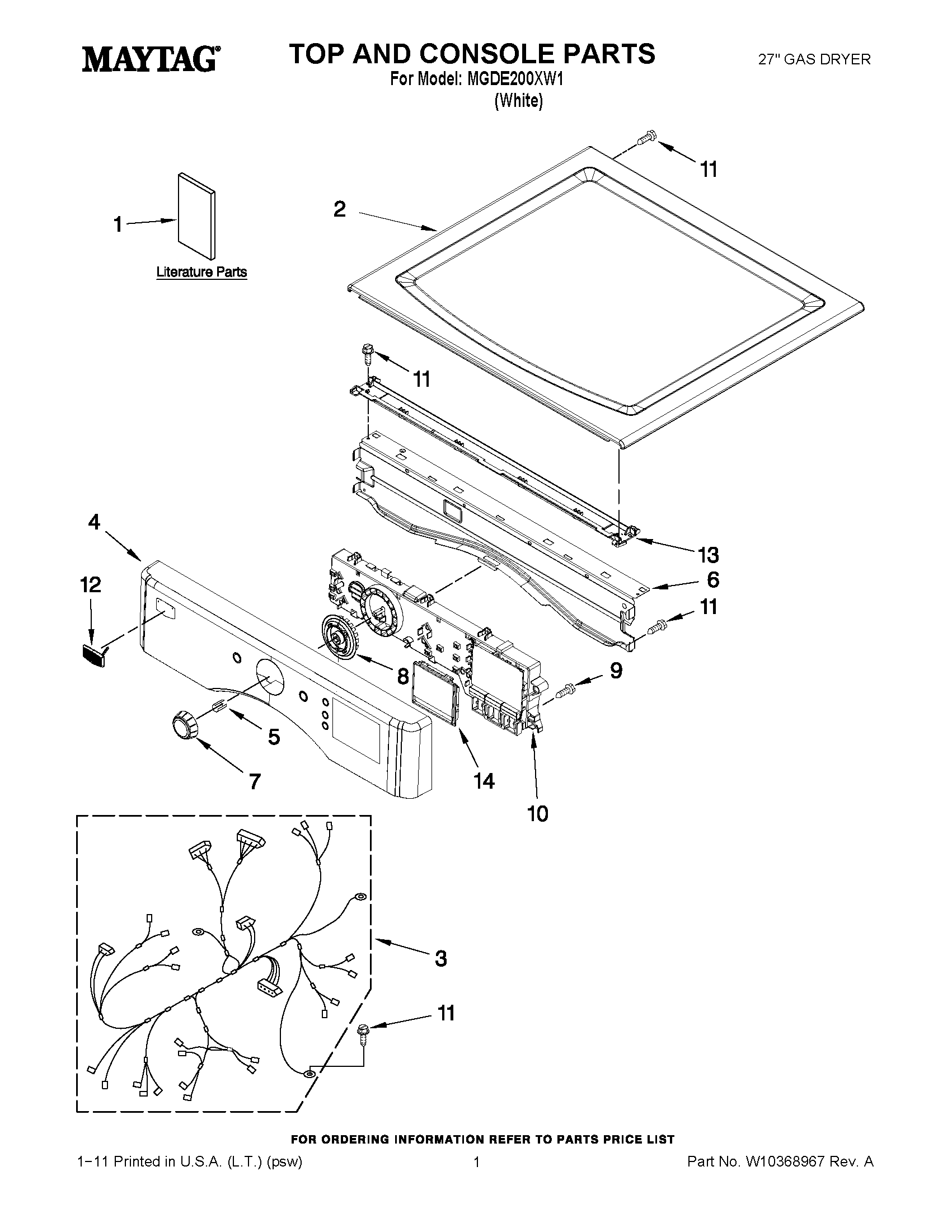

MGDE200XW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10240878
1MAY W10340328
1INSTALLATION, INSTRUCTION
2TOP (WHITE)
3MAY W10251443
4CONSOLE PANEL
5MAY 8542702
6MAY 8565237
7MAY W10215799
8MAY W10215797
9SCREW, TOP
10USER INTERFACE, ASSEMBLY
11SCREW
12BADGE (CHROME)
13CHANEL, WATER
14MAY W10215794
