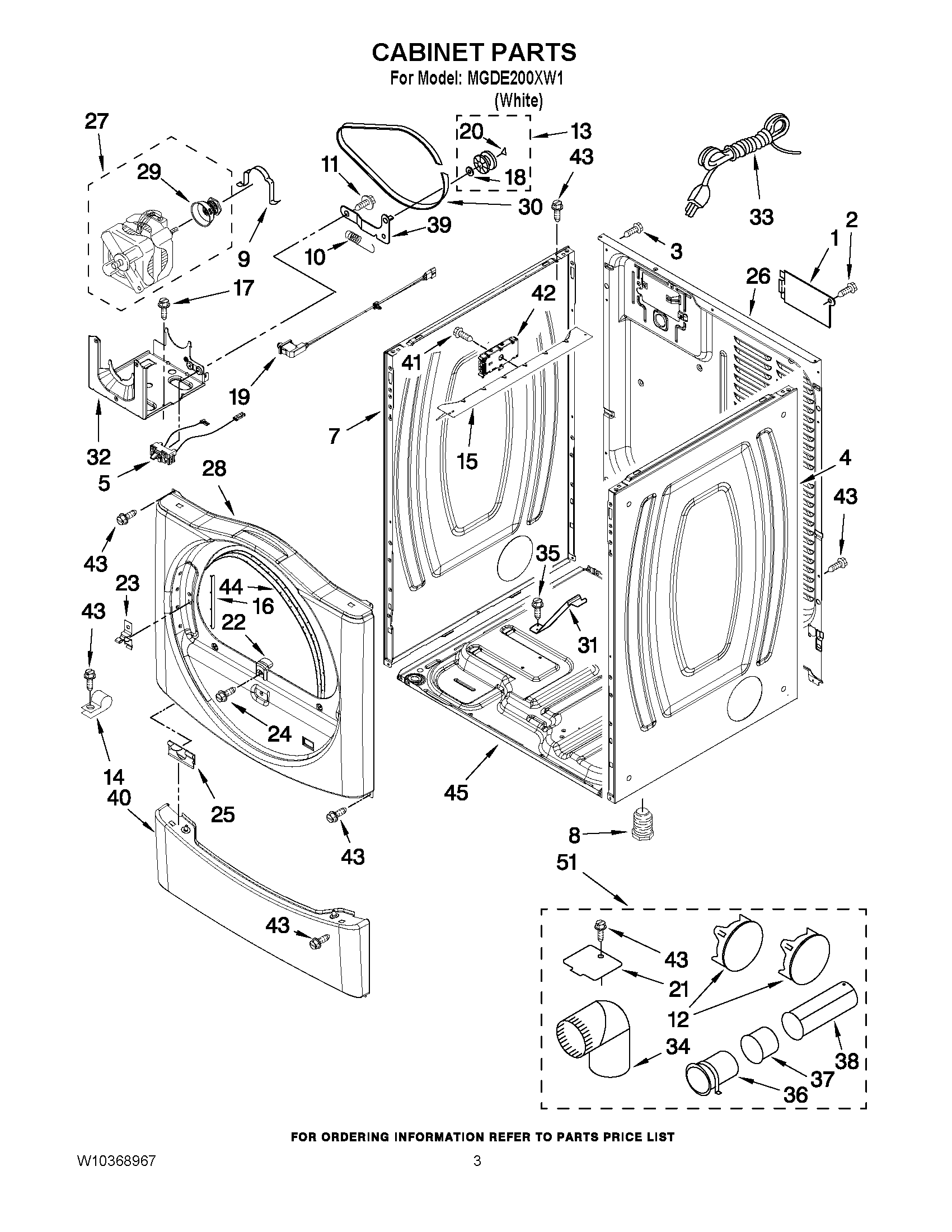

MGDE200XW1 02 – CABINET PARTS
Written by
in
MGDE200XW1 02 – CABINET PARTS
Products
Position
Product
NI
PLUG, MULTIVENT
NI
MAY 279810
1
MAY 8317340
2
Screw, 8-18 x 3/8
3
MAY 8533974
4
MAY 8565048
5
MAY W10246525
7
MAY 8565054
8
MAY 3392100
9
MAY 660658
10
MAY 3387374
11
SCREW
12
MAY 49252
13
ASSEMBLY, PULLEY
14
MAY 3978776
15
Bracket, Control
16
PLUG-STRIP FRONT PANEL
17
SCREW
18
MAY W10121334
19
DOOR SWITCH ASSEMBLY
20
WASHER, TRI RING
21
MAY 8066115
22
MAY 8565083
23
STRIKE, DOOR
24
SCREW
25
MAY 8519459
26
MAY 8565059
27
Motor Assembly 60 HZ.
28
MAY W10117421
29
Pulley 60 HZ.
30
MAY W10112954
31
MAY 8529757
32
MAY W10242878
33
MAY 3401401
34
MAY 49026
35
Screw
36
PIPE, EXHAUST (MEDIUM)
37
MAY 8563750
38
PIPE, EXHAUST (LONG)
39
MAY 3388674
40
MAY 8540621
41
MAY 8533971
42
MAY W10235613
43
SCREW
44
MAY 3387242
45
MAY 8565046
←
