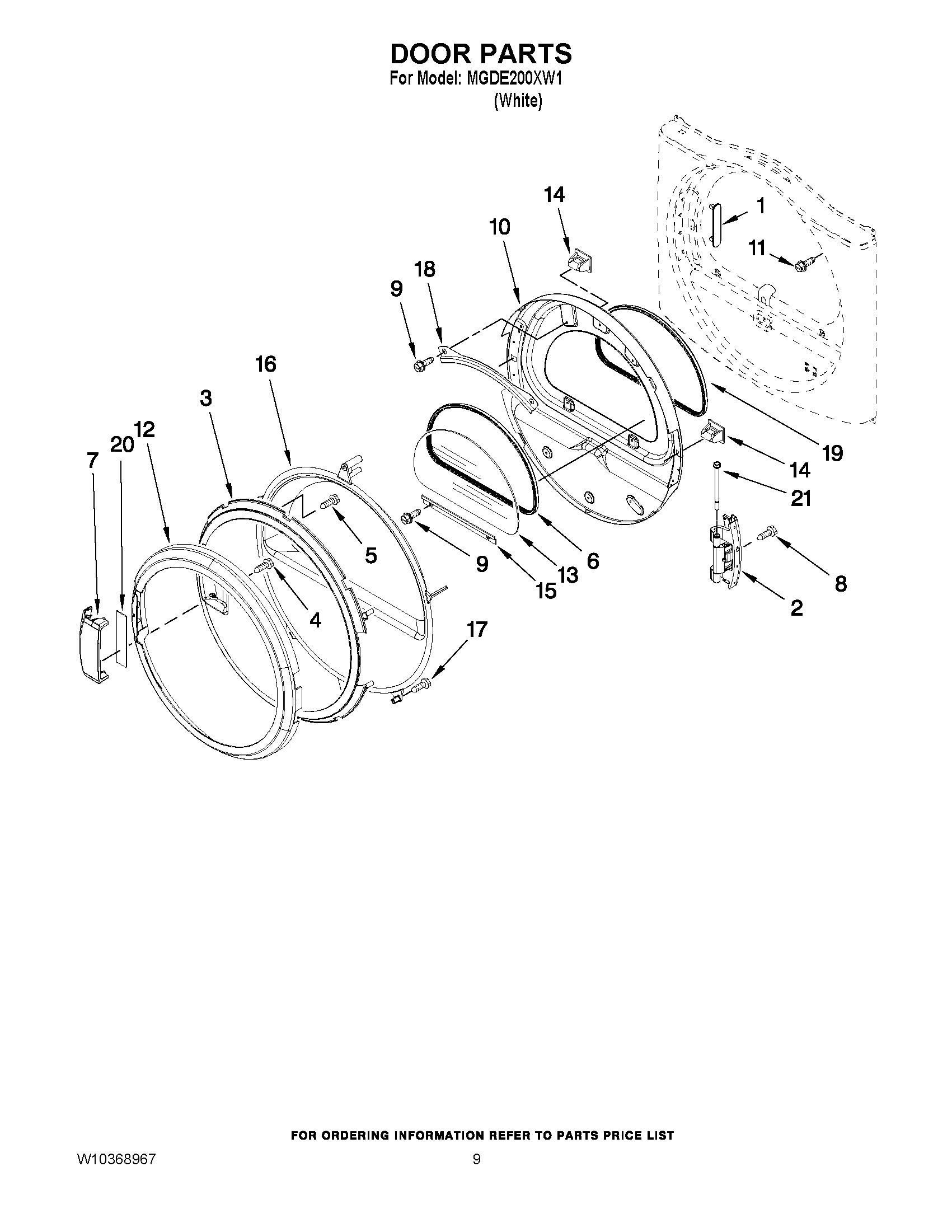

MGDE200XW1 05 – DOOR PARTS

Products

Position	Product
1	LABEL, HINGE HOLE COVER (INNER DOOR)
2	ASSEMBLY, DOOR HINGE
3	Door, Screen Intermediate Assy.
4	Screw
5	MAY 3400618
6	MAY 8579663
7	HANDLE, DOOR (INCLUDES ILLUS.19.)
8	SCREW
9	Screw, 10-16 x 1/2
10	MAY W10363674
11	MAY 355515
12	MAY W10253122
13	MAY W10286878
14	Catch, Door
15	MAY 8519354
16	DOOR,INTERMEDIATE
17	MAY 8534022
18	MAY 8519356
19	MAY W10163915
20	MAY W10112927
21	BOLT
