MGDE201YW0 02 – CABINET PARTS – Aparts

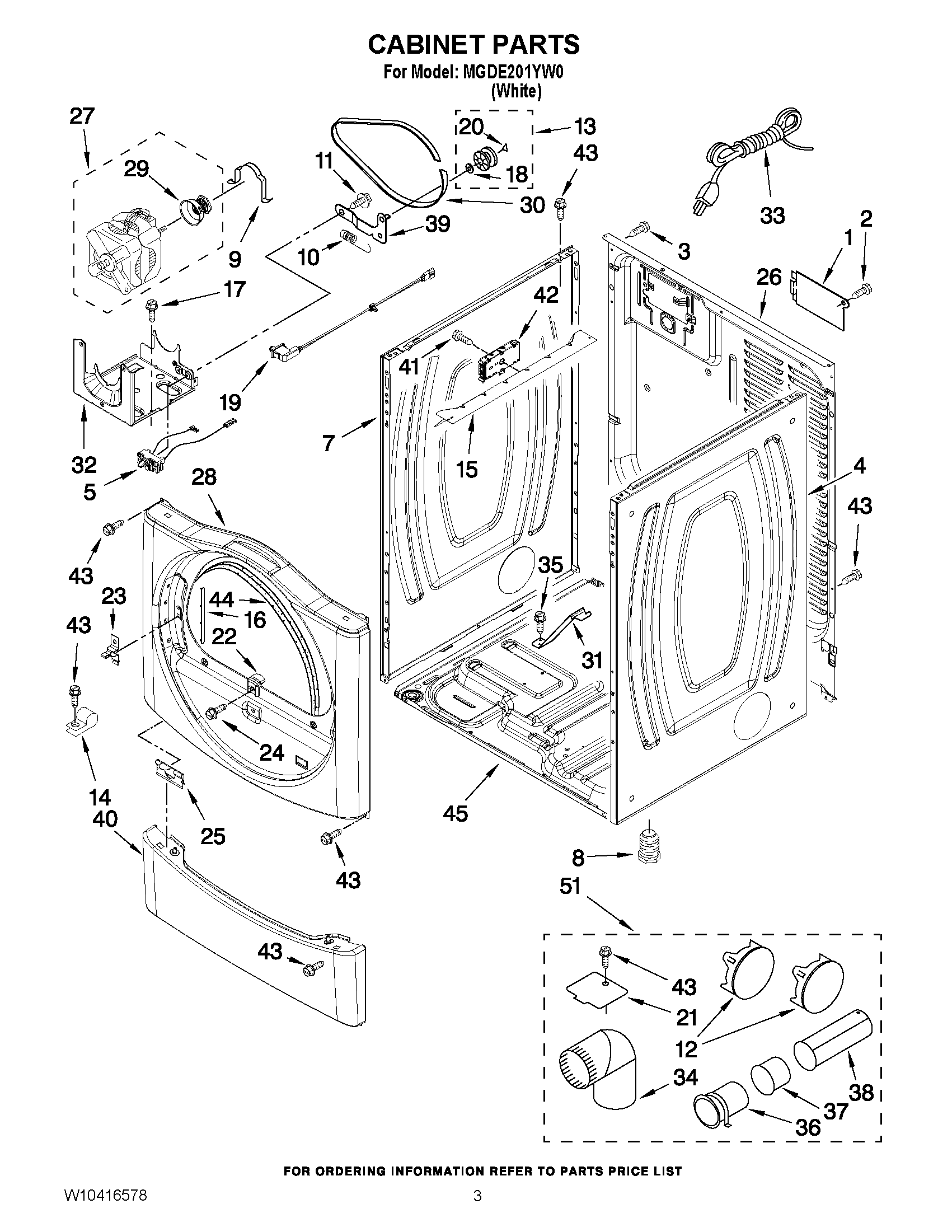

MGDE201YW0 02 – CABINET PARTS

Products

Position	Product
NI	PLUG, MULTIVENT
NI	MAY 279810
1	MAY 8317340
2	Screw, 8-18 x 3/8
3	MAY 8533974
4	MAY 8565048
5	MAY W10246525
7	MAY 8565054
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SCREW
12	MAY 49252
13	ASSEMBLY, PULLEY
14	MAY 3978776
15	Bracket, Control
16	PLUG-STRIP FRONT PANEL
17	SCREW
18	MAY W10121334
19	DOOR SWITCH ASSEMBLY
20	WASHER, TRI RING
21	MAY 8066115
22	MAY 8565083
23	STRIKE, DOOR
24	SCREW
25	MAY 8519459
26	MAY 8565059
27	Motor Assembly 60 HZ.
28	MAY W10117421
29	Pulley 60 HZ.
30	MAY W10112954
31	MAY 8529757
32	MAY W10242878
33	MAY 3401401
34	MAY 49026
35	Screw
36	PIPE, EXHAUST (MEDIUM)
37	MAY 8563750
38	PIPE, EXHAUST (LONG)
39	MAY 3388674
40	MAY 8540621
41	MAY 8533971
42	MAY W10286016
43	SCREW
44	MAY 3387242
45	MAY 8565046
