MGDE201YW1 02 – CABINET PARTS – Aparts

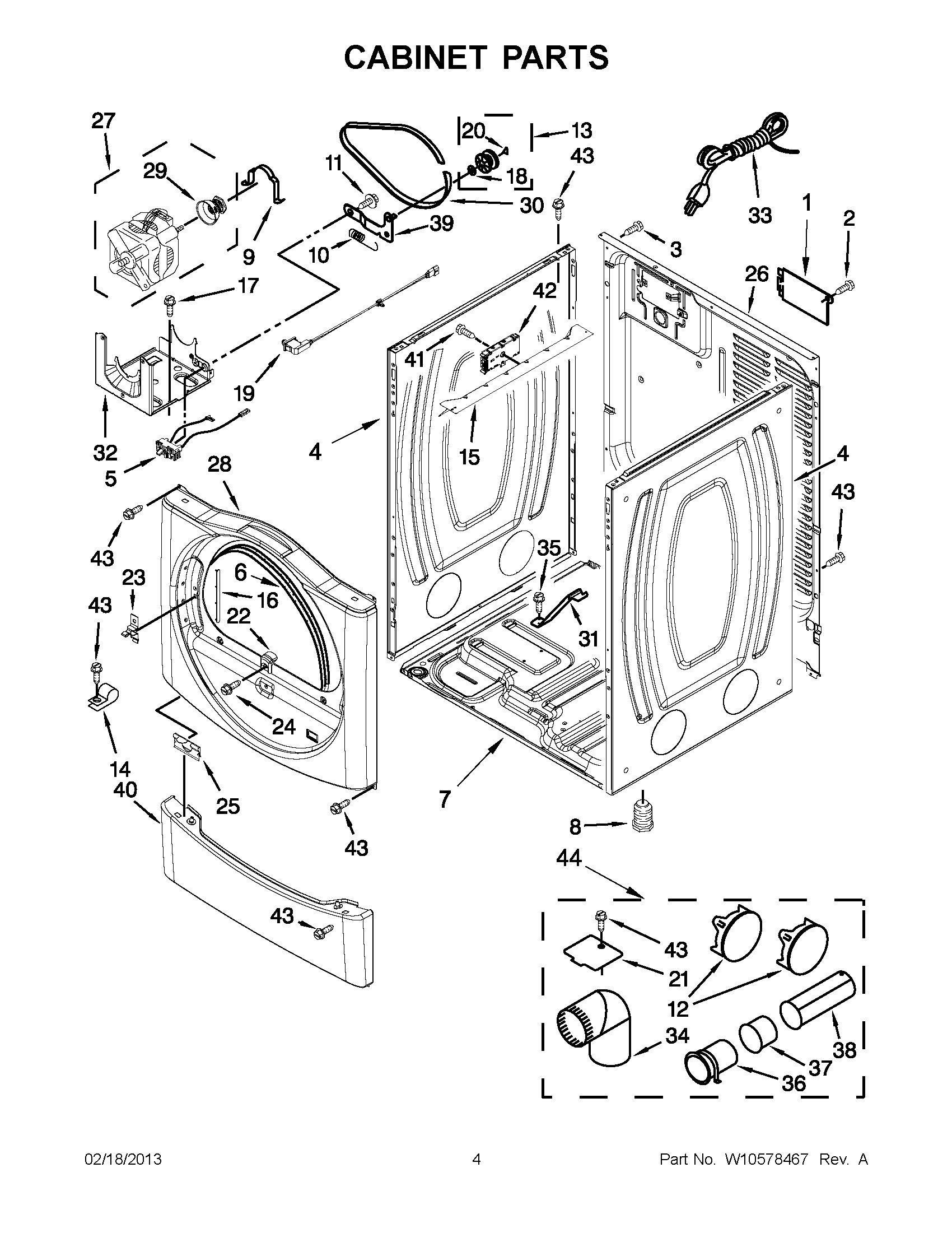

MGDE201YW1 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY 8317340
2	SCREW
3	MAY 8533974
4	MAY W10542714
5	MAY W10411936
6	MAY 3387242
7	MAY 8565046
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12	MAY 49252
13	MAY W10468057
14	MAY 3978776
15	Bracket, Control
16	PLUG-STRIP FRONT PANEL
17	SCREW
18	MAY W10121334
19	DOOR SWITCH ASSEMBLY
20	WASHER, TRI RING
21	MAY 8066115
22	MAY 8580015
23	STRIKE, DOOR
24	SCREW
25	MAY 8519459
26	MAY 8565059
27	MAY W10317045
28	MAY W10549665
29	MAY W10402907
30	MAY W10112954
31	MAY 8529757
32	MAY W10242878
33	MAY W10440461
34	MAY 49026
35	Screw
36	PIPE, EXHAUST (MEDIUM)
37	MAY 8563750
38	PIPE, EXHAUST (LONG)
39	ASSEMBLY, IDLER
40	MAY 8540621
41	MAY 8533971
42	MAY W10450081
43	SCREW
44	PLUG, MULTIVENT
