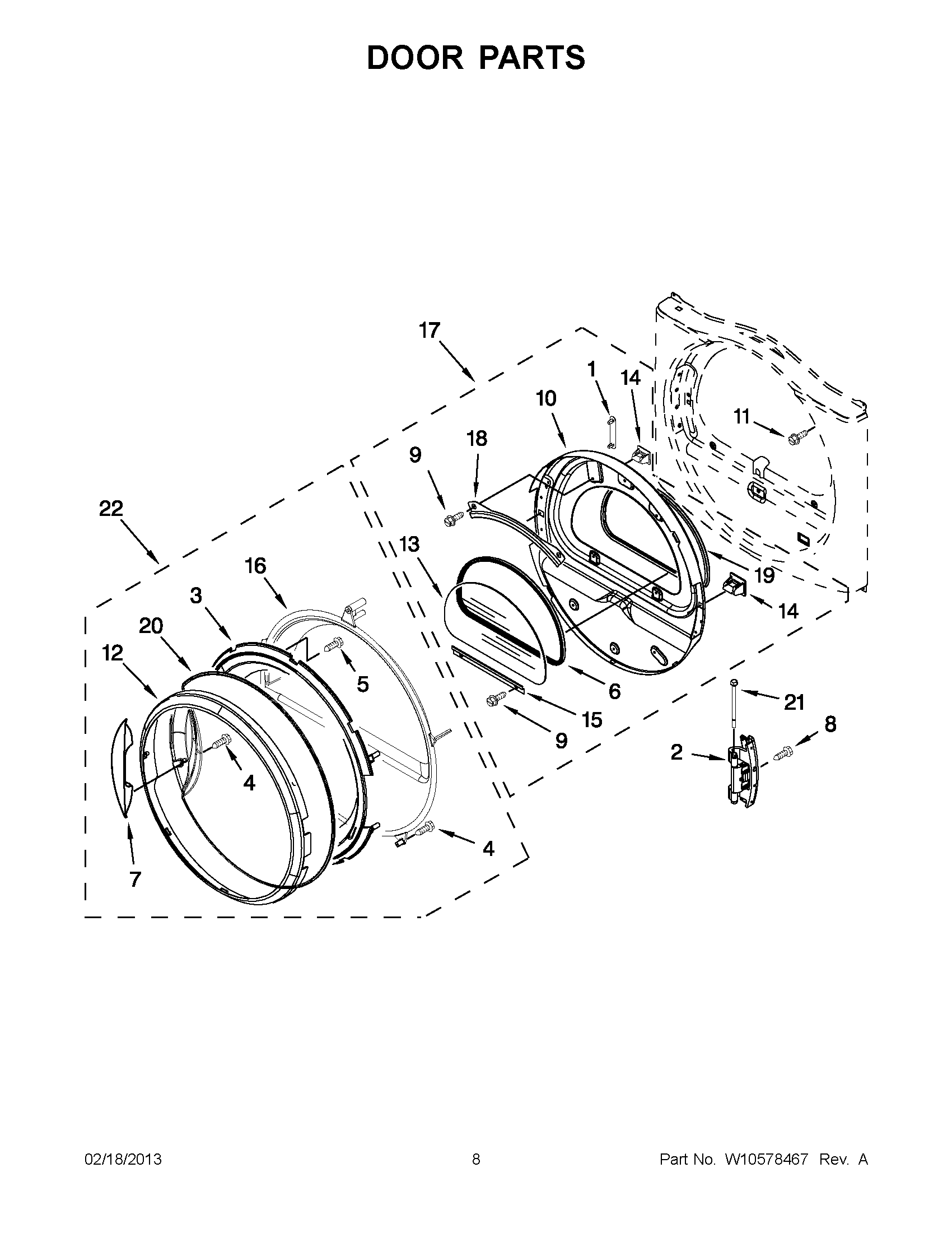

MGDE201YW1 04 – DOOR PARTS

Products

Position	Product
1	LABEL, HINGE HOLE COVER (INNER DOOR)
2	DOOR HINGE ASSEMBLY
3	LINER (NOT A SERVICEABLE PART)
4	Screw
5	MAY 3400618
6	MAY 8579663
7	MAY W10165344
8	SCREW
9	Screw, 10-16 x 1/2
10	MAY W10363674
11	MAY 355515
12	MAY 8565110
13	MAY W10286878
14	Catch, Door
15	MAY 8519354
16	DOOR,INTERMEDIATE
17	INNER DOOR ASSEMBLY
18	MAY 8519356
19	MAY W10163915
20	DOOR SCREEN
21	BOLT
22	MAY W10371563
