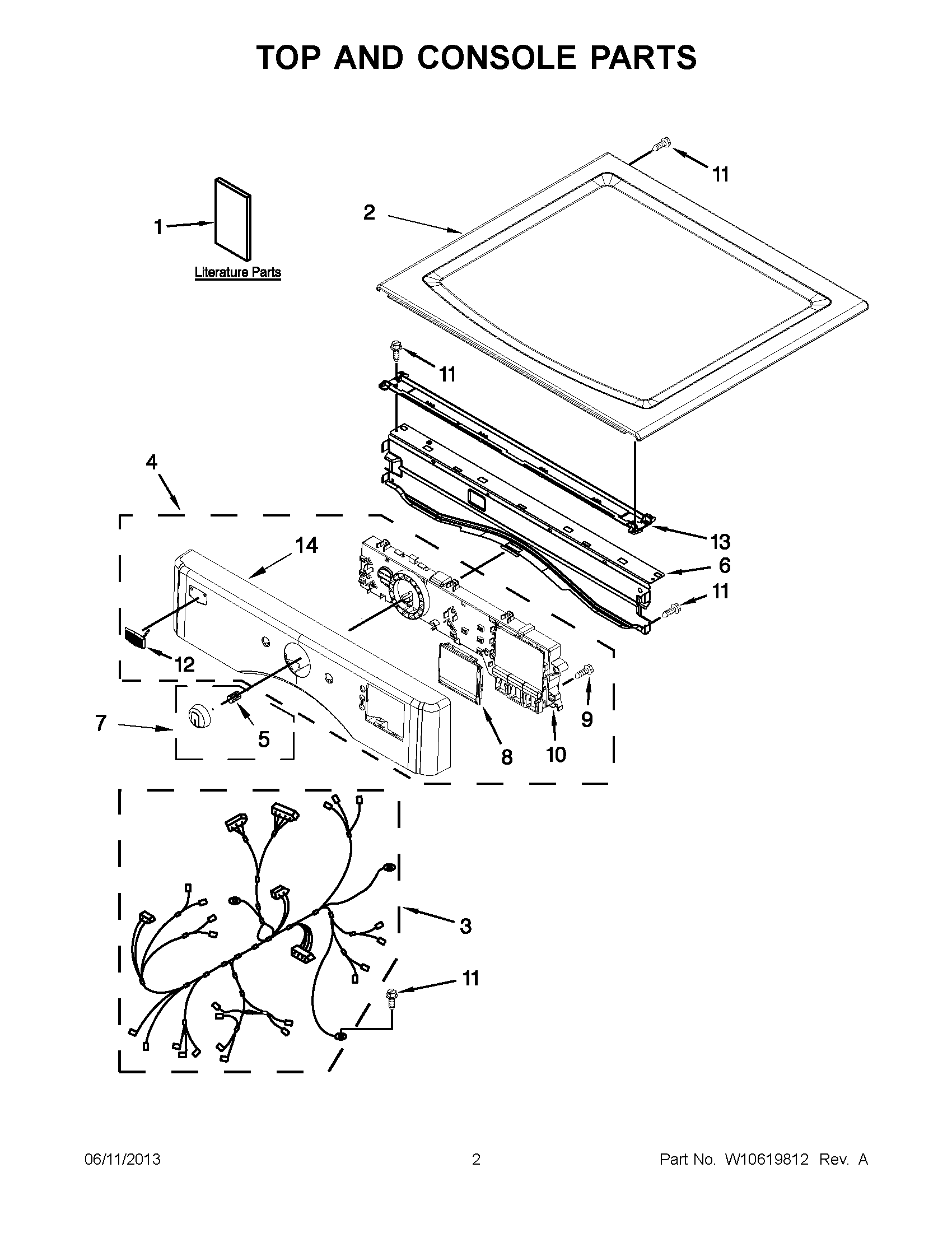

MGDE201YW2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1HEATER BOX
1MAY W10443109
1MAY W10443045
2TOP (WHITE)
3MAY W10555103
4CONSOLE PANEL, ASSEMBLY
5CLIP, SPRING
6MAY 8565237
7MAY W10251381
8MAY W10215794
9SCREW, TOP
10USER INTERFACE ASSEMBLY
11SCREW
12BADGE (CHROME)
13CHANEL, WATER
14CONSOLE PANEL
