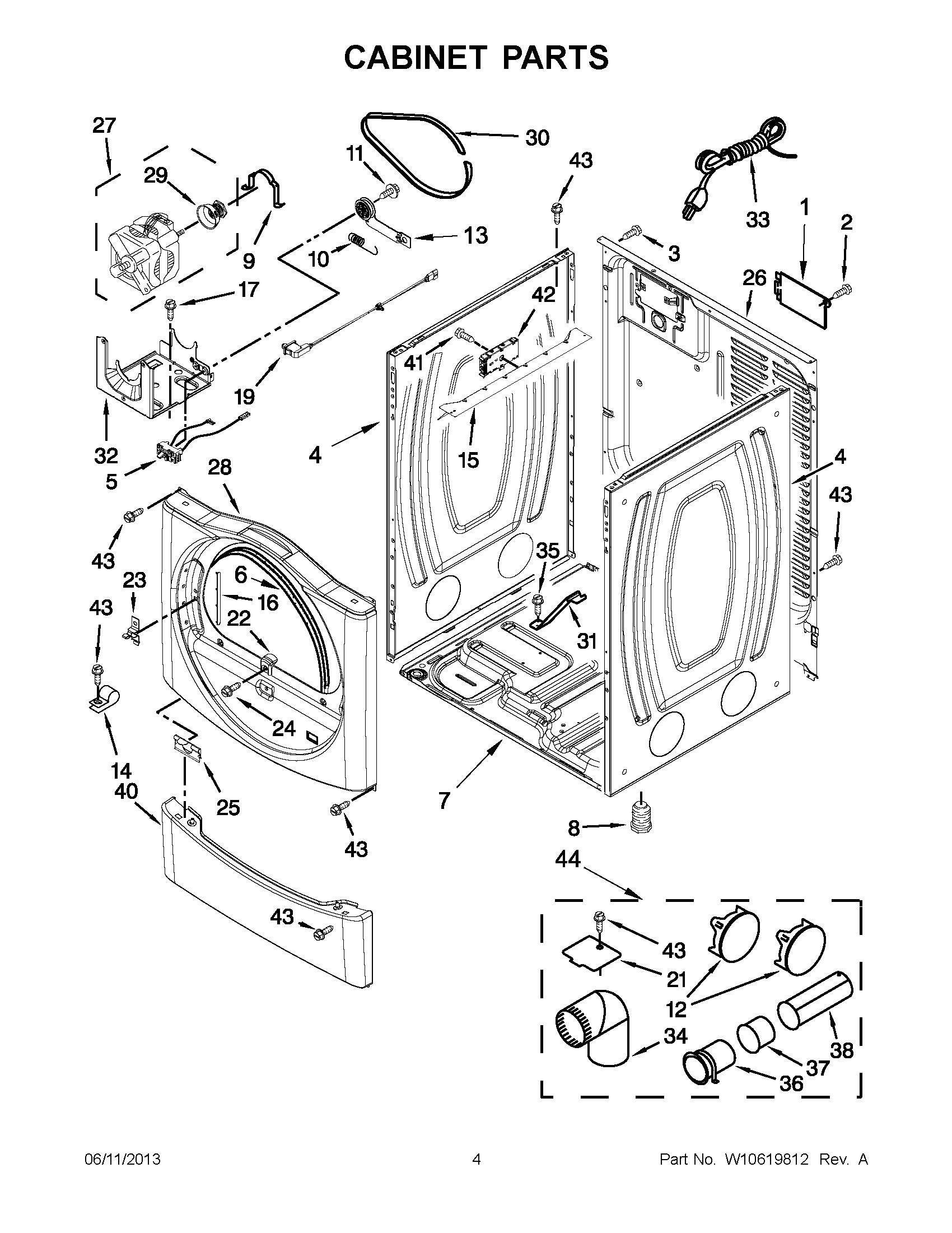

MGDE201YW2 02 – CABINET PARTS
Written by
in
MGDE201YW2 02 – CABINET PARTS
Products
Position
Product
NI
MAY 279810
1
MAY 8317340
2
SCREW
3
MAY 8533974
4
MAY W10542714
5
MAY W10411936
6
MAY 3387242
7
MAY 8565046
8
MAY 3392100
9
CLAMP, MOTOR MOUNT
10
MAY W10446781
11
SCREW
12
MAY 49252
13
ASSEMBLY, IDLER
14
MAY 3978776
15
Bracket, Control
16
PLUG-STRIP FRONT PANEL
17
SCREW
19
DOOR SWITCH ASSEMBLY
21
MAY 8066115
22
MAY 8580015
23
STRIKE, DOOR
24
SCREW
25
MAY 8519459
26
MAY 8565059
27
MAY W10317045
28
MAY W10549665
29
MAY W10402907
30
MAY W10112954
31
MAY 8529757
32
MAY W10242878
33
MAY W10440461
34
MAY 49026
35
Screw
36
PIPE, EXHAUST (MEDIUM)
37
MAY 8563750
38
PIPE, EXHAUST (LONG)
40
MAY 8540621
41
MAY 8533971
42
MAY W10450081
43
SCREW
44
PLUG, MULTIVENT
←
