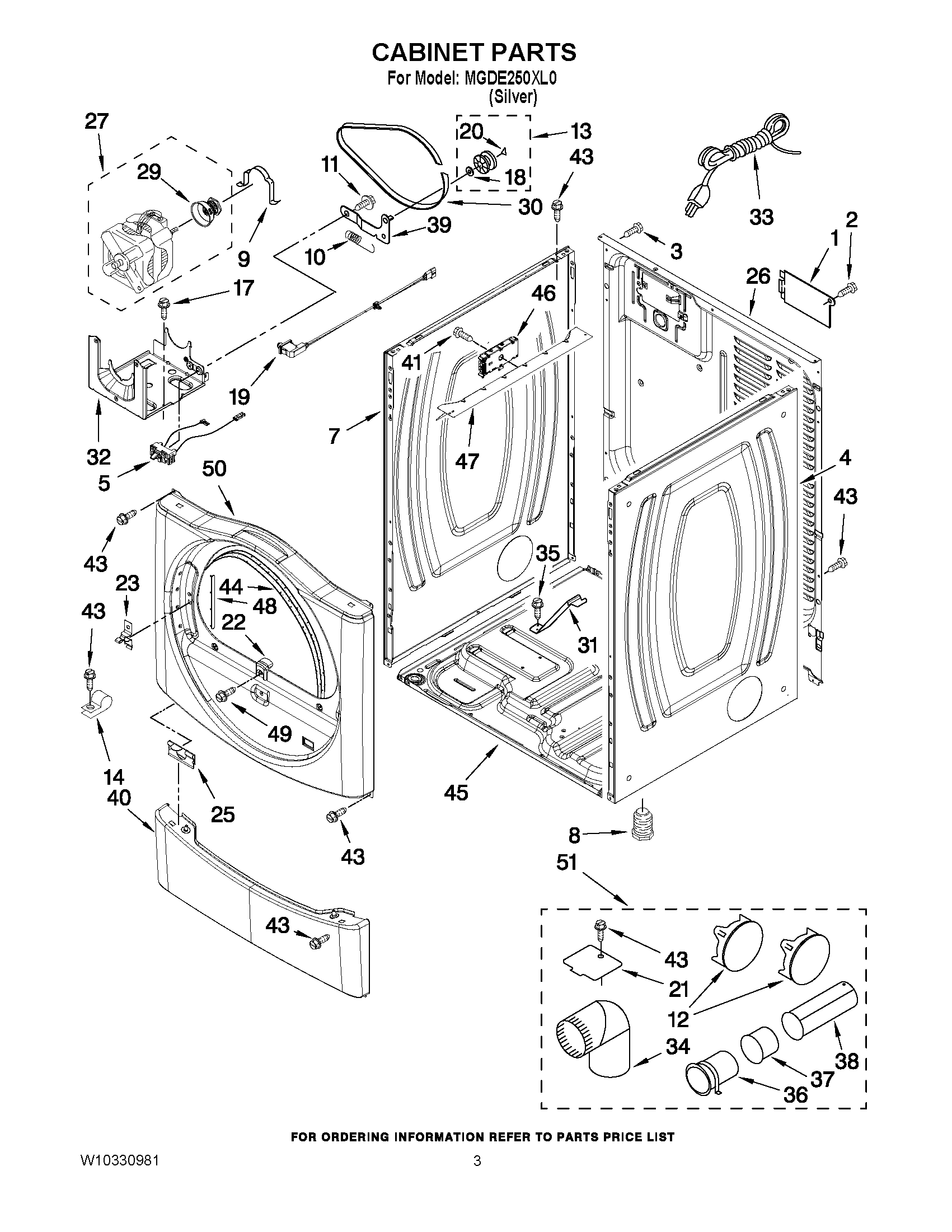

MGDE250XL0 02 – CABINET PARTSadmin2025-04-26T11:32:35+00:00MGDE250XL0 02 – CABINET PARTS
Products
| Position | Product |
|---|
| NI | MAY 279818 |
| NI | MAY 279810 |
| 1 | MAY 8317340 |
| 2 | Screw, 8-18 x 3/8 |
| 3 | MAY 8533974 |
| 4 | PANEL, SIDE (R.H.) |
| 5 | MAY W10246525 |
| 7 | PANEL, SIDE (L.H.) |
| 8 | MAY 3392100 |
| 9 | MAY 660658 |
| 10 | MAY 3387374 |
| 11 | SCREW |
| 12 | MAY 49252 |
| 13 | ASSEMBLY, PULLEY |
| 14 | MAY 3978776 |
| 17 | SCREW |
| 18 | MAY W10121334 |
| 19 | SWITCH, ASSEMBLY DOOR |
| 20 | WASHER, TRI RING |
| 21 | MAY 8066115 |
| 22 | MAY 8565083 |
| 23 | STRIKE, DOOR |
| 25 | MAY 8519459 |
| 26 | MAY 8565059 |
| 27 | Motor Assembly 60 HZ. |
| 29 | Pulley 60 HZ. |
| 30 | MAY W10112954 |
| 31 | MAY 8529757 |
| 32 | MAY W10242878 |
| 33 | MAY 3401401 |
| 34 | MAY 49026 |
| 35 | Screw |
| 36 | PIPE, EXHAUST (MEDIUM) |
| 37 | MAY 8563750 |
| 38 | PIPE, EXHAUST (LONG) |
| 39 | MAY 3388674 |
| 40 | TOE PANEL |
| 41 | MAY 8533971 |
| 43 | SCREW |
| 44 | MAY 3387242 |
| 45 | MAY 8565046 |
| 46 | MAY W10235613 |
| 47 | Bracket, Control |
| 48 | MAY W10085230 |
| 49 | SCREW |
| 50 | MAY W10325339 |
