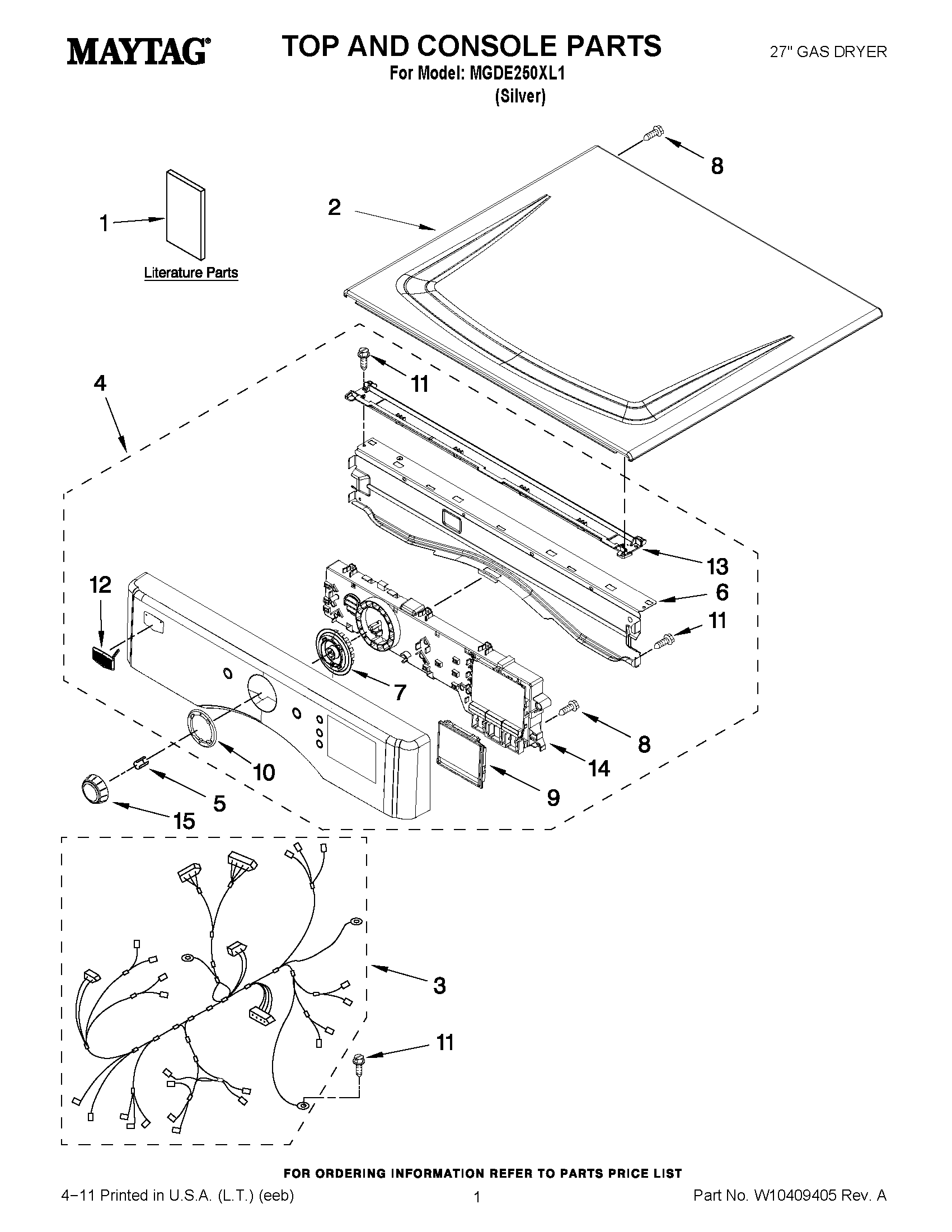

MGDE250XL1 01 – TOP AND CONSOLE PARTS

MGDE250XL1 01 – TOP AND CONSOLE PARTS

Written by

in

MGDE250XL1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION, INSTRUCTION
1MAY W10340328
1MAY W10240878
2MAY W10336091
3MAY W10251443
4PANEL, CONSOLE (INCLUDES ILLUS. 9,10,12 & 14)
5MAY 8542702
6MAY 8565237
7MAY W10215797
8SCREW, TOP
9MAY W10215794
10MAY W10325706
11SCREW
12BADGE (CHROME)
13CHANEL, WATER
14USER INTERFACE, ASSEMBLY
15MAY W10215799
