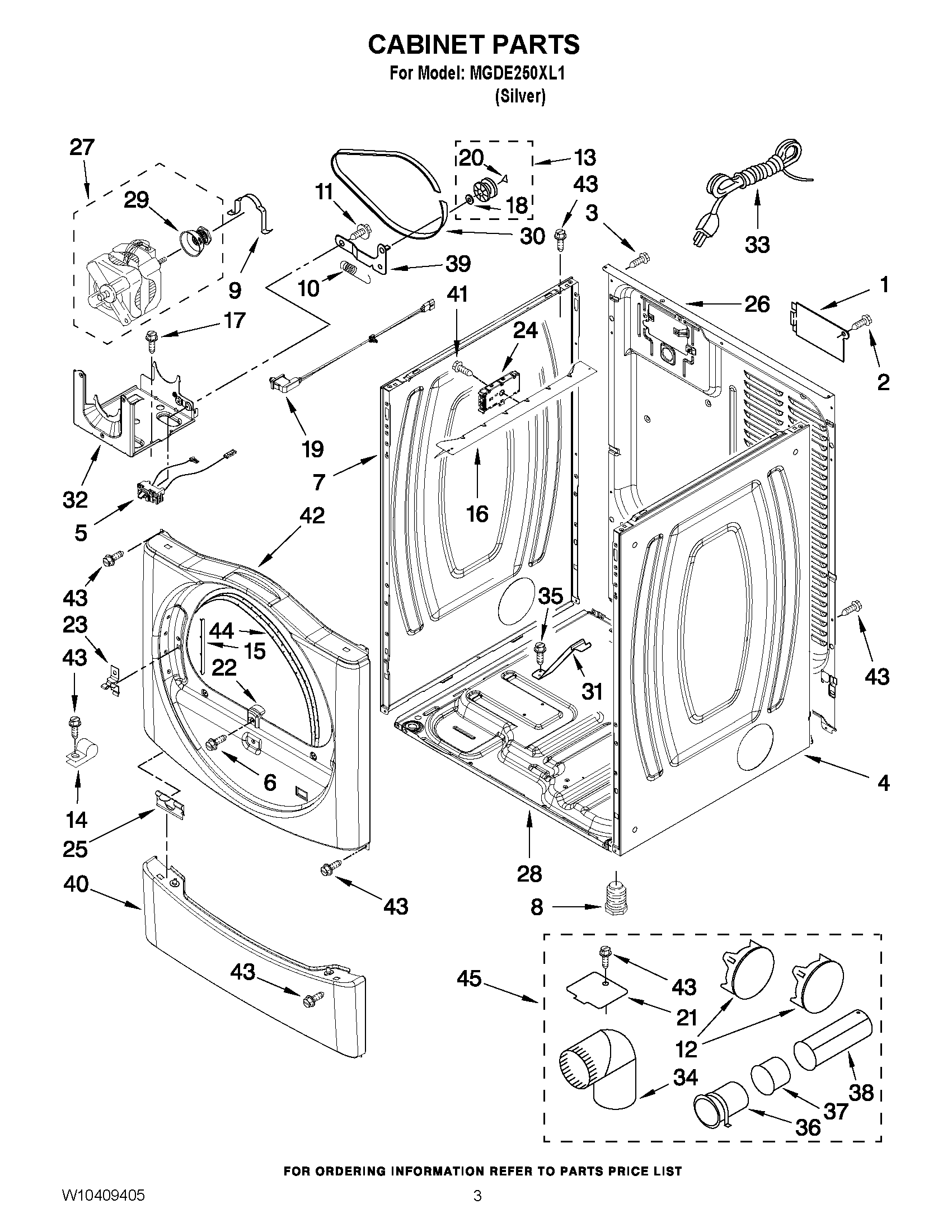

MGDE250XL1 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
NI	PLUG, MULTIVENT
1	MAY 8317340
2	Screw, 8-18 x 3/8
3	MAY 8533974
4	PANEL, SIDE (R.H.)
5	MAY W10246525
6	SCREW
7	PANEL, SIDE (L.H.)
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SCREW
12	MAY 49252
13	ASSEMBLY, PULLEY
14	MAY 3978776
15	MAY W10085230
16	Bracket, Control
17	SCREW
18	MAY W10121334
19	DOOR SWITCH ASSEMBLY
20	WASHER, TRI RING
21	MAY 8066115
22	MAY 8565083
23	STRIKE, DOOR
24	MAY W10235613
25	MAY 8519459
26	MAY 8565059
27	Motor Assembly 60 HZ.
28	MAY 8565046
29	Pulley 60 HZ.
30	MAY W10112954
31	MAY 8529757
32	MAY W10242878
33	MAY 3401401
34	MAY 49026
35	Screw
36	PIPE, EXHAUST (MEDIUM)
37	MAY 8563750
38	PIPE, EXHAUST (LONG)
39	MAY 3388674
40	TOE PANEL
41	MAY 8533971
42	MAY W10325339
43	SCREW
44	MAY 3387242
