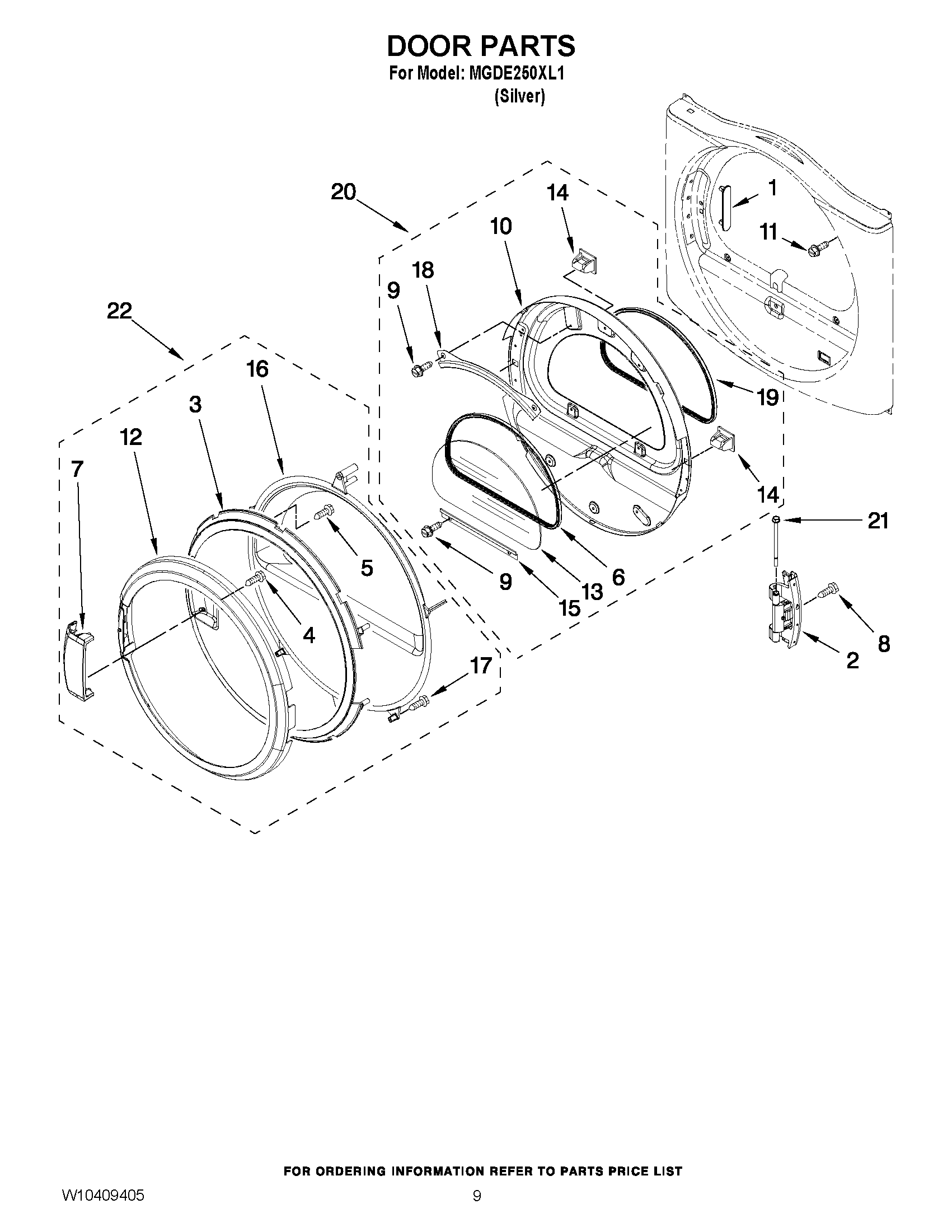

MGDE250XL1 05 – DOOR PARTS

Products

PositionProduct
1LABEL, HINGE HOLE COVER (INNER DOOR)
2DOOR HINGE ASSEMBLY
3Door, Screen Intermediate Assy.
4Screw
5MAY 3400618
6MAY 8579663
7MAY W10112977
8SCREW
9Screw, 10-16 x 1/2
10MAY W10363674
11MAY 355515
12MAY W10155392
13MAY W10286878
14Catch, Door
15MAY 8519354
16DOOR,INTERMEDIATE
17MAY 8534022
18MAY 8519356
19MAY W10163915
20DOOR ASSEMBLY (INNER) (INCLUDES ILLUS. 1 & 14 )
21BOLT
22MAY W10155393
