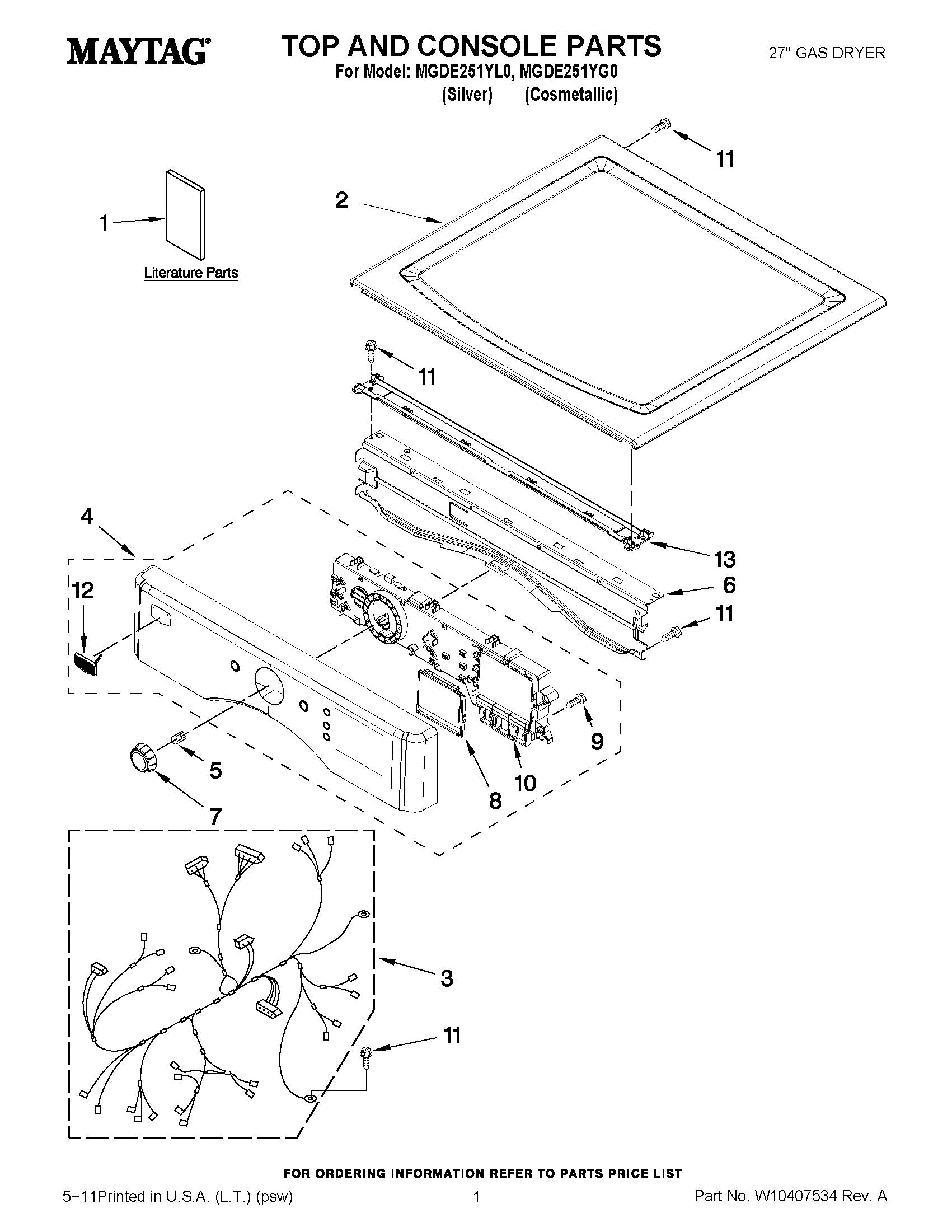

MGDE251YG0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10386307
1	HEATER BOX
1	INSTALLATION, INSTRUCTION
2	MAY W10336091
2	MAY W10376730
3	MAY W10251443
4	CONSOLE ASSEMBLY (SILVER)
4	MAY W10385001
5	CLIP, SPRING
6	MAY 8565237
7	KNOB, CONTROL (CHROME)
8	MAY W10215794
9	SCREW, TOP
10	USER INTERFACE ASSEMBLY
11	SCREW
12	BADGE (CHROME)
13	CHANEL, WATER
