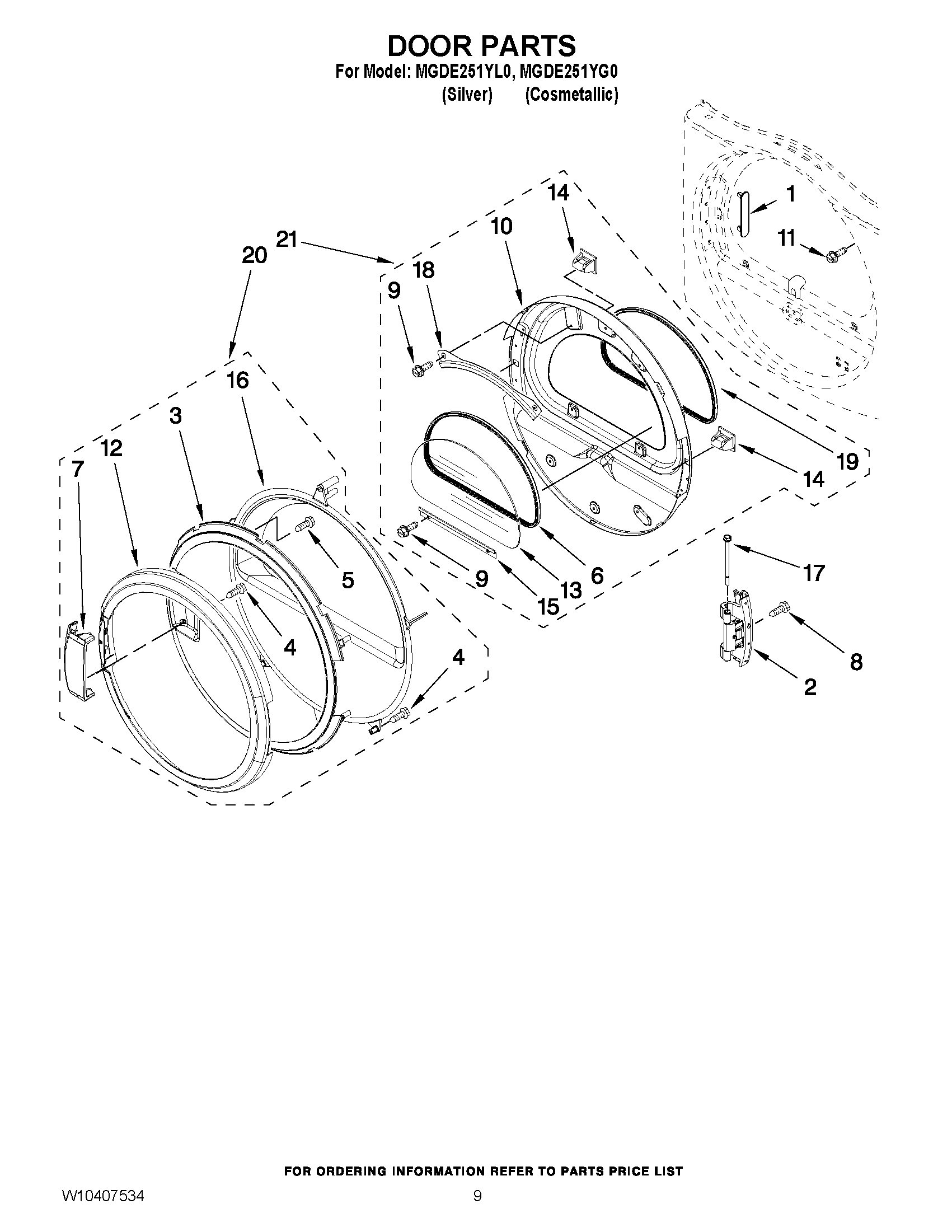

MGDE251YG0 05 – DOOR PARTSadmin2025-04-26T11:30:48+00:00MGDE251YG0 05 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | LABEL, HINGE HOLE COVER (INNER DOOR) |
| 2 | ASSEMBLY, DOOR HINGE |
| 3 | DOOR, SCREEN INTERMEDIATE ASSY. |
| 4 | Screw |
| 5 | MAY 3400618 |
| 6 | MAY 8579663 |
| 7 | HANDLE, DOOR (CHROME) |
| 8 | SCREW |
| 9 | Screw, 10-16 x 1/2 |
| 10 | MAY W10363674 |
| 11 | MAY 355515 |
| 12 | TRIM RING, OUTER DOOR (CHROME) |
| 13 | MAY W10286878 |
| 14 | Catch, Door |
| 15 | MAY 8519354 |
| 16 | DOOR,INTERMEDIATE |
| 17 | BOLT |
| 18 | MAY 8519356 |
| 19 | MAY W10163915 |
| 20 | DOOR, FRONT (CHROME) |
| 21 | DOOR ASSEMBLY (INNER) (INCLUDES, ITEM. 1 & 14 ) |
