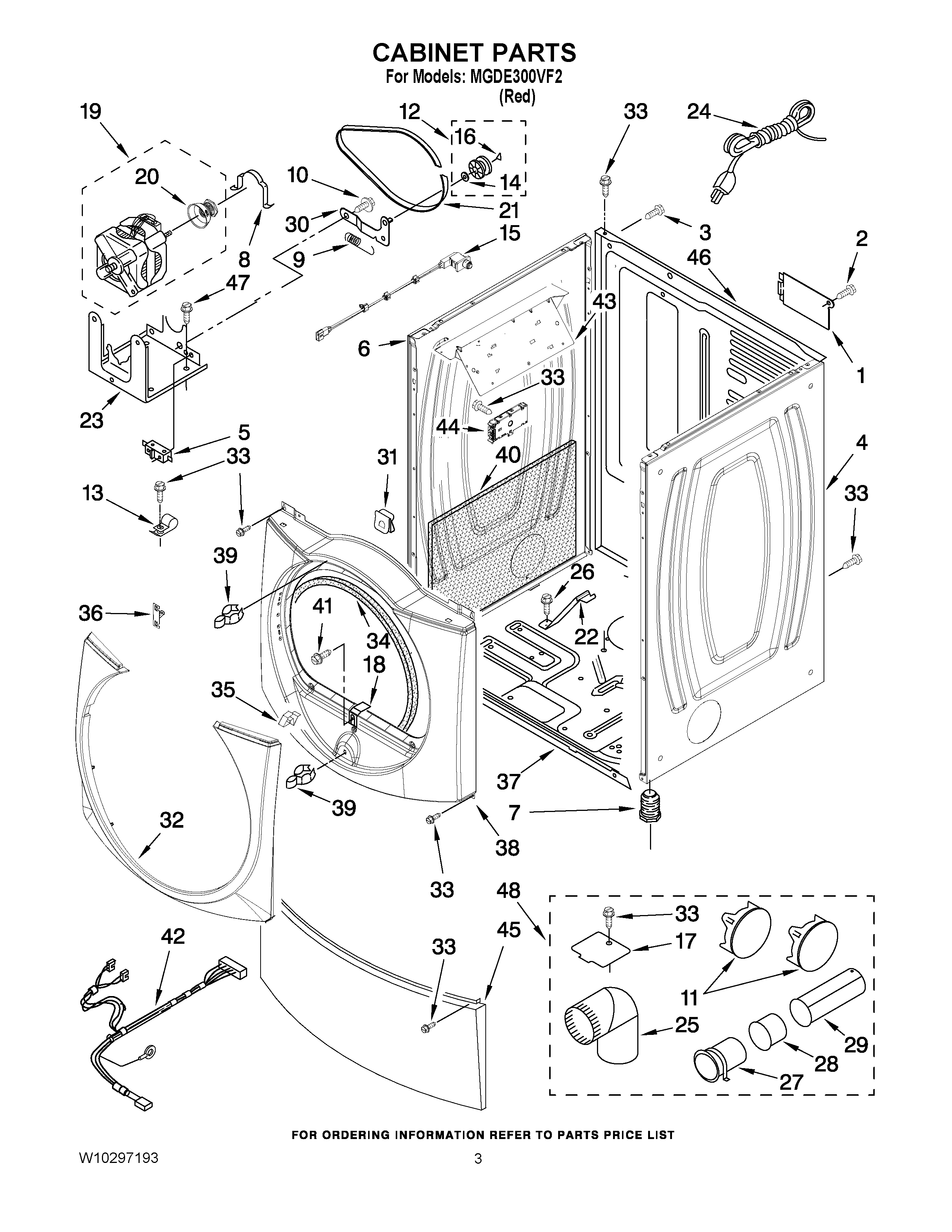

MGDE300VF2 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY 8317340
2	Screw, 8-18 x 3/8
3	MAY 8533974
4	MAY W10193957
5	MAY W10246525
6	MAY W10193954
7	MAY 3392100
8	MAY 660658
9	MAY 3387374
10	SCREW
11	MAY 49252
12	ASSEMBLY, PULLEY
13	MAY 3978776
14	MAY W10121334
15	SWITCH, ASSEMBLY DOOR
16	WASHER, TRI RING
17	MAY 8066115
18	MAY 8529053
19	Motor Assembly 60 HZ.
20	Pulley 60 HZ.
21	MAY W10112954
22	MAY 8529757
23	MAY W10242878
24	MAY 3401401
25	MAY 49026
26	Screw
27	PIPE, EXHAUST (MEDIUM)
28	MAY 8563750
29	PIPE, EXHAUST (LONG)
30	MAY 3388674
31	Clip, S-Type (3)
32	TRIM-RING ASSEMBLY (INCLUDE, ITEM. 48 ) (RED)
33	SCREW
34	MAY 3387242
35	MAY 8519459
36	Trim-Clip Metal
37	MAY W10273475
38	FRONT PANEL (INCLUDES, ITEM. 44 ) (RED)
39	MAY 696144
40	MAY W10123956
41	SCREW
42	MAY W10242903
43	Bracket, Control
44	CONTROL BOARD
45	PANEL, TOE (RED)
46	MAY W10244141
47	SCREW
48	MAY 279818
48	DRYER EXHAUST KIT (FOR SIDE & BOTTOMVENTING) (MIDNIGHT GREY)
