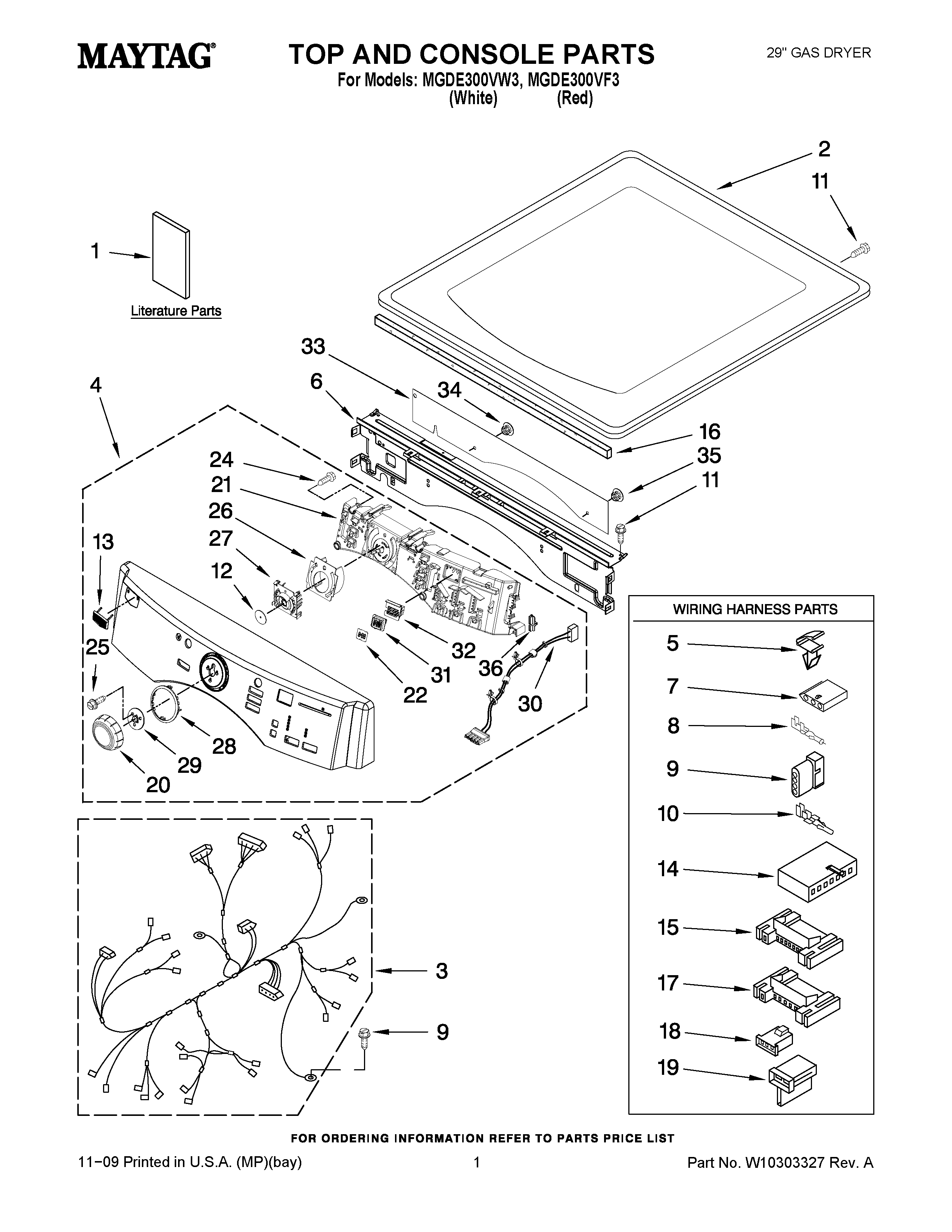

MGDE300VF3 01 – TOP AND CONSOLE PARTSadmin2025-04-26T11:29:27+00:00MGDE300VF3 01 – TOP AND CONSOLE PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10239302 |
| 1 | INSTALLATION, DIAGNOSTIC GUIDE |
| 1 | MAY W10258377 |
| 2 | MAY 3980634 |
| 3 | MAY W10111062 |
| 4 | MAY W10246748 |
| 4 | MAY W10292612 |
| 5 | CLIP, HARNESS |
| 6 | BRACKET, CONSOLE (INCLUDE, ITEM. 12 ) |
| 7 | Connector Sensor |
| 8 | Terminal |
| 9 | MAY 3936144 |
| 10 | Terminal |
| 11 | SCREW |
| 12 | SEAL, UI |
| 13 | MAY W10177245 |
| 14 | MAY 3936150 |
| 15 | CONNECTOR (MOTOR) |
| 16 | Seal, Foam Console Bracket |
| 17 | MAY 2203186 |
| 18 | MAY 3403498 |
| 19 | CONNECTOR, 2-POSITION (GAS VALVE) |
| 20 | MAY W10164576 |
| 21 | MAY W10283492 |
| 22 | MAY W10171504 |
| 24 | MAY 8540282 |
| 25 | MAY 8540513 |
| 26 | MAY W10170295 |
| 27 | MAY W10170293 |
| 28 | MAY W10164567 |
| 29 | MAY W10172298 |
| 30 | MAY W10242907 |
| 31 | MAY W10164578 |
| 32 | Frame-Light (Guide Display) |
| 33 | MAY W10215674 |
| 34 | PLUG-HOLE, 1/4`` |
| 35 | PLUG-HOLE, 5/16`` |
| 36 | PLUG, CONNECTOR FRAME |
