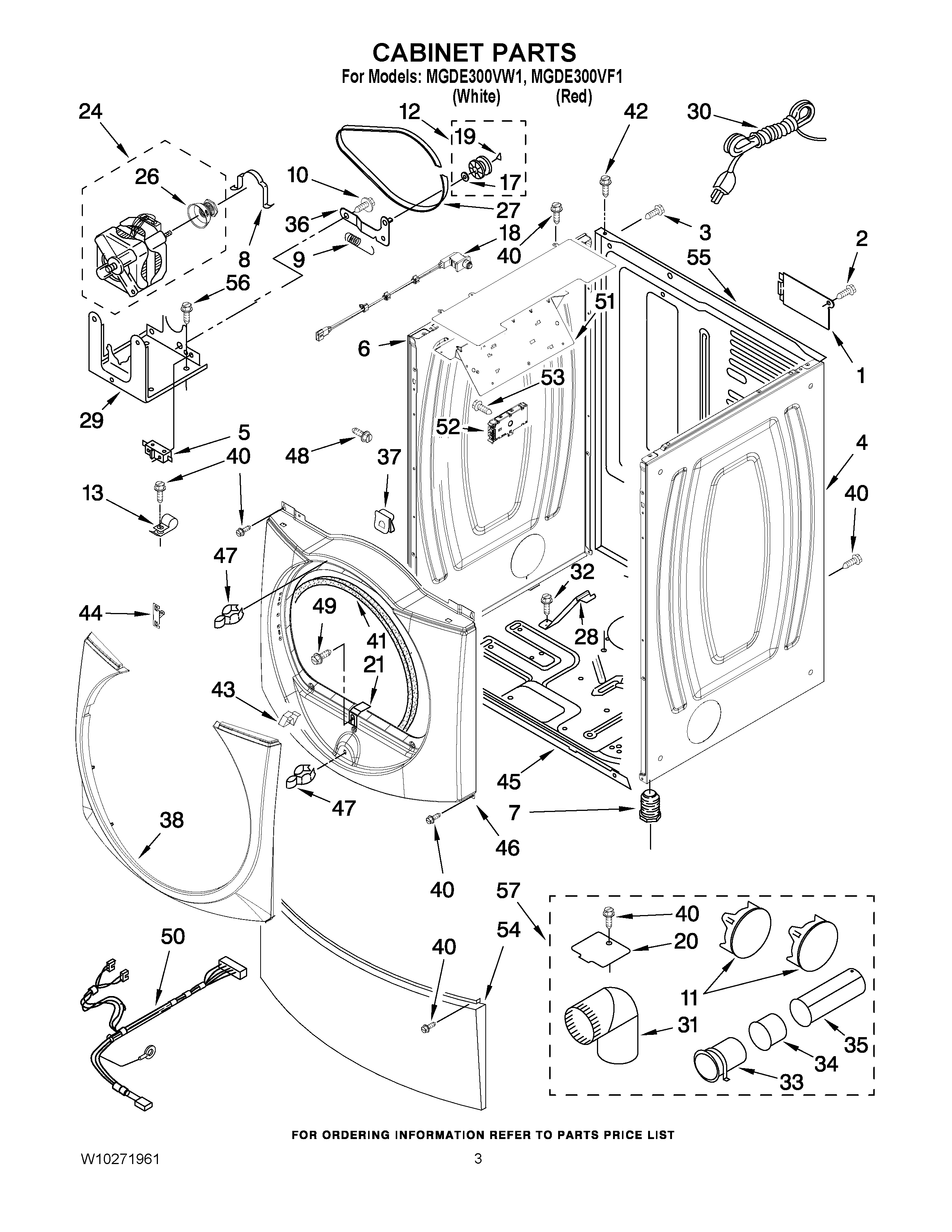

MGDE300VW1 02 – CABINET PARTSadmin2025-04-26T11:30:19+00:00MGDE300VW1 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY 8317340 |
| 2 | Screw, 8-18 x 3/8 |
| 3 | MAY 8533974 |
| 4 | MAY W10193957 |
| 4 | Panel, Side (R.H.) (White) |
| 5 | MAY W10246525 |
| 6 | MAY W10193954 |
| 6 | Panel, Side (L.H.) (White) |
| 7 | MAY 279810 |
| 7 | MAY 3392100 |
| 8 | CLAMP, MOTOR MOUNT |
| 9 | MAY 3387374 |
| 10 | SCREW |
| 11 | MAY 697750 |
| 11 | MAY W10151499 |
| 12 | ASSEMBLY, PULLEY |
| 13 | MAY 3978776 |
| 17 | MAY W10121334 |
| 18 | SWITCH, ASSEMBLY DOOR |
| 19 | WASHER, TRI RING |
| 20 | MAY 8066115 |
| 21 | MAY 8529053 |
| 24 | Motor Assembly 60 HZ. |
| 26 | Pulley 60 HZ. |
| 27 | MAY W10112954 |
| 28 | MAY 8529757 |
| 29 | MAY W10242878 |
| 30 | MAY 3401401 |
| 31 | MAY 49026 |
| 32 | Screw |
| 33 | PIPE, EXHAUST (MEDIUM) |
| 34 | MAY 8563750 |
| 35 | PIPE, EXHAUST (LONG) |
| 36 | MAY 3388674 |
| 37 | Clip, S-Type (3) |
| 38 | TRIM-RING ASSEMBLY (WHITE) |
| 38 | TRIM-RING ASSEMBLY (RED) (INCLUDES ITEM. 48) |
| 40 | SCREW |
| 41 | MAY 3387242 |
| 43 | MAY 8519459 |
| 44 | Trim-Clip Metal |
| 45 | MAY W10273475 |
| 46 | MAY W10193967 |
| 46 | FRONT PANEL (INCLUDES, ITEM. 44 ) (WHITE) |
| 47 | MAY 696144 |
| 48 | SCREW,8-18 X 3/8 |
| 49 | SCREW |
| 50 | MAY W10242903 |
| 51 | Bracket, Control |
| 52 | CONTROL BOARD |
| 53 | Screw, 8-32 x 1/32 |
| 54 | PANEL, TOE |
| 54 | MAY W10246286 |
| 55 | MAY W10244141 |
| 56 | SCREW |
| 57 | DRYER EXHAUST KIT (FOR SIDE & BOTTOMVENTING) (MIDNIGHT GREY) |
| 57 | MAY 279818 |
