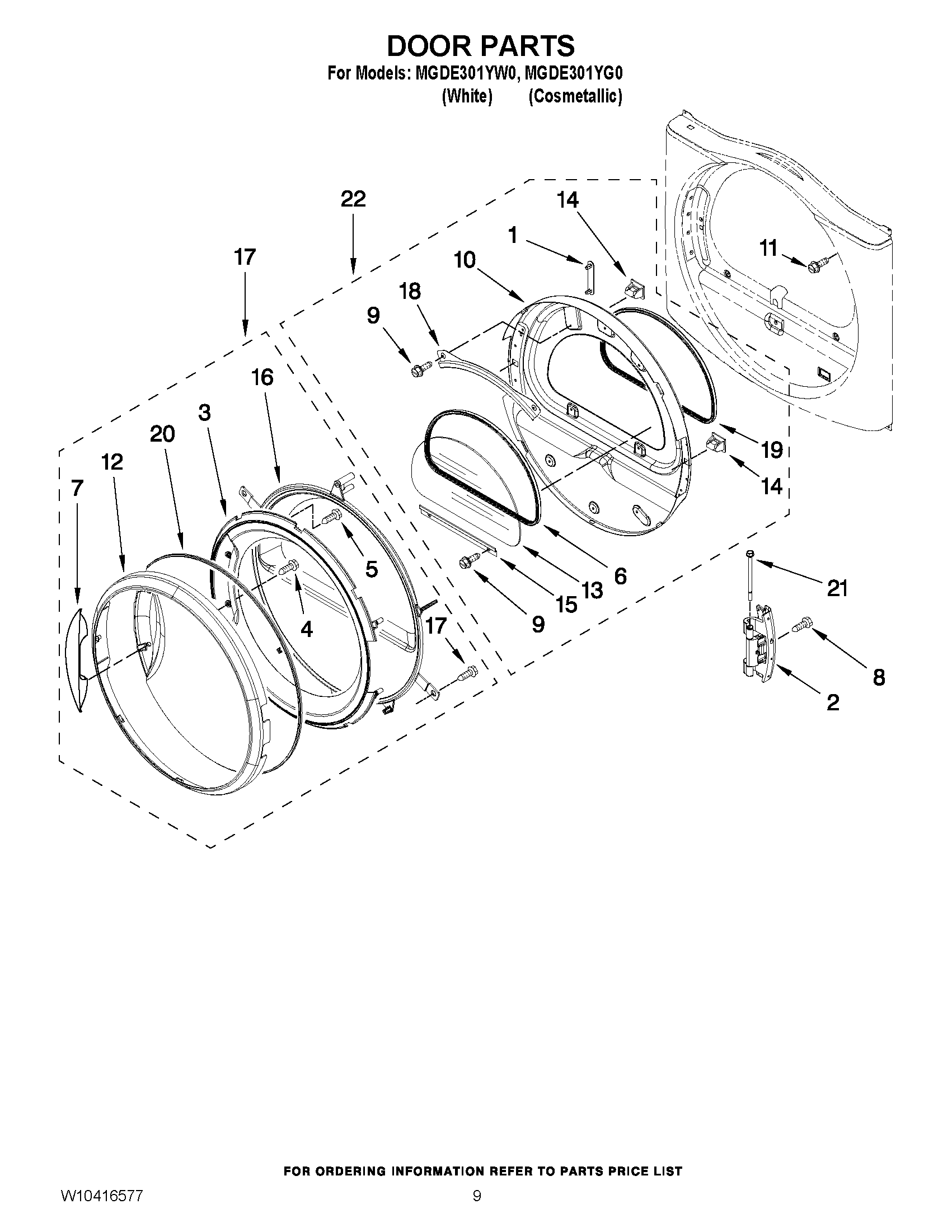

MGDE301YW0 05 – DOOR PARTS

Products

Position	Product
1	LABEL, HINGE HOLE COVER (INNER DOOR)
2	ASSEMBLY, DOOR HINGE
3	DOOR, SCREEN INTERMEDIATE ASSY.
4	Screw
5	MAY 3400618
6	MAY 8579663
7	HANDLE, DOOR (CHROME)
8	SCREW
9	Screw, 10-16 x 1/2
10	MAY W10363674
11	MAY 355515
12	TRIM RING, OUTER DOOR (CHROME)
13	MAY W10286878
14	Catch, Door
15	MAY 8519354
16	DOOR,INTERMEDIATE
17	DOOR, FRONT (CHROME)
18	MAY 8519356
19	MAY W10163915
20	DOOR SCREEN
21	BOLT
22	DOOR ASSEMBLY (INNER) (INCLUDES, ITEM. 1 & 14 )
