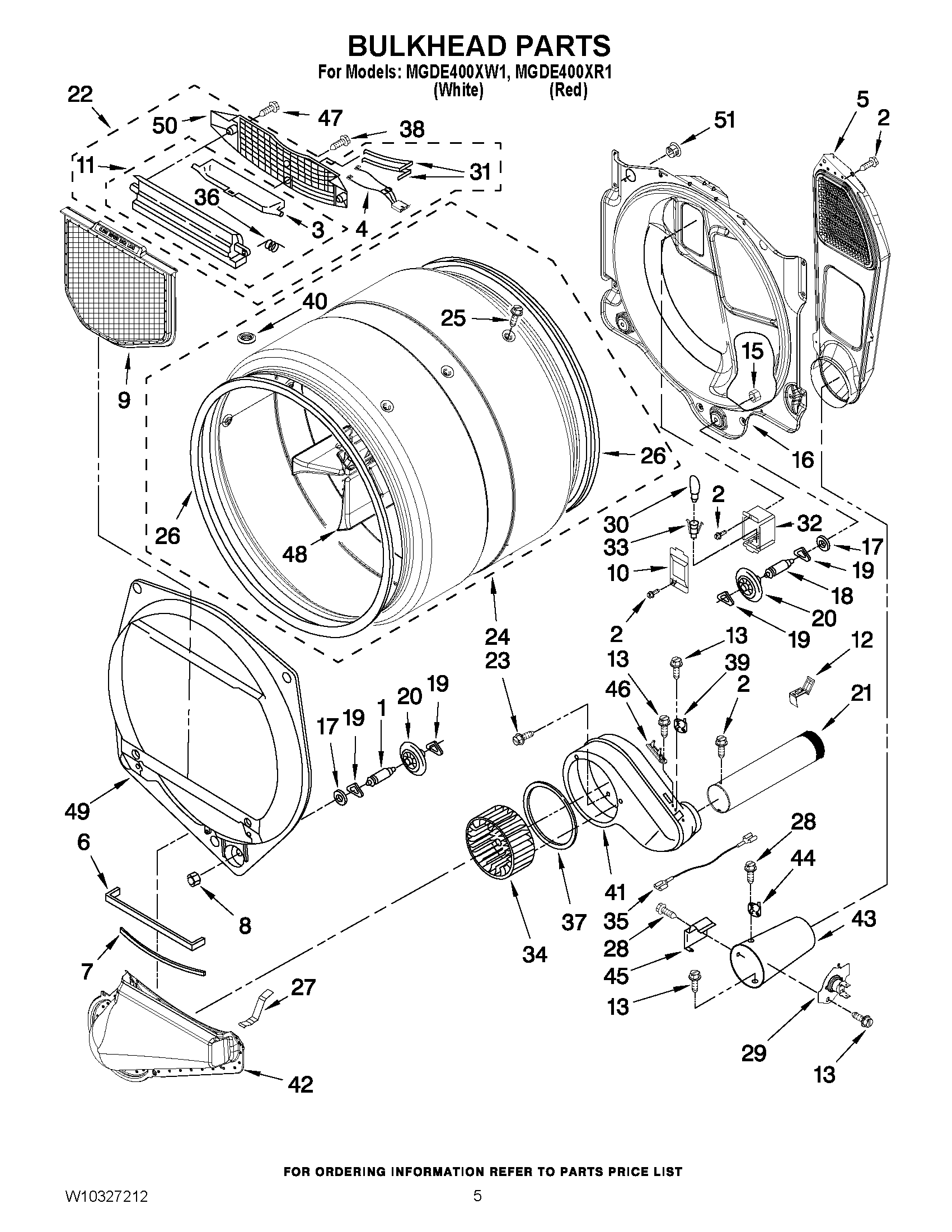

MGDE400XR1 03 – BULKHEAD PARTSadmin2025-04-26T11:30:03+00:00MGDE400XR1 03 – BULKHEAD PARTS
Products
| Position | Product |
|---|
| 1 | MAY 8575324 |
| 3 | MAY W10153413 |
| 4 | SENSOR HARNESS |
| 5 | MAY 3394346 |
| 6 | MAY 697813 |
| 7 | MAY 697814 |
| 8 | NUT, HEX |
| 9 | MAY W10049370 |
| 10 | MAY 3402841 |
| 11 | Housing, Outlet |
| 12 | CLIP, EXHAUST |
| 13 | Screw |
| 15 | NUT, HEX (LEFT HAND THREAD) |
| 16 | MAY 8520836 |
| 17 | WASHER |
| 18 | MAY 8575325 |
| 19 | WASHER, TRI RING |
| 20 | MAY 8536973 |
| 21 | PIPE, EXHAUST |
| 22 | ASSEMBLY, OUTLET GRILL HOUSING |
| 23 | Screw |
| 24 | MAY W10181467 |
| 25 | MAY W10219342 |
| 26 | MAY W10166807 |
| 27 | CLIP-SPRING |
| 28 | SCREW,8-18 X 3/8 |
| 29 | CUT-OFF, THERMAL |
| 30 | MAY 3406124 |
| 31 | SENSOR, ELECTRODE |
| 32 | MAY 8578825 |
| 33 | MAY W10214261 |
| 34 | MAY 697772 |
| 35 | Jumper-Tco Hi-Limit |
| 36 | Spring, Lint Screen Door |
| 37 | SEAL, PLATE COVER |
| 38 | Screw, 8-18 x 1/2 |
| 39 | THERMISTOR |
| 40 | CAP, PLUG |
| 41 | MAY 8544362 |
| 42 | Lint Duct Assembly |
| 43 | MAY 8573824 |
| 44 | THERMOSTAT, HI LIMIT |
| 45 | MAY 338906 |
| 46 | Fuse, Thermal (91 C) |
| 47 | SCREW |
| 48 | BAFFLE, DRUM |
| 49 | MAY W10252304 |
| 50 | MAY W10153412 |
| 51 | MAY 8529007 |
