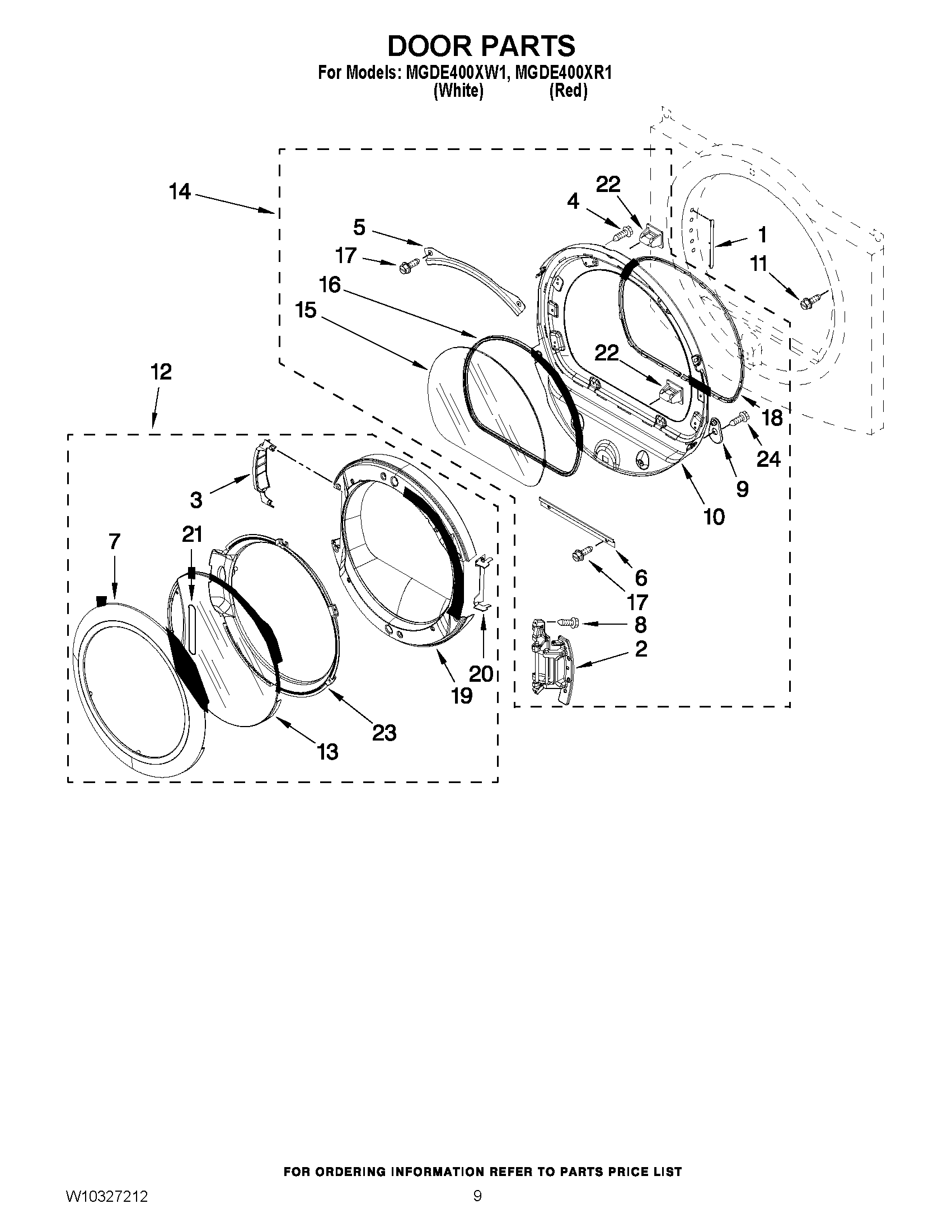

MGDE400XR1 05 – DOOR PARTS

Products

Position	Product
1	MAY W10085230
1	PLUG-STRIP FRONT PANEL
2	MAY W10310366
3	Cover, Door Hinge
4	Screw
5	MAY 8519356
6	MAY 8519354
7	Handle Ring
8	SCREW
9	MAY W10048910
10	DOOR ASSEMBLY (INNER) (INCLUDE, ITEM. 1 & 8 )
11	MAY 355515
12	Door, Outer Assembly
13	MAY W10180117
14	INNER DOOR ASSEMBLY
15	Glass-Window
16	MAY 8579662
17	Screw, 10-16 x 1/2
18	Seal Door Assembly (Upper)
19	Door-Intermediate
20	Door-Shield
21	PAD-HANDLE
22	Catch, Door
23	Screen, Door
24	SCREW, 14-20 X 1/2
