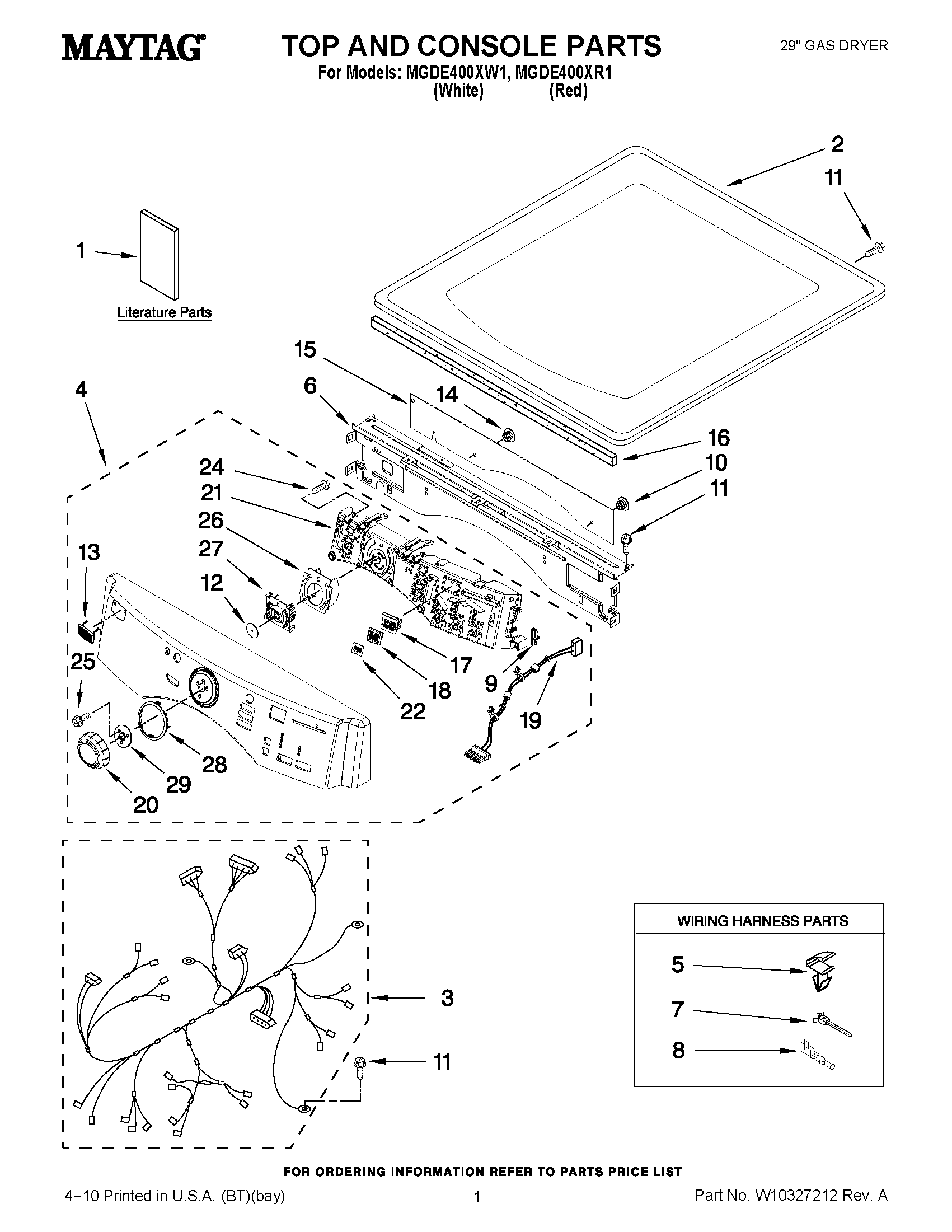

MGDE400XW1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	INSTALLATION, DIAGNOSTIC GUIDE
1	MAY W10239302
1	MAY W10298850
2	MAY 3980634
3	MAY W10300883
4	MAY W10303515
4	MAY W10303516
5	CLIP, HARNESS
6	BRACKET, CONSOLE (INCLUDE, ITEM. 12 )
7	MAY 3391018
8	Terminal
9	PLUG, CONNECTOR FRAME
10	PLUG-HOLE, 5/16“
11	Screw
12	SEAL, UI
13	MAY W10177245
14	PLUG-HOLE, 1/4“
15	MAY W10215674
16	Seal, Foam Console Bracket
17	Frame-Light (Guide Display)
18	MAY W10164578
19	MAY W10242907
20	MAY W10164576
21	MAY W10283492
22	MAY W10171504
24	MAY 8540282
25	MAY 8540513
26	MAY W10170295
27	MAY W10170293
28	MAY W10164567
29	MAY W10172298
