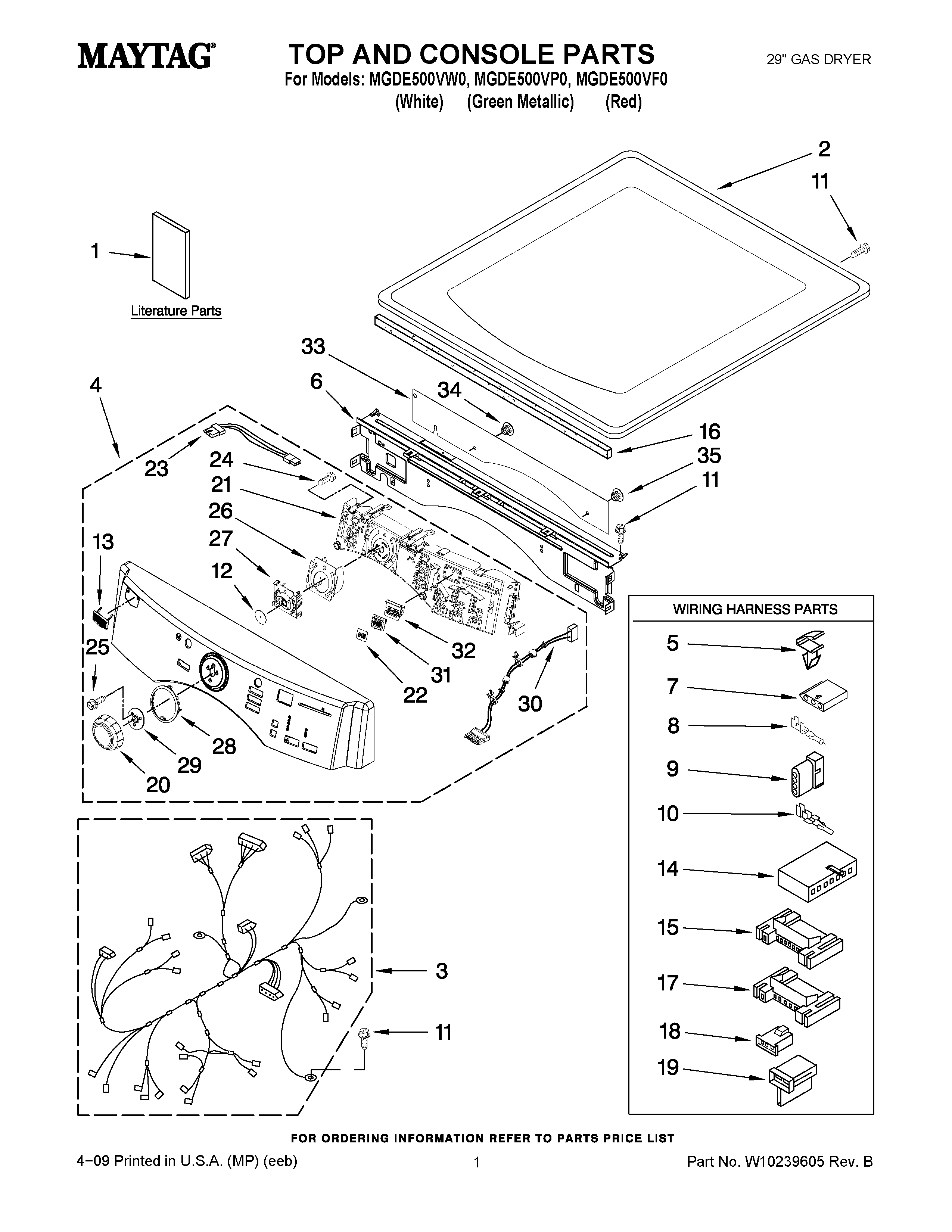

MGDE500VF0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10165147
1	MAY W10057352
1	MAY W10057361
1	Quick Start Guide
2	MAY W10193965
2	MAY 3980634
2	MAY W10193964
3	MAY W10181775
4	MAY W10237639
4	MAY W10164452
4	MAY W10191140
5	CLIP, HARNESS
6	BRACKET, CONSOLE (INCLUDE, ITEM. 12 )
7	Connector Sensor
8	Terminal
9	MAY 3936144
10	Terminal
11	Screw, 8-32 x 1/32
12	SEAL, UI
13	MAY W10177245
14	MAY 3936150
15	CONNECTOR (MOTOR)
16	Seal, Foam Console Bracket
17	MAY 2203186
18	MAY 3403498
19	CONNECTOR, 2-POSITION (GAS VALVE)
20	MAY W10164576
21	MAY W10164610
22	MAY W10171504
23	MAY W10185548
24	MAY 8540282
25	MAY 8540513
26	MAY W10170295
27	MAY W10170293
28	MAY W10164567
29	MAY W10172298
30	MAY W10185550
31	MAY W10164578
32	Frame-Light (Guide Display)
33	MAY W10215674
34	PLUG-HOLE, 1/4``
35	PLUG-HOLE, 5/16``
