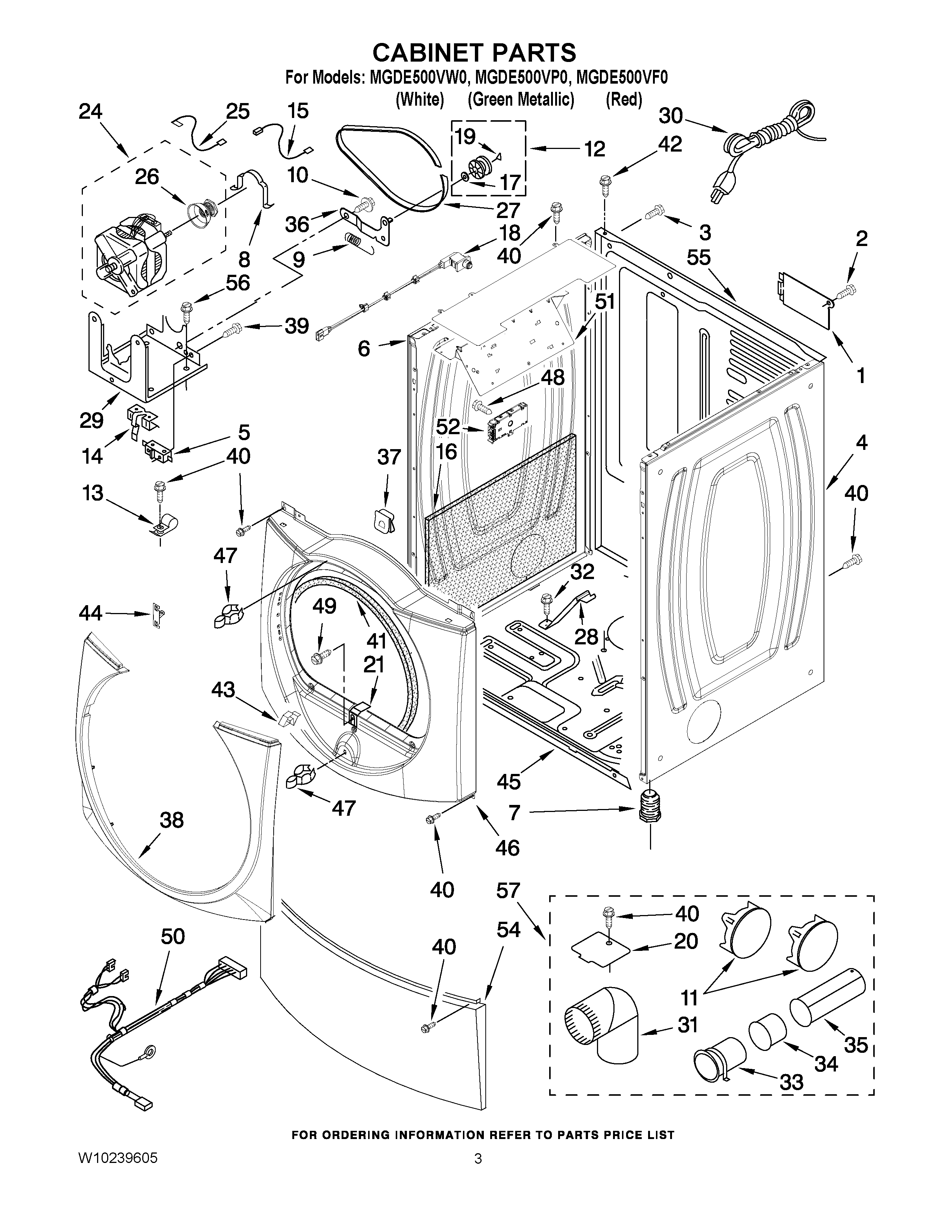

MGDE500VF0 02 – CABINET PARTS

Products

Position	Product
1	MAY 8317340
2	Screw, 8-18 x 3/8
3	MAY 8533974
4	Panel, Side (R.H.) (White)
4	MAY W10193958
4	MAY W10193957
5	MAY 3394881
6	Panel, Side (L.H.) (White)
6	MAY W10193954
6	MAY W10193965
7	MAY 279810
7	MAY 3392100
8	MAY 660658
9	MAY 3387374
10	SCREW
11	MAY 697750
11	MAY W10151499
12	ASSEMBLY, PULLEY
13	MAY 3978776
14	MAY 8066120
15	MAY W10167612
16	MAY W10128772
17	MAY W10121334
18	SWITCH, ASSEMBLY DOOR
19	WASHER, TRI RING
20	MAY 8066115
21	MAY 8529053
24	Motor Assembly 60 HZ.
25	Wire, Jumper (Broken Belt Switch)
26	Pulley 60 HZ.
27	MAY W10112954
28	MAY 8529757
29	MAY 3387118
30	MAY 3401401
31	MAY 49026
32	Screw
33	PIPE, EXHAUST (MEDIUM)
34	MAY 8563750
35	PIPE, EXHAUST (LONG)
36	MAY 3388674
37	Clip, S-Type (3)
38	MAY W10190564
38	MAY W10164746
38	Trim-Ring Assembly (Red Metallic (Includes Item. 48 ))
39	Screw, 6-20 x 1-1/16
40	SCREW
41	MAY 3387242
42	Screw, 8-32 x 1/32
43	MAY 8519459
44	Trim-Clip Metal
45	MAY 8519207
46	FRONT PANEL (INCLUDES, ITEM. 44 ) (WHITE)
46	MAY W10193967
46	MAY W10193970
47	MAY 696144
48	SCREW,8-18 X 3/8
49	SCREW
50	MAY W10181464
51	Bracket, Control
52	MAY W10174746
54	Panel, Toe (Red)
54	MAY W10193963
54	Panel, Toe (White)
55	MAY W10181460
56	SCREW
57	MAY 279818
57	DRYER EXHAUST KIT (FOR SIDE & BOTTOMVENTING) (MIDNIGHT GREY)
