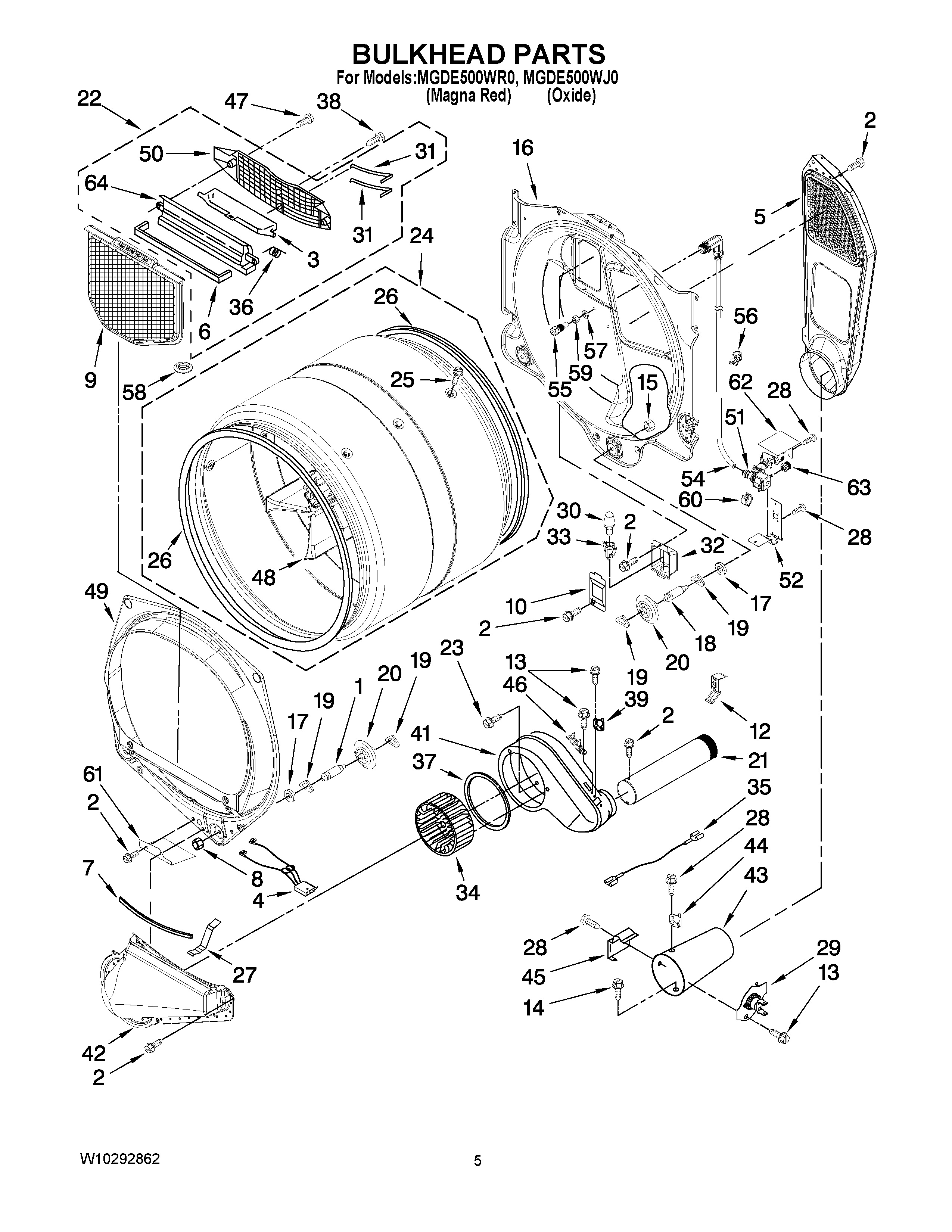

MGDE500WJ0 03 – BULKHEAD PARTS

Products

Position	Product
1	MAY 8575324
2	SCREW
3	MAY W10153413
4	SENSOR HARNESS
5	MAY 3394346
6	MAY 697813
7	MAY 697814
8	NUT, HEX
9	MAY W10049370
10	MAY 3402841
12	CLIP, EXHAUST
13	MAY 8533971
14	Screw
15	NUT, HEX (LEFT HAND THREAD)
16	MAY W10133857
17	WASHER
18	MAY 8575325
19	WASHER, TRI RING
20	MAY 8536973
21	MAY 8563745
22	ASSEMBLY, OUTLET GRILL HOUSING
23	Screw
24	MAY W10181466
25	MAY W10219342
26	MAY W10166807
27	CLIP-SPRING
28	SCREW,8-18 X 3/8
29	CUT-OFF, THERMAL
30	MAY 3406124
31	SENSOR, ELECTRODE
32	MAY 8578825
33	MAY W10214261
34	MAY 697772
35	Jumper-Tco Hi-Limit
36	Spring, Lint Screen Door
37	SEAL, PLATE COVER
38	Screw, 8-18 x 1/2
39	THERMISTOR
41	MAY 8544362
42	Lint Duct Assembly
43	MAY 8573824
44	THERMOSTAT, HI LIMIT
45	MAY 338906
46	Fuse, Thermal (91 C)
47	SCREW
48	BAFFLE, DRUM
49	MAY W10252304
50	MAY W10153412
51	VALVE, WATER INLET (INCLUDE ITEMS, 29, 54, 60 & 61)
52	Bracket, Valve
54	HOSE, (NOT SERVICABLE) INCLUDED WITH ITEM 55.)
55	MAY W10277503
56	MAY 3391018
57	MAY W10044579
58	CAP, PLUG
59	Nut, Brass 9/16 – 24 x 1/2
60	Clip, Push-To-Connect
61	MAY W10128629
62	MAY W10184825
63	MAY W10044605
64	MAY W10153414
