MGDE500WJ1 04 – W10293911 BURNER ASSEMBLY – Aparts

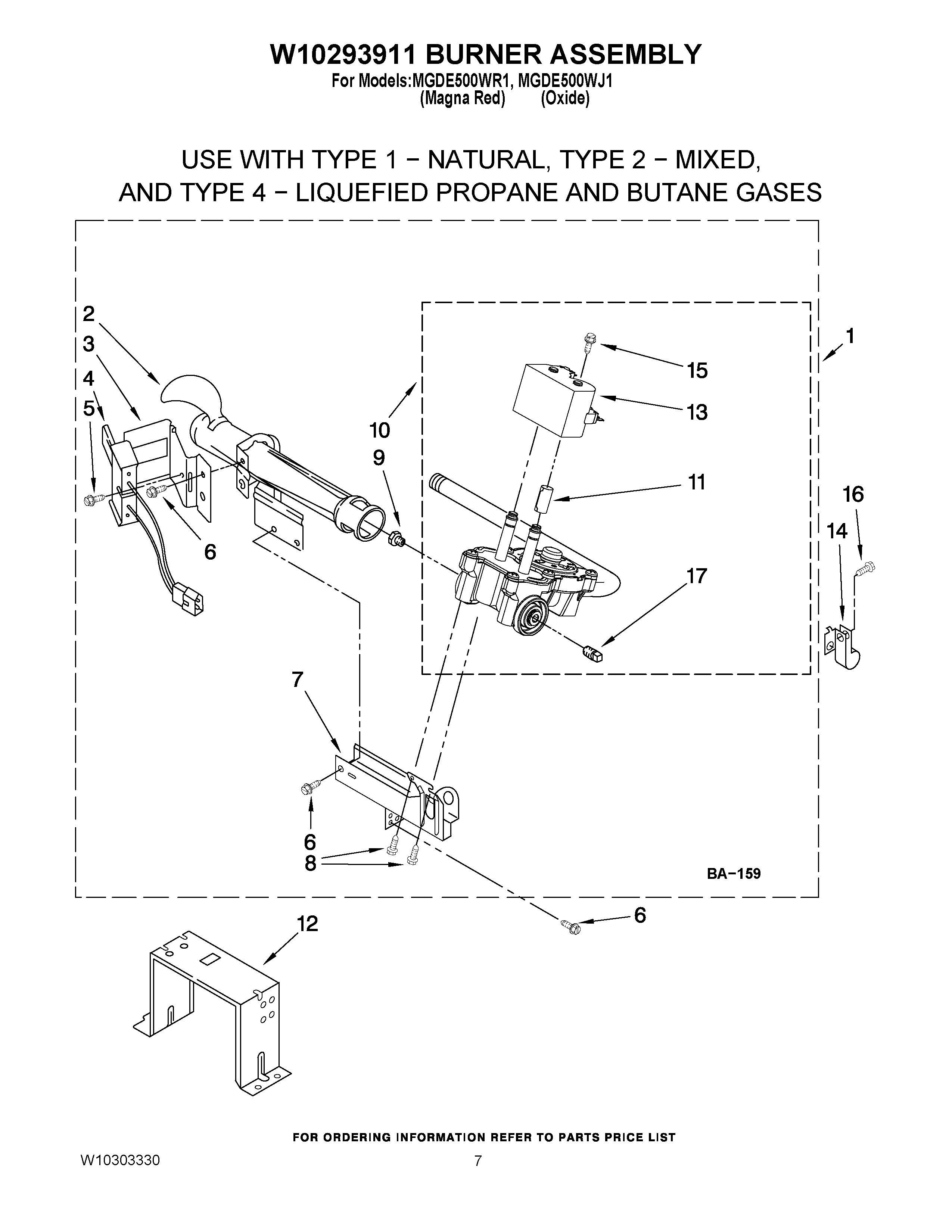

MGDE500WJ1 04 – W10293911 BURNER ASSEMBLY

Products

Position	Product
NI	MAY W10293913
1	MAY W10293911
2	MAY 688617
3	MAY 694298
4	MAY 686590
5	MAY 3393909
6	SCREW
7	MAY 3389871
8	SCREW
9	ORIFICE, BURNER (TYPE 1 (NATURAL))
10	MAY W10175144
11	SLEEVE-MAGNETIC
12	MAY 3389889
13	MAY W10273784
14	MAY 3978776
15	MAY 326049536
16	SCREW
17	MAY W10295523
