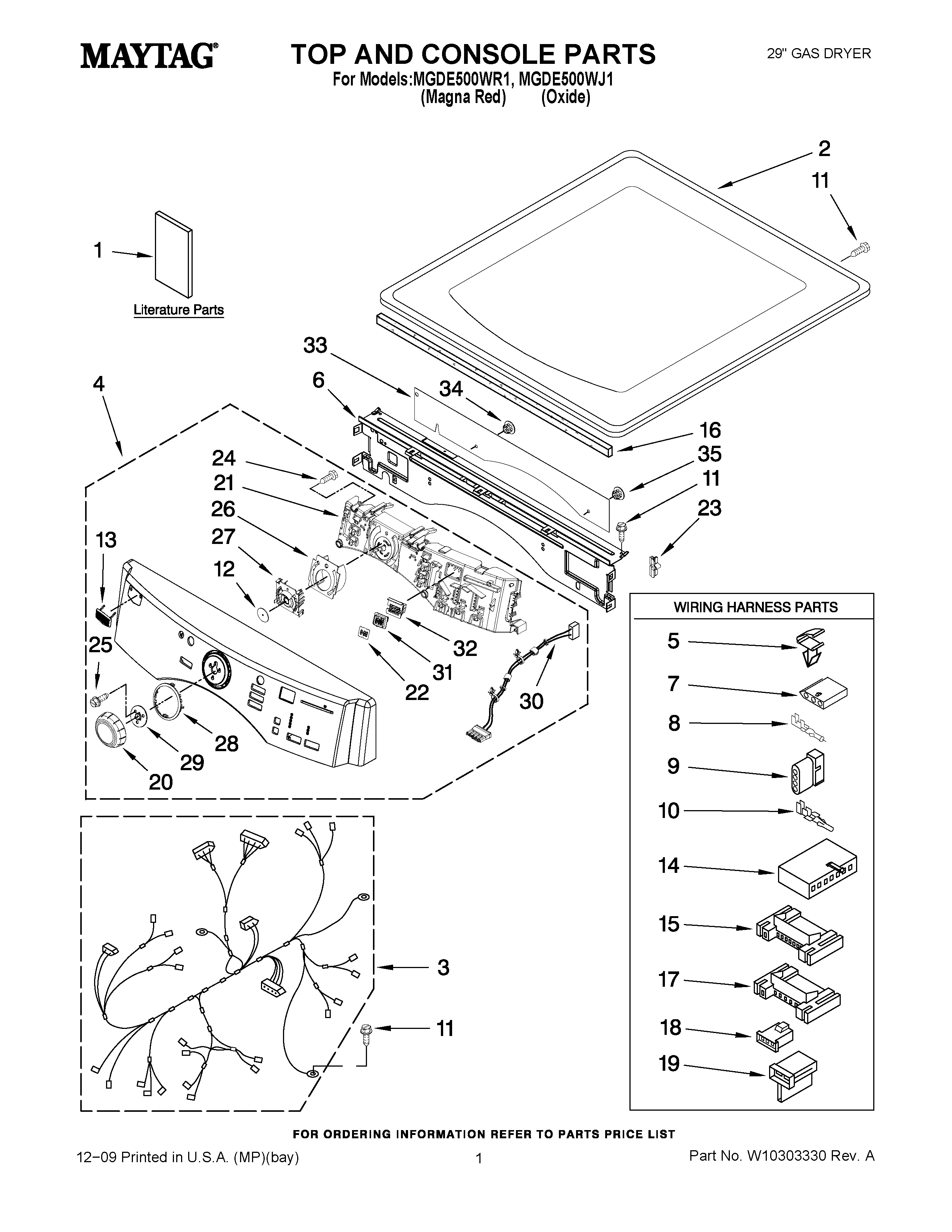

MGDE500WR1 01 – TOP AND CONSOLE PARTS

MGDE500WR1 01 – TOP AND CONSOLE PARTS

Written by

in

MGDE500WR1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10239302
1MAY W10258377
1INSTALLATION, DIAGNOSTIC GUIDE
2MAY W10164743
2MAY W10249738
3MAY W10111069
4PANEL, CONSOLE (INCLUDES BUTTONS & CONTROL BOARD & ITEM. 11 ) (RED)
4PANEL, CONSOLE (INCLUDES BUTTONS & CONTROL BOARD & ITEM. 11 ) (OXIDE)
5CLIP, HARNESS
6BRACKET, CONSOLE (INCLUDE, ITEM. 12 )
7Connector Sensor
8Terminal
9MAY 3936144
10Terminal
11SCREW
12SEAL, UI
13MAY W10177245
14MAY 3936150
15CONNECTOR (MOTOR)
16Seal, Foam Console Bracket
17MAY 2203186
18MAY 3403498
19CONNECTOR, 2-POSITION (GAS VALVE)
20MAY W10164576
21MAY W10269025
22MAY W10171504
23PLUG, CONNECTOR FRAME
24MAY 8540282
25MAY 8540513
26MAY W10170295
27MAY W10170293
28MAY W10164567
29MAY W10172298
30MAY W10242907
31MAY W10164578
32Frame-Light (Guide Display)
33MAY W10215674
34PLUG-HOLE, 1/4“
35PLUG-HOLE, 5/16“
