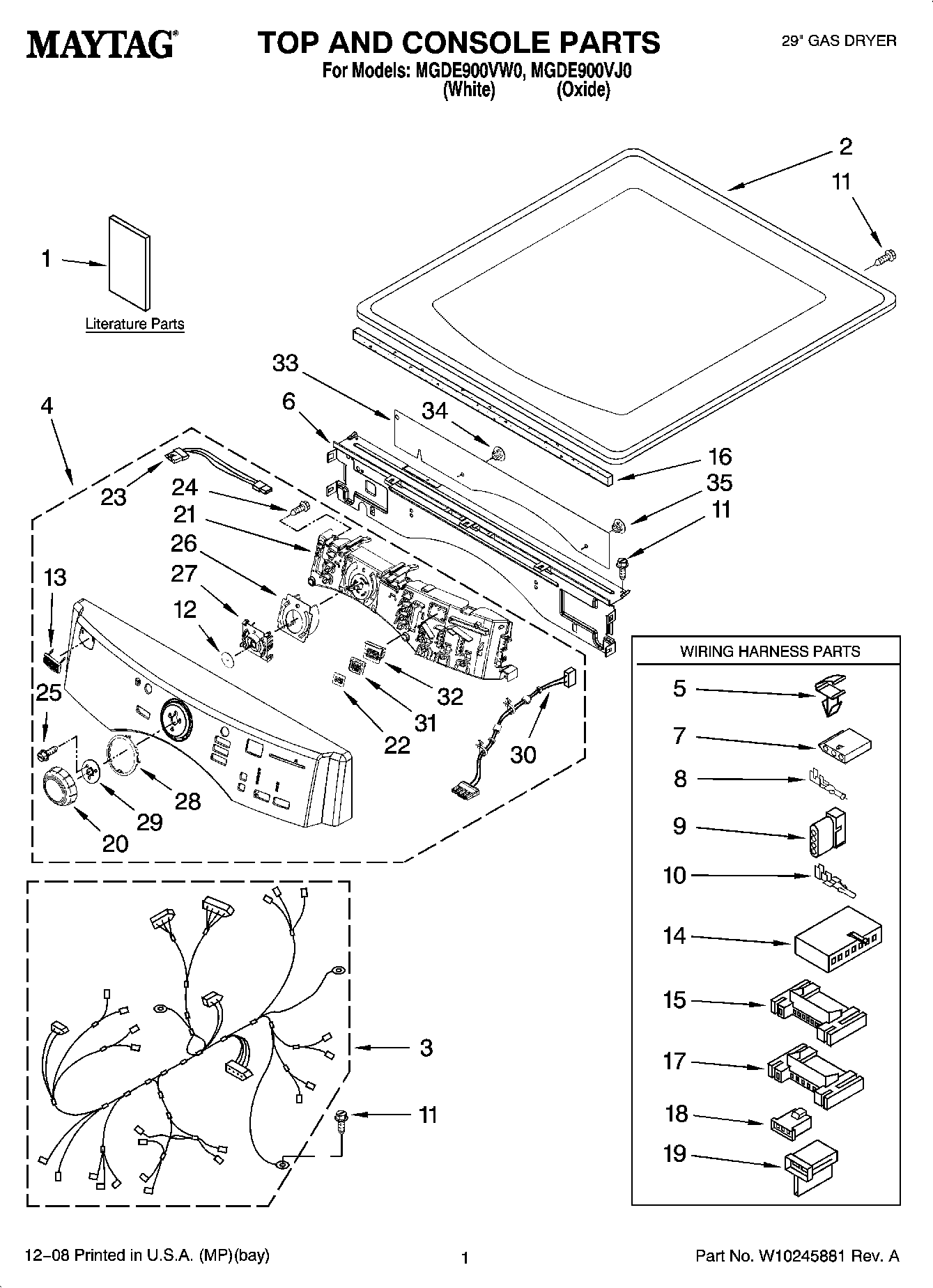

MGDE900VJ0 01 – TOP AND CONSOLE PARTS

MGDE900VJ0 01 – TOP AND CONSOLE PARTS

Written by

in

MGDE900VJ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10165147
1MAY W10057354
1MAY W10057357
1MAY W10057361
2MAY W10164743
2MAY 3980634
3MAY W10111015
4MAY W10164454
4MAY W10164456
5CLIP, HARNESS
6BRACKET, CONSOLE (INCLUDE, ITEM. 12 )
7Connector Sensor
8Terminal
9MAY 3936144
10Terminal
11Screw, 8-32 x 1/32
12SEAL, UI
13MAY W10177245
14MAY 3936150
15CONNECTOR (MOTOR)
16Seal, Foam Console Bracket
17MAY 2203186
18MAY 3403498
19CONNECTOR, 2-POSITION (GAS VALVE)
20MAY W10164576
21MAY W10164611
22MAY W10171504
23MAY W10185548
24MAY 8540282
25MAY 8540513
26MAY W10170295
27MAY W10170293
28MAY W10164567
29MAY W10172298
30MAY W10185550
31MAY W10164578
32Frame-Light (Guide Display)
33MAY W10215674
34PLUG-HOLE, 1/4“
35PLUG-HOLE, 5/16“
