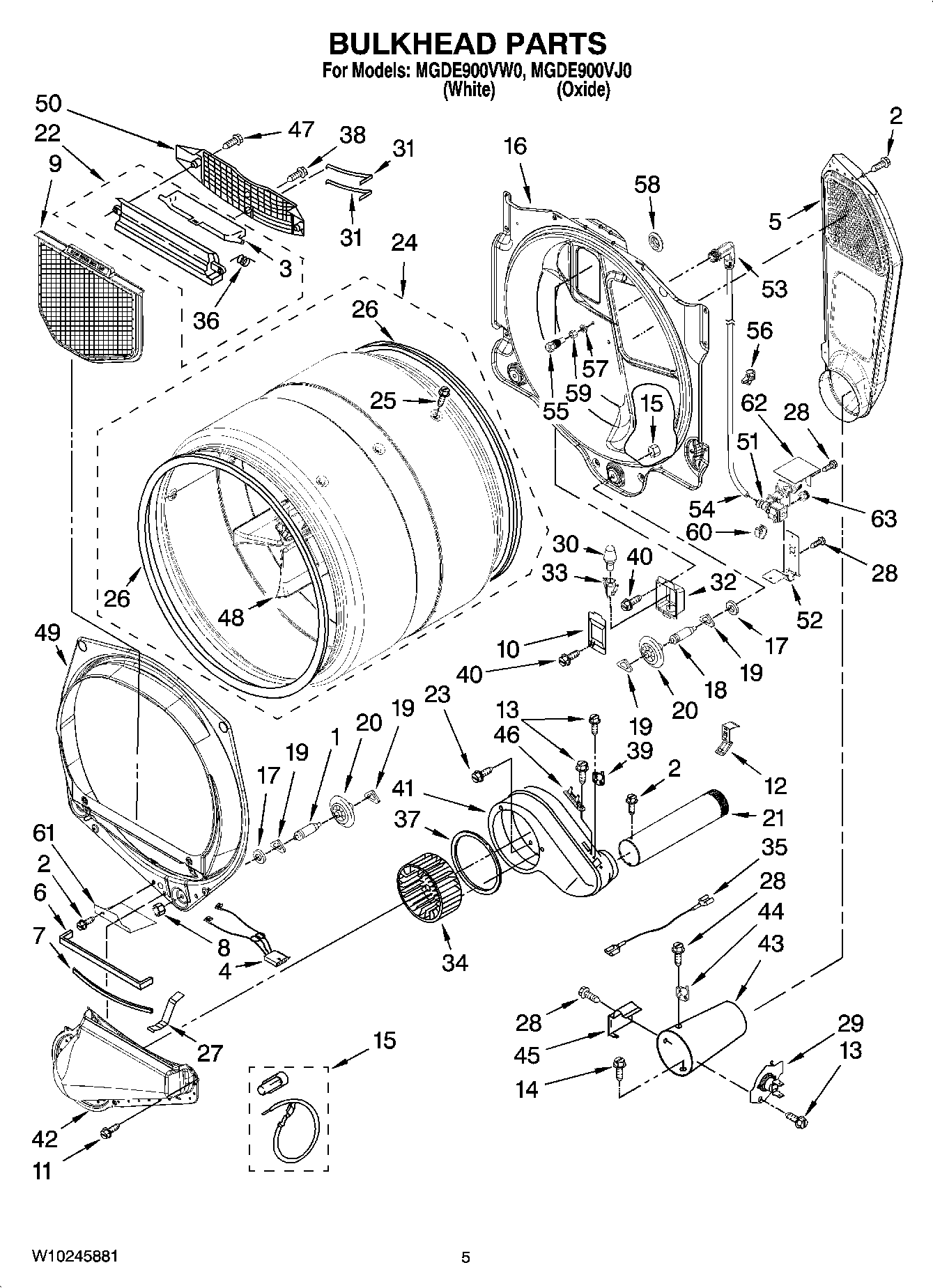

MGDE900VJ0 03 – BULKHEAD PARTS

Products

Position	Product
1	MAY 8575324
2	SCREW
3	MAY W10153413
4	SENSOR HARNESS
5	MAY 3394346
6	MAY 697813
7	MAY 697814
8	NUT, HEX
9	MAY W10049370
10	MAY 3402841
11	MAY 359625
12	CLIP, EXHAUST
13	MAY 8533971
14	Screw
15	NUT, HEX (LEFT HAND THREAD)
16	MAY W10124071
17	WASHER
18	MAY 8575325
19	WASHER, TRI RING
20	MAY 8536973
21	PIPE, EXHAUST
22	Housing, Outlet
23	Screw
24	MAY W10181467
25	MAY W10219342
26	MAY W10166807
27	CLIP-SPRING
28	SCREW,8-18 X 3/8
29	CUT-OFF, THERMAL
30	MAY 3406124
31	SENSOR, ELECTRODE
32	MAY 8578825
33	MAY W10136369
34	MAY 697772
35	Jumper-Tco Hi-Limit
36	Spring, Lint Screen Door
37	SEAL, PLATE COVER
38	Screw, 8-18 x 1/2
39	THERMISTOR
40	MAY 487909
41	MAY 8544362
42	Lint Duct Assembly
43	MAY 8573824
44	THERMOSTAT, HI LIMIT
45	MAY 338906
46	Fuse, Thermal (91 C)
47	SCREW
48	BAFFLE, DRUM
49	MAY 8519245
50	MAY W10153412
51	VALVE, WATER INLET (INCLUDE ITEMS, 29, 54, 60 & 61)
52	Bracket, Valve
53	NOZZLE & HOSE ASSEMBLY (INCLUDE ITEMS, 57, 59, 62 & 63)
54	HOSE, (NOT SERVICABLE) INCLUDED WITH ITEM 55.)
55	MAY W10044629
56	MAY 3391018
57	MAY W10044579
58	MAY 8529007
59	Nut, Brass 9/16 – 24 x 1/2
60	Clip, Push-To-Connect
61	MAY W10128629
62	MAY W10184825
63	MAY W10044605
