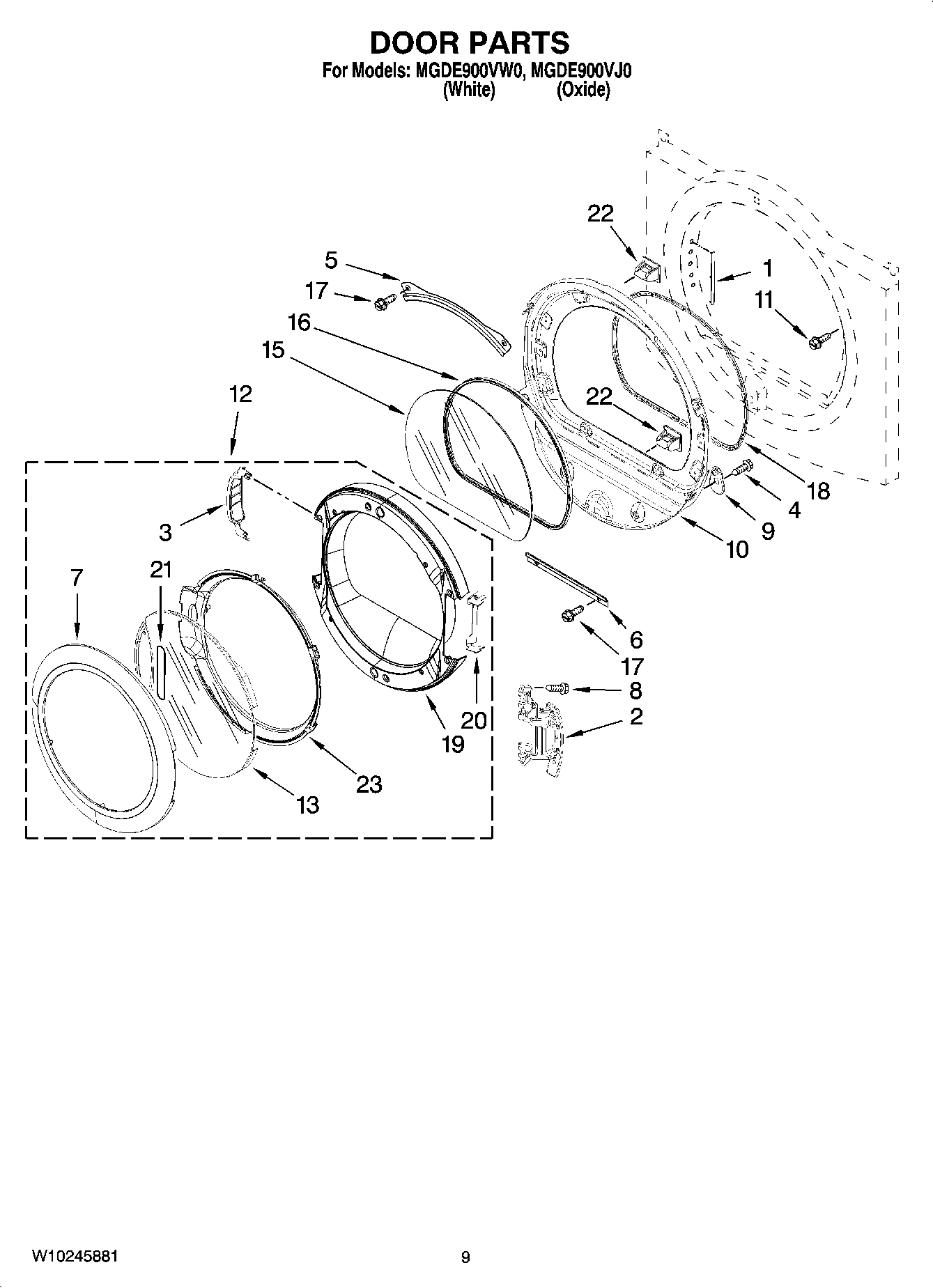

MGDE900VJ0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	MAY 8579666A
NI	Connector, Hose
NI	Hose, Inlet 1 Ft. Hose
NI	Hose, Inlet 6 Ft. Hose With Elbow
NI	ACCESSORY PARTS, KIT, HOLD DOWN
NI	MISCELLANEOUS PARTS BAG, BAG ASSEMBLY (CONTAINS THE FOLLOWING)
NI	ACCESSORY PARTS, WASHER, HOSE
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	ACCESSORY PARTS, KIT, DRYER REPAIR
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NI	ACCESSORY PARTS (KIT, DRYER VENT TESTING)
1	PLUG-STRIP FRONT PANEL
2	MAY W10139920
3	Cover, Door Hinge
4	Screw
5	MAY 8519356
6	MAY 8519354
7	Handle Ring
8	SCREW
9	MAY W10048910
10	INNER DOOR ASSEMBLY
11	MAY 355515
12	Door, Outer Assembly
13	MAY W10180117
15	Glass-Window
16	MAY 8579662
17	Screw, 10-16 x 1/2
18	Seal Door Assembly (Upper)
19	Door-Intermediate
20	Door-Shield
21	PAD-HANDLE
22	Catch, Door
23	Screen, Door
