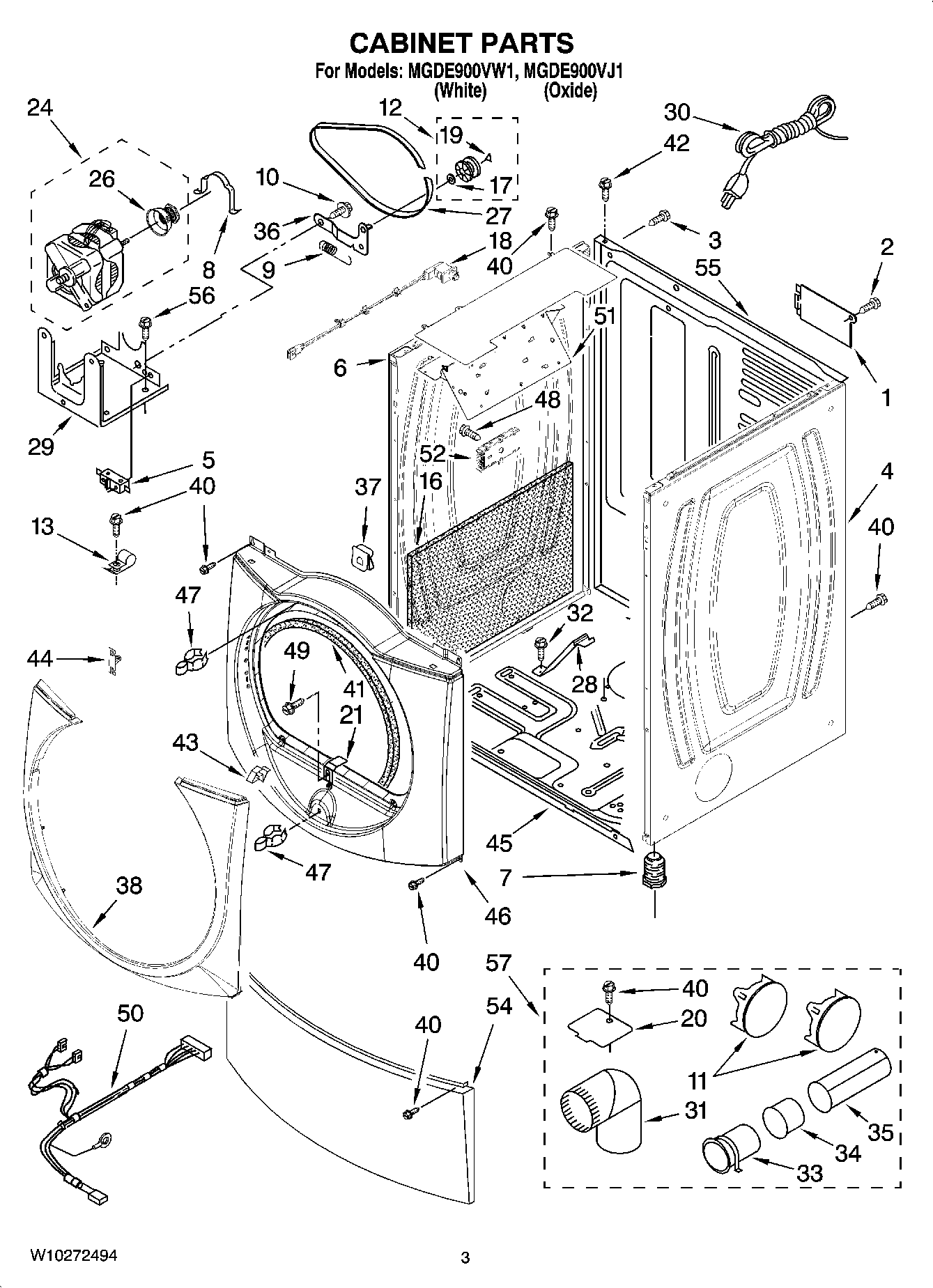

MGDE900VJ1 02 – CABINET PARTS

Products

Position	Product
1	MAY 8317340
2	Screw, 8-18 x 3/8
3	MAY 8533974
4	Panel, Side (R.H.) (White)
4	MAY W10193959
5	MAY W10246525
6	Panel, Side (L.H.) (White)
6	MAY W10193956
7	MAY 279810
7	MAY 3392100
8	CLAMP, MOTOR MOUNT
9	MAY 3387374
10	SCREW
11	MAY W10151499
11	MAY 49252
12	ASSEMBLY, PULLEY
13	MAY 3978776
16	MAY W10123956
17	MAY W10121334
18	SWITCH, ASSEMBLY DOOR
19	WASHER, TRI RING
20	MAY 8066115
21	MAY 8529053
24	Motor Assembly 60 HZ.
26	Pulley 60 HZ.
27	MAY W10112954
28	MAY 8529757
29	MAY W10242878
30	MAY 3401401
31	MAY 49026
32	Screw
33	PIPE, EXHAUST (MEDIUM)
34	MAY 8563750
35	PIPE, EXHAUST (LONG)
36	MAY 3388674
37	Clip, S-Type (3)
38	TRIM-RING ASSEMBLY (WHITE)
38	TRIM-RING ASSEMBLY (INCLUDE, ITEM. 48 ) (OXIDE)
40	SCREW
41	MAY 3387242
42	Screw, 8-32 x 1/32
43	MAY 8519459
44	Trim-Clip Metal
45	MAY W10239098
46	MAY W10164915
46	FRONT PANEL (INCLUDES, ITEM. 44 ) (WHITE)
47	MAY 696144
48	SCREW,8-18 X 3/8
49	SCREW
50	MAY W10242903
51	Bracket, Control
52	MAY W10174746
54	PANEL, TOE
54	MAY W10246285
55	MAY W10247569
56	SCREW
57	MAY 279818
57	DRYER EXHAUST KIT (FOR SIDE & BOTTOMVENTING) (MIDNIGHT GREY)
