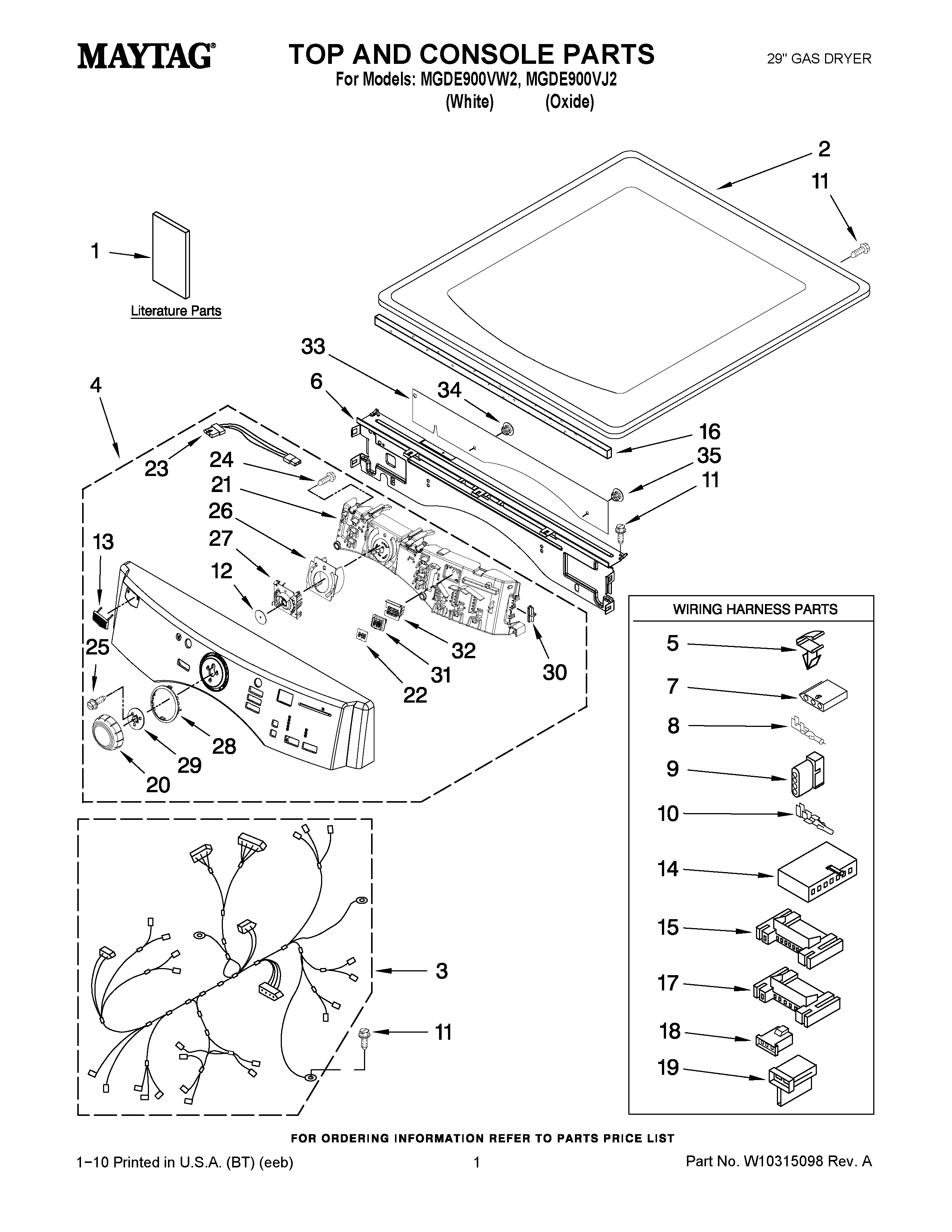

MGDE900VW2 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10239302
1	MAY W10258377
1	INSTALLATION, DIAGNOSTIC GUIDE
2	MAY 3980634
2	MAY W10164743
3	MAY W10111069
4	MAY W10246752
4	MAY W10246753
5	CLIP, HARNESS
6	BRACKET, CONSOLE (INCLUDE, ITEM. 12 )
7	Connector Sensor
8	Terminal
9	MAY 3936144
10	Terminal
11	SCREW
12	SEAL, UI
13	MAY W10177245
14	MAY 3936150
15	CONNECTOR (MOTOR)
16	Seal, Foam Console Bracket
17	MAY 2203186
18	MAY 3403498
19	CONNECTOR, 2-POSITION (GAS VALVE)
20	MAY W10164576
21	MAY W10269027
22	MAY W10171504
23	MAY W10242907
24	MAY 8540282
25	MAY 8540513
26	MAY W10170295
27	MAY W10170293
28	MAY W10164567
29	MAY W10172298
30	PLUG, CONNECTOR FRAME
31	MAY W10164578
32	Frame-Light (Guide Display)
33	MAY W10215674
34	PLUG-HOLE, 1/4“
35	PLUG-HOLE, 5/16“
