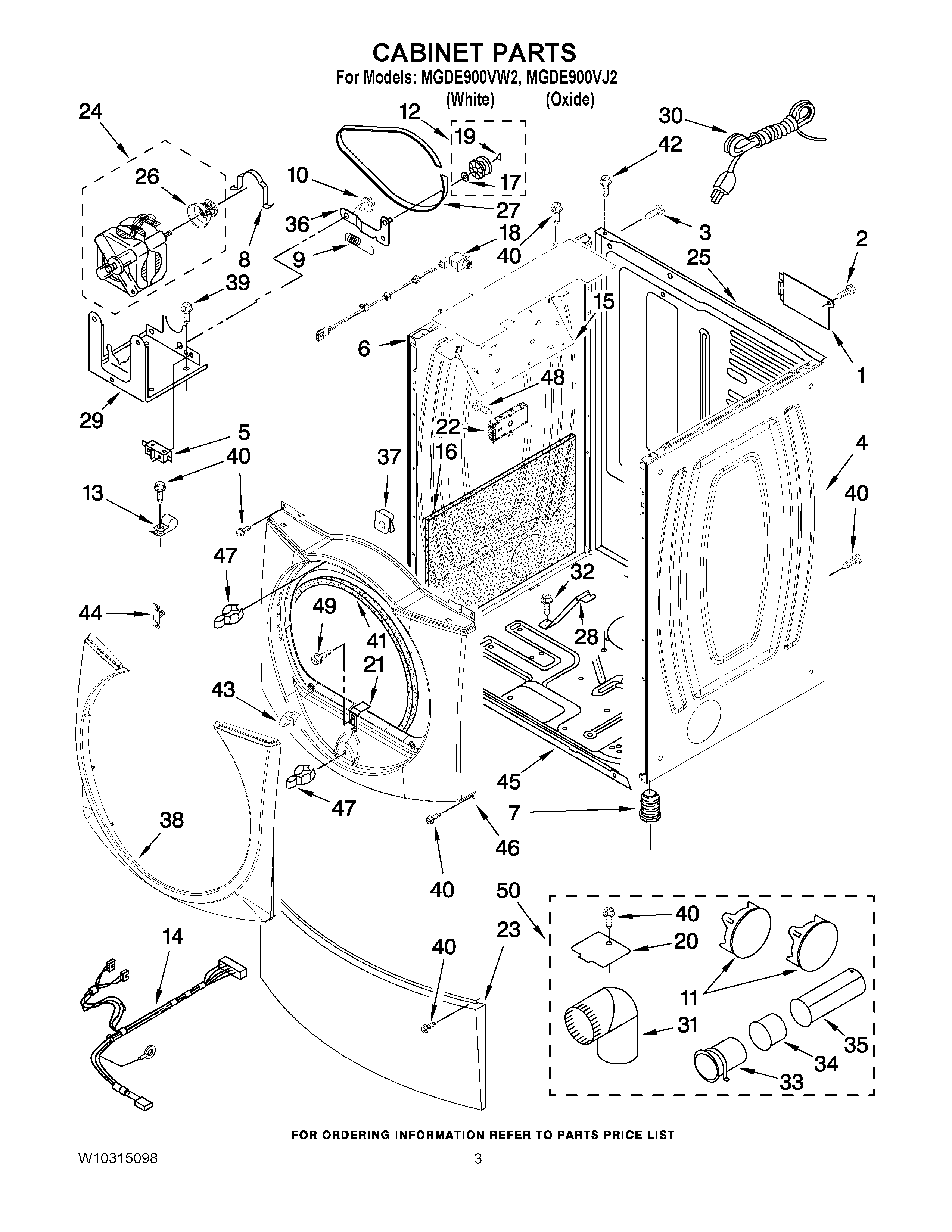

MGDE900VW2 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY 8317340
2	Screw, 8-18 x 3/8
3	MAY 8533974
4	MAY W10193959
4	Panel, Side (R.H.) (White)
5	MAY W10246525
6	Panel, Side (L.H.) (White)
6	MAY W10193956
7	MAY 3392100
8	MAY 660658
9	MAY 3387374
10	SCREW
11	MAY 49252
11	MAY W10151499
12	ASSEMBLY, PULLEY
13	MAY 3978776
14	MAY W10242903
15	Bracket, Control
16	MAY W10123956
17	MAY W10121334
18	SWITCH, ASSEMBLY DOOR
19	WASHER, TRI RING
20	MAY 8066115
21	MAY 8529053
22	MAY W10174746
23	PANEL, TOE
23	MAY W10246285
24	Motor Assembly 60 HZ.
25	MAY W10247569
26	Pulley 60 HZ.
27	MAY W10112954
28	MAY 8529757
29	MAY W10242878
30	MAY 3401401
31	MAY 49026
32	Screw
33	PIPE, EXHAUST (MEDIUM)
34	MAY 8563750
35	PIPE, EXHAUST (LONG)
36	MAY 3388674
37	Clip, S-Type (3)
38	TRIM-RING ASSEMBLY (INCLUDE, ITEM. 48 ) (OXIDE)
38	TRIM-RING ASSEMBLY (WHITE)
39	SCREW
40	SCREW
41	MAY 3387242
42	Screw, 8-32 x 1/32
43	MAY 8519459
44	Trim-Clip Metal
45	MAY W10239098
46	MAY W10164915
46	FRONT PANEL (INCLUDES, ITEM. 44 ) (WHITE)
47	MAY 696144
48	SCREW,8-18 X 3/8
49	SCREW
50	MAY 279818
50	DRYER EXHAUST KIT (FOR SIDE & BOTTOMVENTING) (MIDNIGHT GREY)
