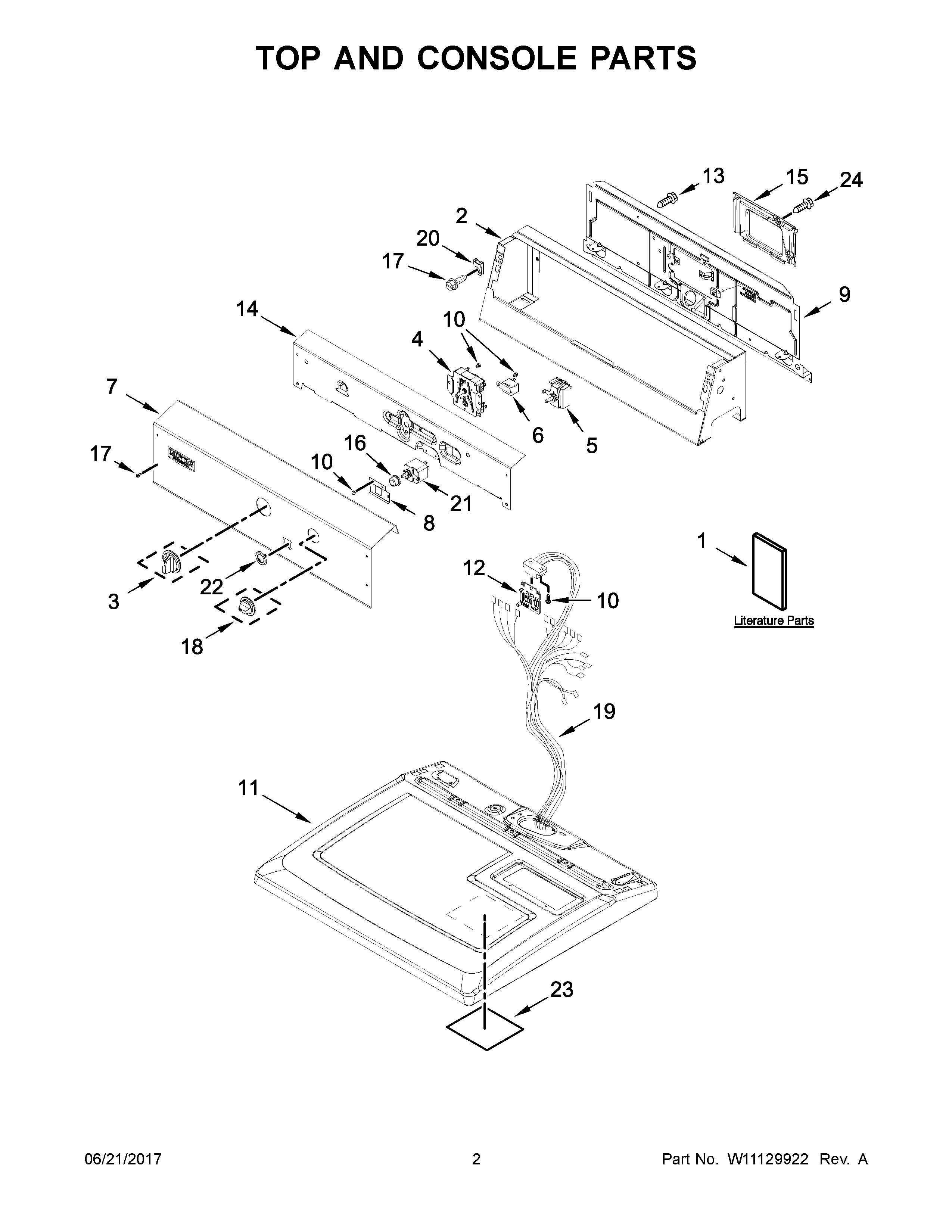

MGDP575GW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W11045709
1AMAY W11045671
1BMAY W11045673
2CONSOLE
3MAY W11126770
4MAY W10185992
5MAY 3405155
6MAY 694419
7MAY W10918902
8MAY W10831297
9MAY 8317305
10MAY 8533971
11TOP (WHITE)
12MAY W10476828
13SCREW
14BRACKET, BACK
15MAY 8317339
16MAY W11112209
17SCREW
18MAY W11126769
19HARNESS, MAIN
20NUT, "U"
21Switch, Push-To-Start
22BEZEL – PTS
23MAY W10836097
24Screw, 8-18 x 3/8
