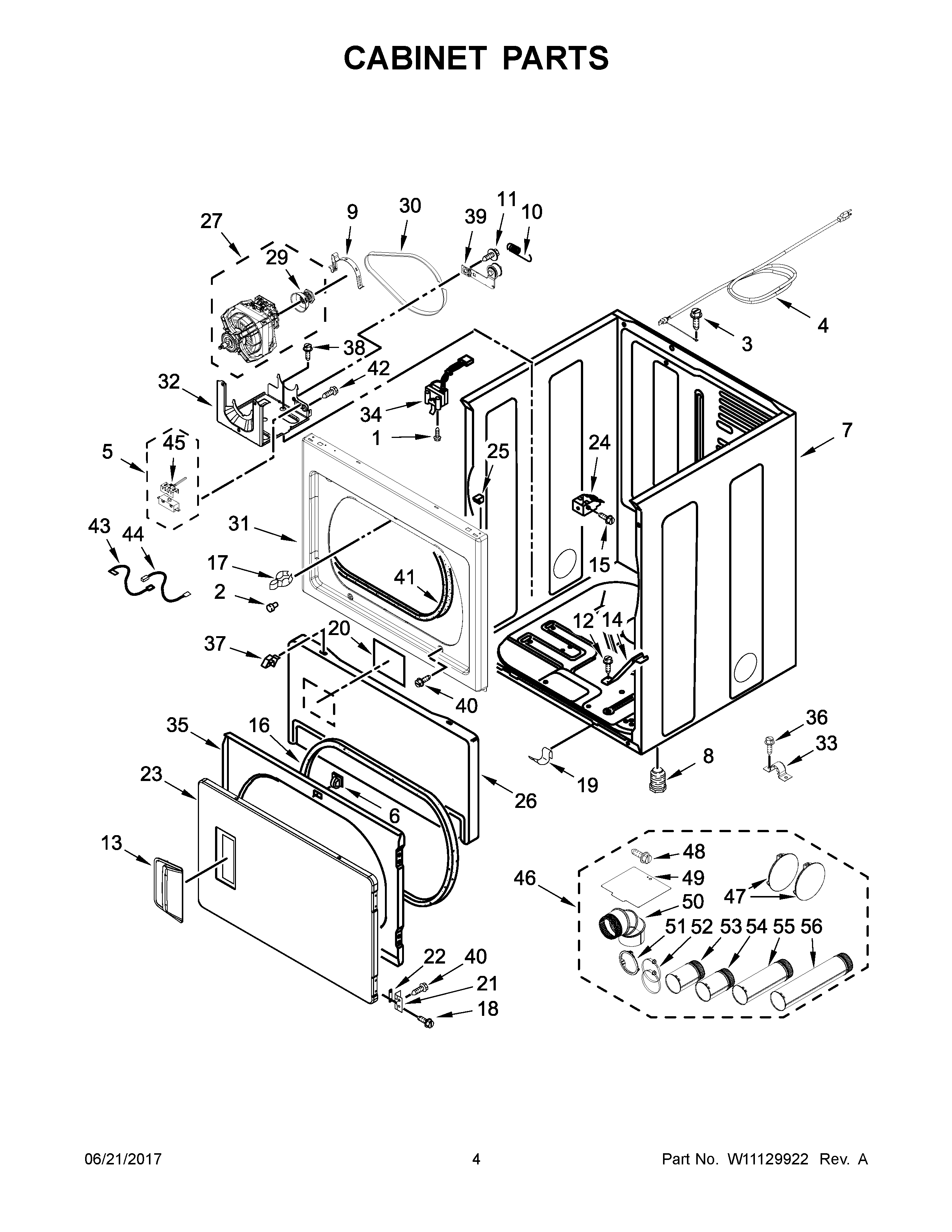

MGDP575GW0 03 – CABINET PARTS

Products

Position	Product
1	SCREW
2	BUMPER
3	SCREW
4	CORD, POWER
5	Switch, Broken Belt
6	MAY 3392538
7	MAY W10547697
8	MAY W10561321
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12	Screw
13	Handle, Door (White)
14	MAY 8529757
15	MAY W10879744
16	MAY 3390735
17	MAY 696144
18	MAY 342055
19	CLIP
20	MAY W10836097
21	ASSEMBLY, HINGE & PIN (SILVER)
22	PLUG, HINGE SCREW
23	DOOR, FRONT
24	CLIP, FRONT PANEL
25	LOCK TOP
26	Toe Panel (Includes Item. 2) (White)
27	MOTOR
28	MAY 3393657
29	PULLEY, MOTOR
30	BELT, DRIVE
31	PANEL, FRONT (WHITE)
32	MAY 3387118
33	MAY 3387561
34	Switch, Door
35	MAY W10323061
36	MAY 8533971
37	RETAINER
38	SCREW
39	PULLEY-IDLER ASSEMBLY
40	SCREW
41	MAY 3387242
42	Screw, 6-20 x 1-1/16
43	Wire, Jumper (Broken Belt Switch)
44	MAY W10167612
45	MAY 8066120
46	MAY W10470674
47	PLUG, MULTIVENT (MIDNIGHT GREY)
48	MAY 488729
49	MAY W10354249
50	MAY W10416072
51	MAY W10344699
52	HOSE CLAMP
53	PIPE, EXHAUST (SHORT)
54	PIPE, EXHAUST
55	PIPE, EXHAUST (MEDIUM)
56	PIPE, EXHAUST (LONG)
