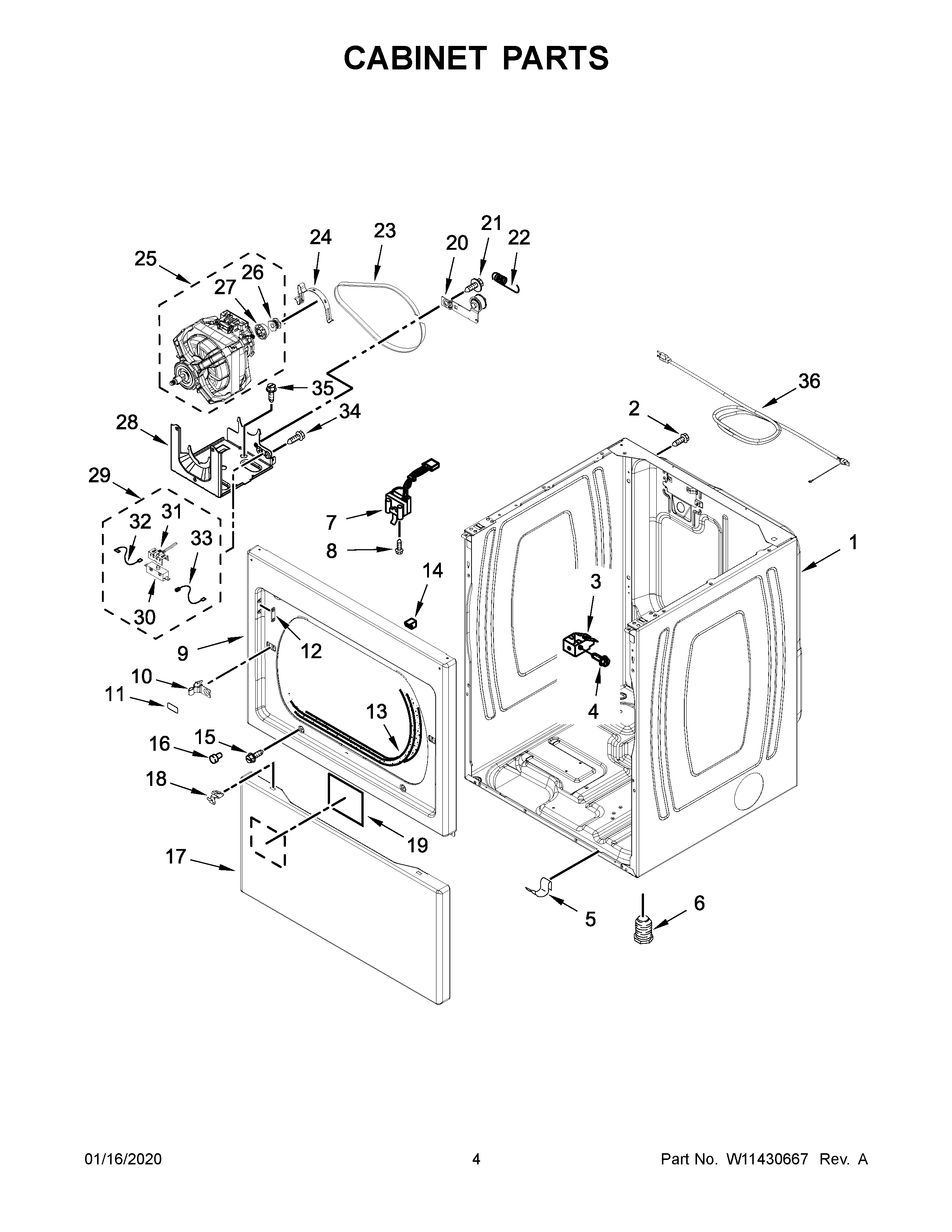

MGDP576KW0 03 – CABINET PARTSadmin2025-04-26T11:31:14+00:00MGDP576KW0 03 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | CABINET (WHITE) |
| 2 | SCREW |
| 3 | CLIP, FRONT PANEL |
| 4 | MAY W10879744 |
| 5 | CLIP |
| 6 | MAY W10561321 |
| 7 | Switch, Door |
| 8 | SCREW |
| 9 | PANEL, FRONT |
| 10 | Strike, Door |
| 11 | COVER, STRIKE (WHITE) |
| 12 | PLUG, HINGE SCREW |
| 13 | MAY 3387242 |
| 14 | LOCK TOP |
| 15 | SCREW |
| 16 | BUMPER |
| 17 | Toe Panel (Includes Item. 2) (White) |
| 18 | RETAINER |
| 19 | MAY W10836097 |
| 20 | PULLEY-IDLER ASSEMBLY |
| 21 | SCREW |
| 22 | MAY W10446781 |
| 23 | BELT, DRIVE |
| 24 | MAY 660658 |
| 25 | MOTOR |
| 26 | PULLEY, MOTOR |
| 27 | MAY 3393657 |
| 28 | MAY 3387118 |
| 29 | Switch, Broken Belt |
| 30 | MAY 3394881 |
| 31 | MAY 8066120 |
| 32 | Wire, Jumper (Broken Belt Switch) |
| 33 | MAY W10167612 |
| 34 | Screw, 6-20 x 1-1/16 |
| 35 | SCREW |
| 36 | CORD, POWER |
