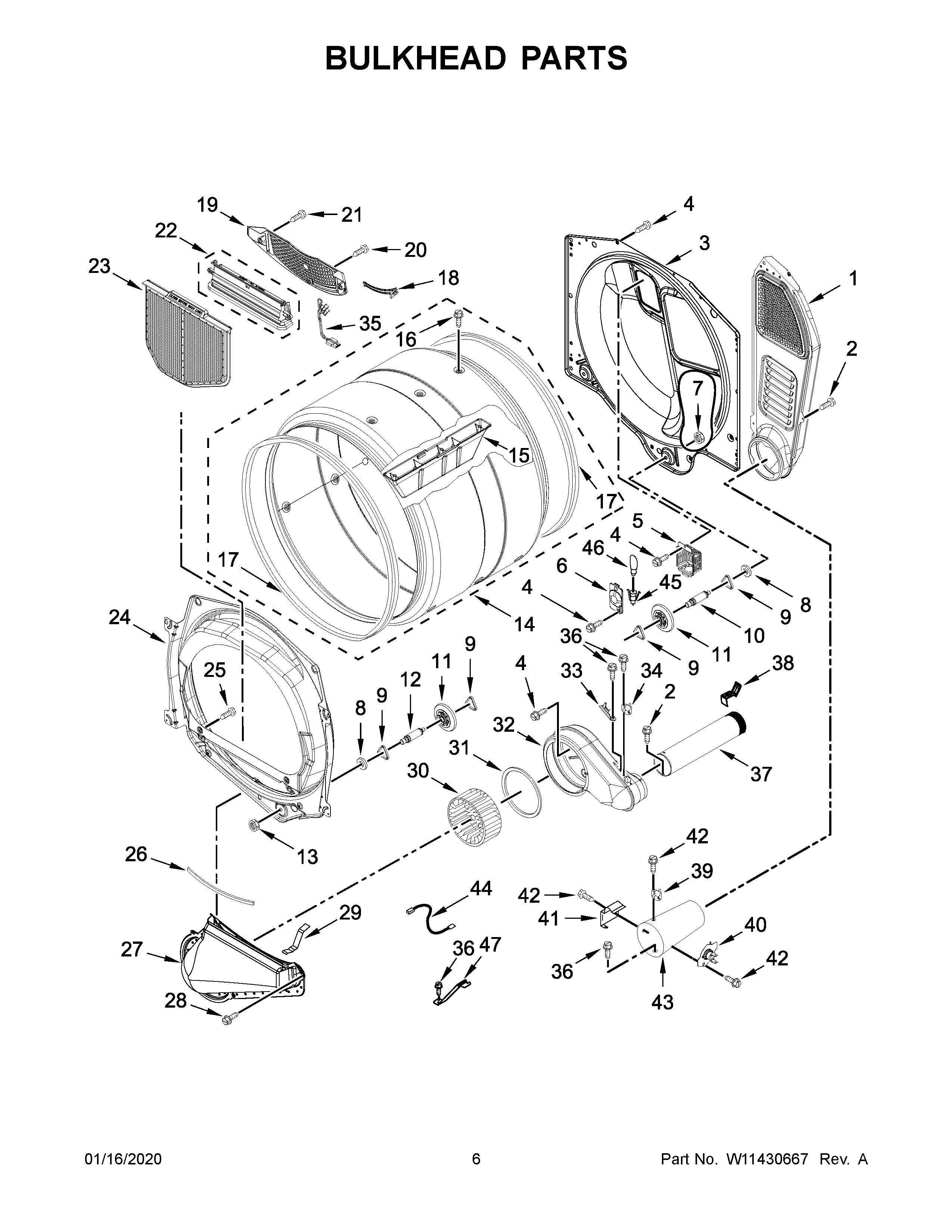

MGDP576KW0 04 – BULKHEAD PARTS

Products

Position	Product
1	ASSEMBLY, AIR DUCT
2	MAY 8533971
3	BULKHEAD, REAR
4	SCREW
5	MAY 8578825
6	MAY 3402841
7	NUT, HEX (LEFT HAND THREAD)
8	WASHER
9	WASHER, TRI RING
10	SHAFT, DRUM ROLLER - LEFT HAND THREAD
11	ROLLER, SUPPORT
12	SHAFT, DRUM ROLLER RIGHT HAND THREAD
13	NUT, HEX
14	ASSEMBLY, DRUM
15	BAFFLE, DRUM
16	MAY W10219342
17	MAY W10521118
18	SENSOR, ELECTRODE
19	GRILL, OUTLET
20	SCREW
21	Screw, 8-18 x 1/2
22	ASSEMBLY, OUTLET HOUSING
23	MAY W10049370
24	BULKHEAD, FRONT
25	SCREW
26	MAY 697814
27	Lint Duct Assembly
28	Screw
29	CLIP, SPRING
30	MAY W10349492
31	SEAL, PLATE COVER
32	MAY 8544362
33	Fuse, Thermal (91 C)
34	MAY 8318268
35	MAY W10298258
36	Screw
37	PIPE, EXHAUST
38	CLIP, EXHAUST
39	THERMOSTAT, HI LIMIT
40	CUT-OFF, THERMAL
41	MAY 338906
42	SCREW,8-18 X 3/8
43	MAY 8573824
44	WIRE JUMPER
45	MAY W10214261
46	MAY 3406124
47	MAY 8529757
