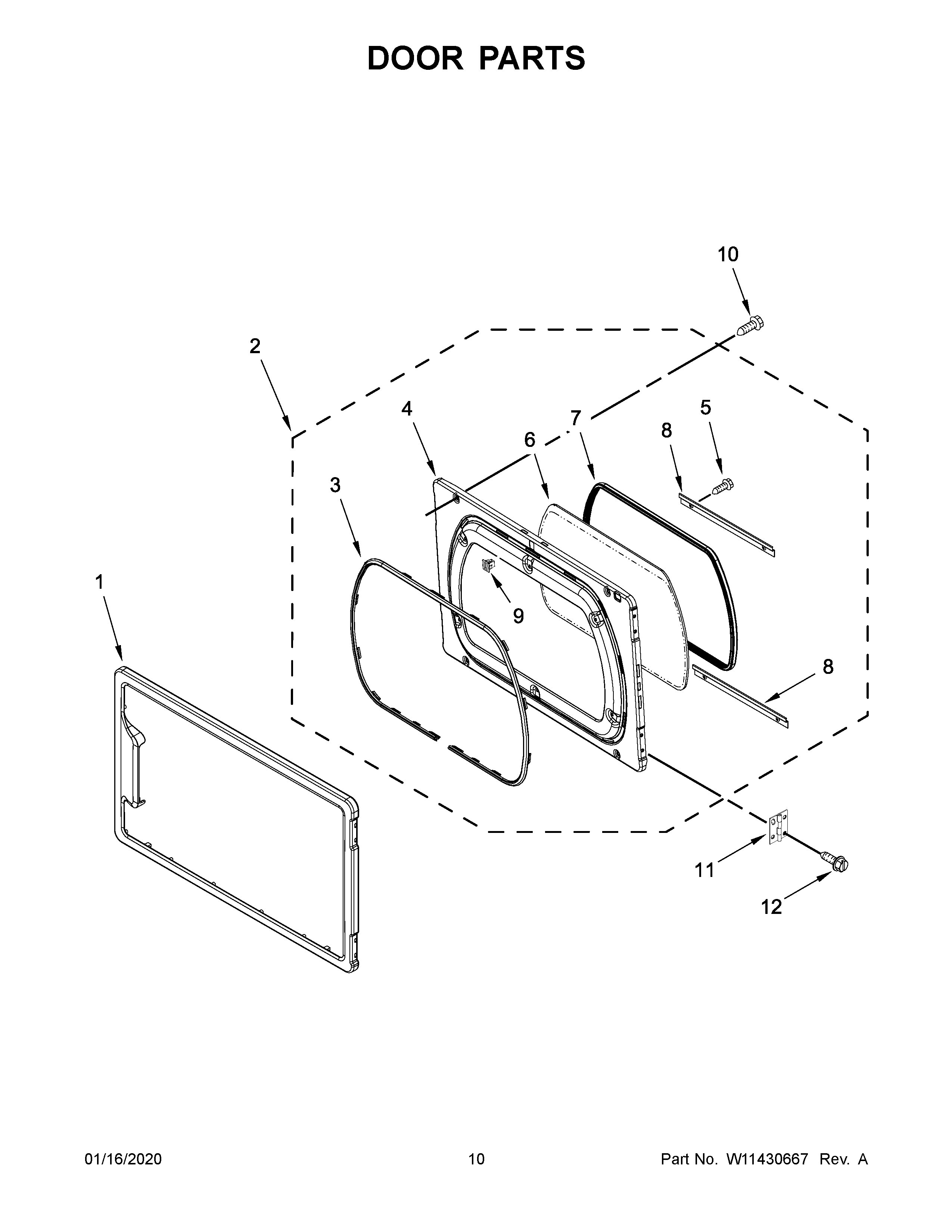

MGDP576KW0 06 – DOOR PARTS

MGDP576KW0 06 – DOOR PARTS

Written by

in

MGDP576KW0 06 – DOOR PARTS

Products

PositionProduct
1MAY W10284127
2ASSEMBLY, INNER DOOR (WHITE)
3SEAL, DOOR
4DOOR, INNER (WHITE)
5Screw, 10-16 x 1/2
6GLASS, DOOR
7SEAL, WINDOW
8MAY 8519354
9Catch, Door
10SCREW
11ASSEMBLY, HINGE & PIN (SILVER)
12MAY 342055
