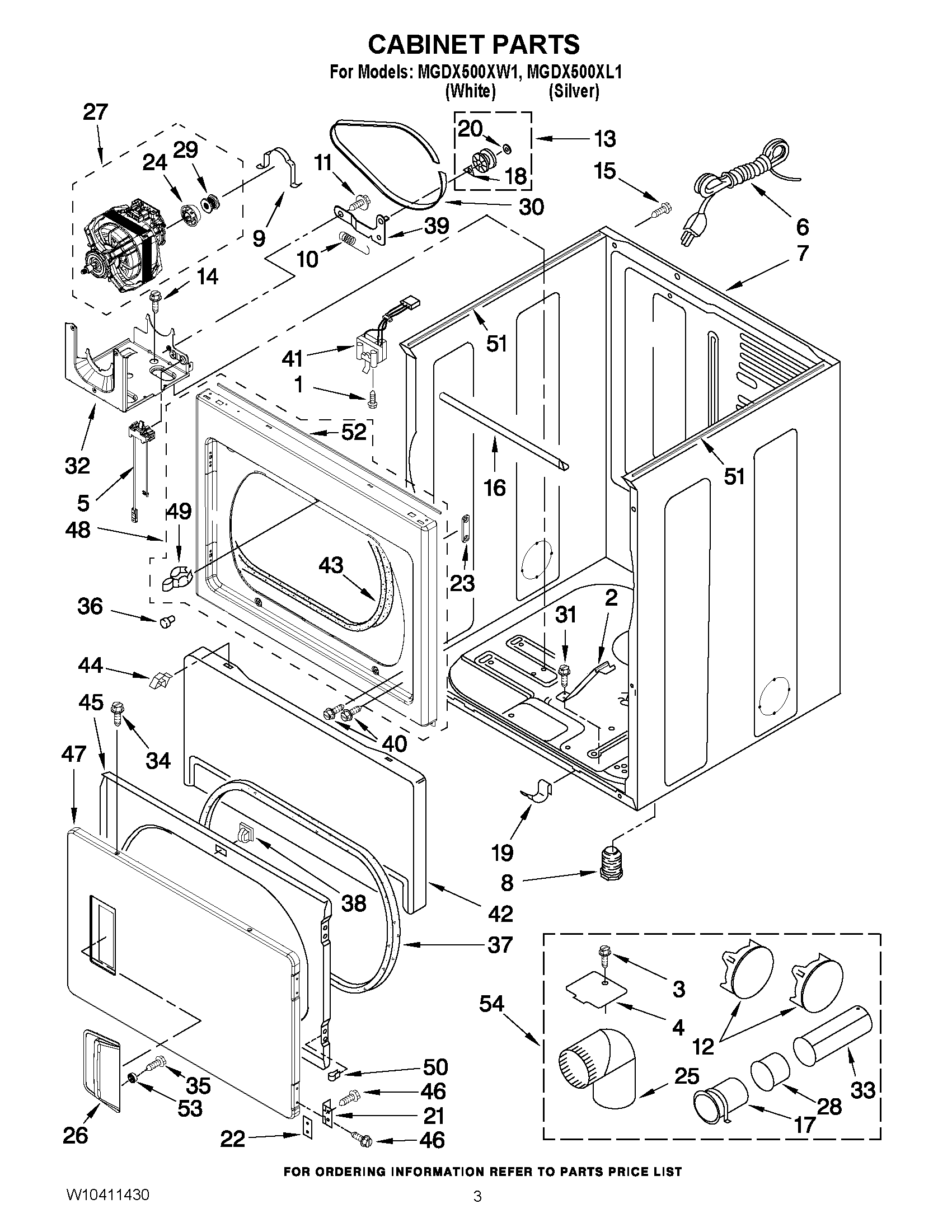

MGDX500XL1 02 – CABINET PARTSadmin2025-04-26T11:30:08+00:00MGDX500XL1 02 – CABINET PARTS
Products
| Position | Product |
|---|
| NI | MAY 279818 |
| NI | DRYER EXHAUST KIT (FOR SIDE & BOTTOMVENTING) (MIDNIGHT GREY) |
| NI | MAY 279810 |
| 1 | SCREW |
| 2 | MAY 8529757 |
| 3 | MAY 488729 |
| 4 | MAY 3394331 |
| 5 | MAY W10246525 |
| 6 | MAY 344020 |
| 7 | MAY 8310656 |
| 7 | MAY W10292891 |
| 8 | MAY 3392100 |
| 9 | MAY 660658 |
| 10 | MAY 3387374 |
| 11 | SCREW |
| 12 | MAY 697750 |
| 13 | ASSEMBLY, PULLEY |
| 14 | SCREW |
| 15 | MAY 8533974 |
| 16 | BRACKET, CABINET |
| 17 | PIPE, EXHAUST (MEDIUM) |
| 18 | WASHER, TRI RING |
| 19 | CLIP |
| 20 | MAY W10121334 |
| 21 | Hinge & Pin Assembly (2) |
| 22 | MAY 3390902 |
| 23 | PLUG, HINGE SCREW |
| 24 | MAY 3393657 |
| 25 | MAY 49026 |
| 26 | MAY W10284182 |
| 26 | MAY W10284183 |
| 27 | MAY W10281085 |
| 28 | MAY 8563750 |
| 29 | MAY 3389729 |
| 30 | MAY W10112954 |
| 31 | Screw |
| 32 | MAY W10242878 |
| 33 | PIPE, EXHAUST (LONG) |
| 34 | MAY 694091 |
| 35 | SCREW |
| 36 | BUMPER |
| 37 | MAY 3390735 |
| 38 | MAY 3392538 |
| 39 | MAY 3388674 |
| 40 | SCREW |
| 41 | Switch, Door |
| 42 | TOE, PANEL (INCLUDES ITEM. 36) (SILVER) |
| 42 | Toe Panel (Includes Item. 2) (White) |
| 43 | MAY 3387242 |
| 44 | RETAINER |
| 45 | MAY 3392563 |
| 46 | MAY 342055 |
| 47 | MAY W10279721 |
| 47 | MAY W10279725 |
| 48 | PANEL, FRONT (WHITE) |
| 48 | MAY W10115468 |
| 49 | MAY 696144 |
| 50 | Nut, Inner Door (4) |
| 51 | SEAL, FOAM |
| 52 | SEAL, SPILL GUARD |
| 53 | MAY W10294344 |
