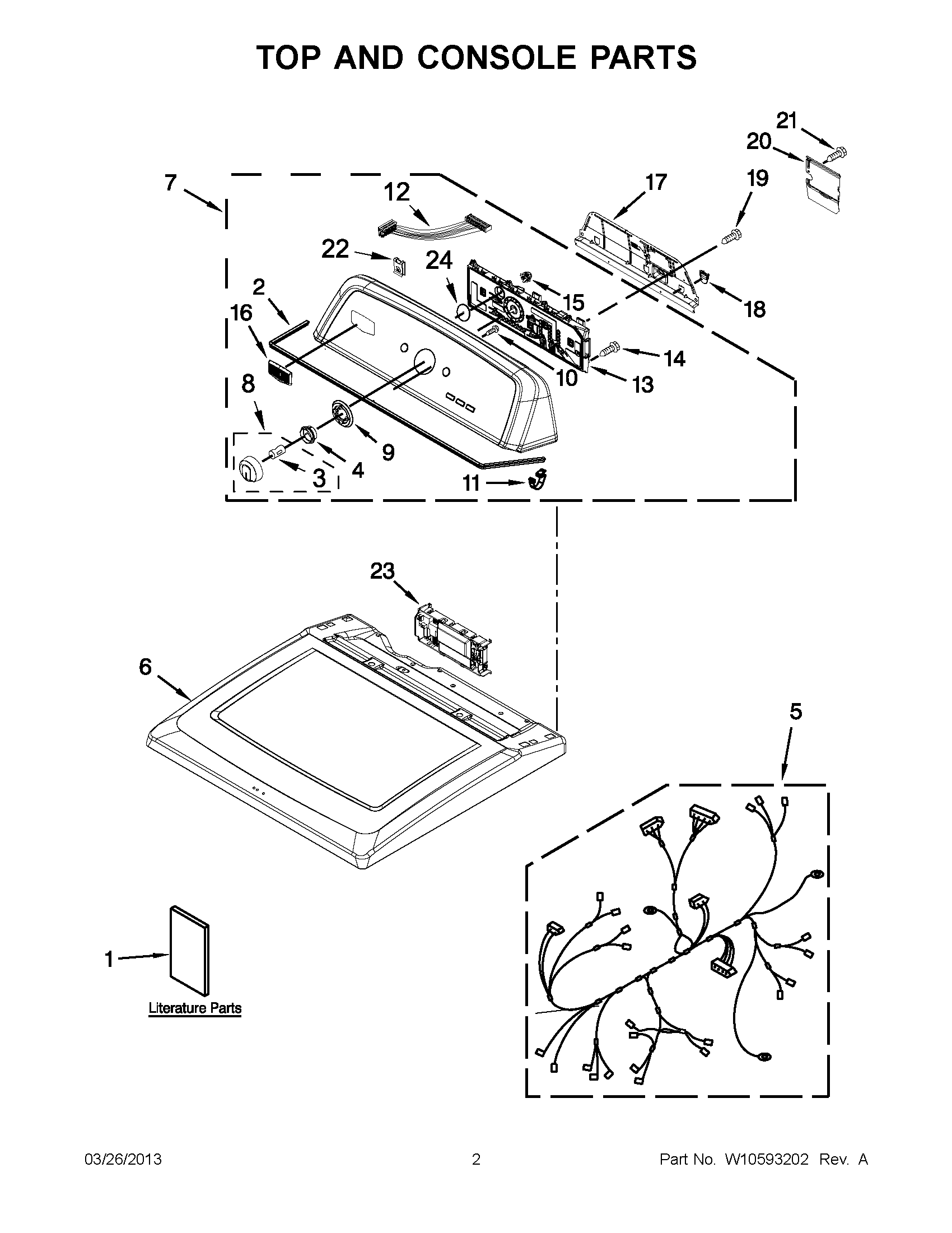

MGDX500XW2 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10259284
1	MAY W10417013
1	MAY W10097013
1	MAY W10514185
2	MAY W10280079
3	CLIP, SPRING
4	MAY W10326923
5	MAIN HARNESS
6	MAY W10268730
7	ASSEMBLY, CONSOLE (WHITE)
8	MAY W10251381
9	MAY W10305134
10	SCREW
11	MAY 8312709
12	CABLE, USER INTERFACE
13	ASSEMBLY, USER INTERFACE
14	MAY W10219342
15	TENSIONER, FASCIA
16	MAY W10492808
17	MAY W10550615
18	PLUG, UPPER REAR PANEL
19	SCREW
20	MAY W10338363
21	MAY 359625
22	NUT, "U"
23	MAY W10317638
24	SEAL, USER INTERFACE
