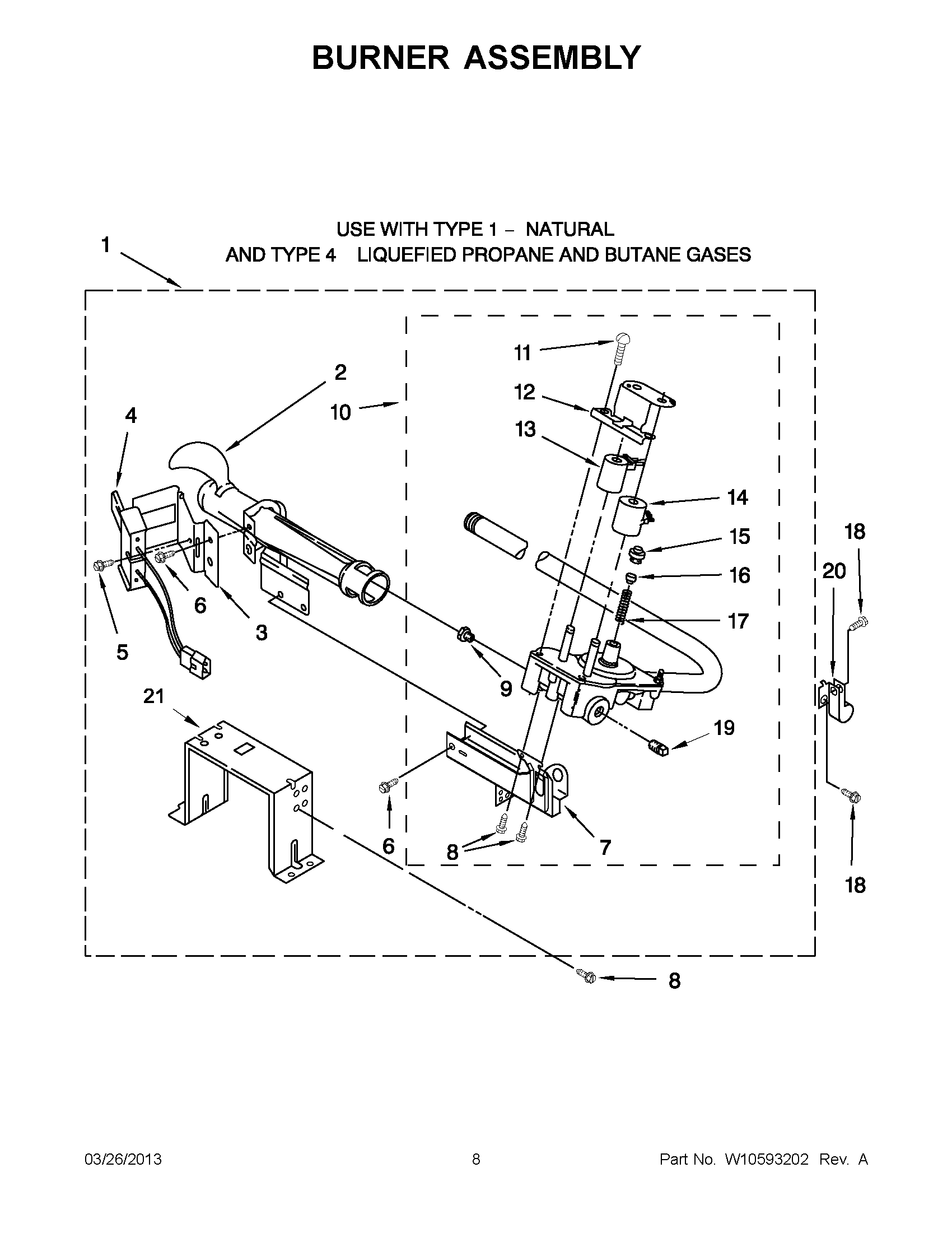

MGDX500XW2 04 – BURNER ASSEMBLY

MGDX500XW2 04 – BURNER ASSEMBLY

Written by

in

MGDX500XW2 04 – BURNER ASSEMBLY

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIConversion Kit (Type (1) to Type (4) LPG).
1BURNER ASSEMBLY 60 HZ. (TYPE 1)(WHITE RODGERS)
2MAY 688617
3MAY 694298
4MAY 686590
5MAY 3393909
6SCREW
7MAY 3389871
8SCREW
9ORIFICE, BURNER (TYPE 1 (NATURAL))
9Orifice, Burner (Type 4 (Propane))
9Orifice, Burner (Type 4 (Butane))
10VALVE, GAS 60 HZ. (COMPLETE)
11SCREW, COIL
12MAY 694538
13MAY 694540
14COIL, 60 HZ (SPLIT) (3TERMINAL) (PILOT POSITION)
15MAY 694424
16MAY 694423
17MAY 694422
18SCREW
19MAY 239822
20MAY 3387561
21MAY 3389889
