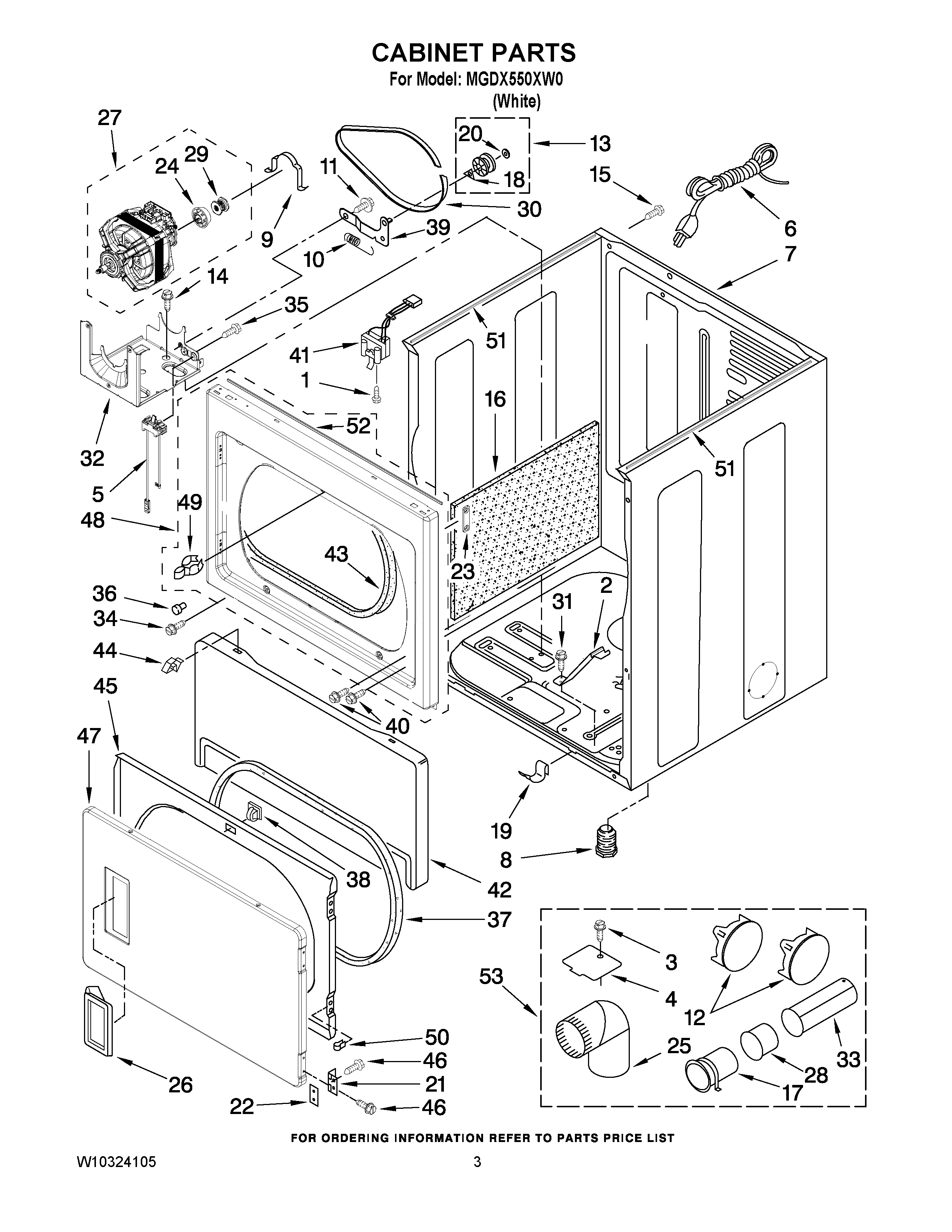

MGDX550XW0 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	SCREW
2	MAY 8529757
3	MAY 488729
4	MAY 3394331
5	MAY W10246525
6	MAY 344020
7	MAY 8310656
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SCREW
12	MAY 697750
13	ASSEMBLY, PULLEY
14	SCREW
15	MAY 8533974
16	MAY W10123956
17	PIPE, EXHAUST (MEDIUM)
18	WASHER, TRI RING
19	Clip (2)
20	MAY W10121334
21	Hinge & Pin Assembly (2)
22	MAY 3390902
23	PLUG, HINGE SCREW
24	MAY 3393657
25	MAY 49026
26	MAY W10284182
27	MAY W10281085
28	MAY 8563750
29	MAY 3389729
30	MAY W10112954
31	Screw
32	MAY W10242878
33	PIPE, EXHAUST (LONG)
34	SCREW
35	Screw, 6-20 x 1-1/16
36	BUMPER
37	MAY 3390735
38	MAY 3392538
39	MAY 3388674
40	SCREW
41	Switch, Door
42	Toe Panel (Includes Item. 2) (White)
43	MAY 3387242
44	RETAINER
45	MAY 3392563
46	MAY 342055
47	MAY W10279721
48	PANEL, FRONT (WHITE)
49	MAY 696144
50	Nut, Inner Door (4)
51	FOAM SEAL
52	SEAL-FOAM (IEC)
53	MAY 279818
