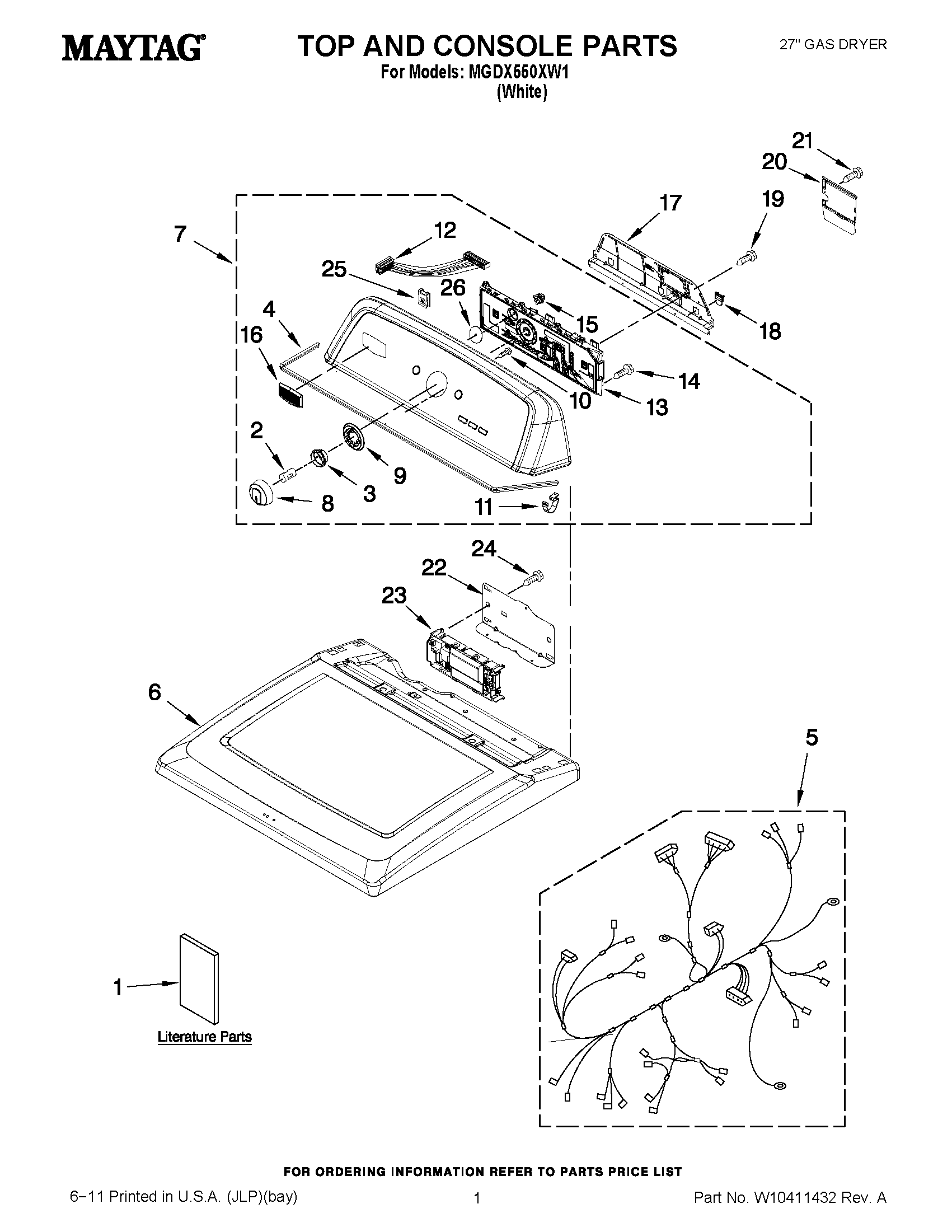

MGDX550XW1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10097013
1	INSTALLATION, INSTRUCTION
1	MAY W10259284
2	CLIP, SPRING
3	MAY W10326923
4	MAY W10280079
5	MAIN HARNESS
6	MAY W10268730
7	MAY W10293246
8	MAY W10251381
9	MAY W10305134
10	SCREW
11	MAY 8312709
12	CABLE, USER INTERFACE
13	USER INTERFACE ASSEMBLY
14	MAY W10219342
15	TENSIONER, FASCIA
16	MAY W10323735
17	MAY W10096969
18	PLUG, UPPER REAR PANEL
19	SCREW
20	MAY W10338363
21	MAY 359625
22	MAY W10271580
23	MAY W10317638
24	MAY 342055
25	NUT, "U"
26	SEAL, USER INTERFACE
