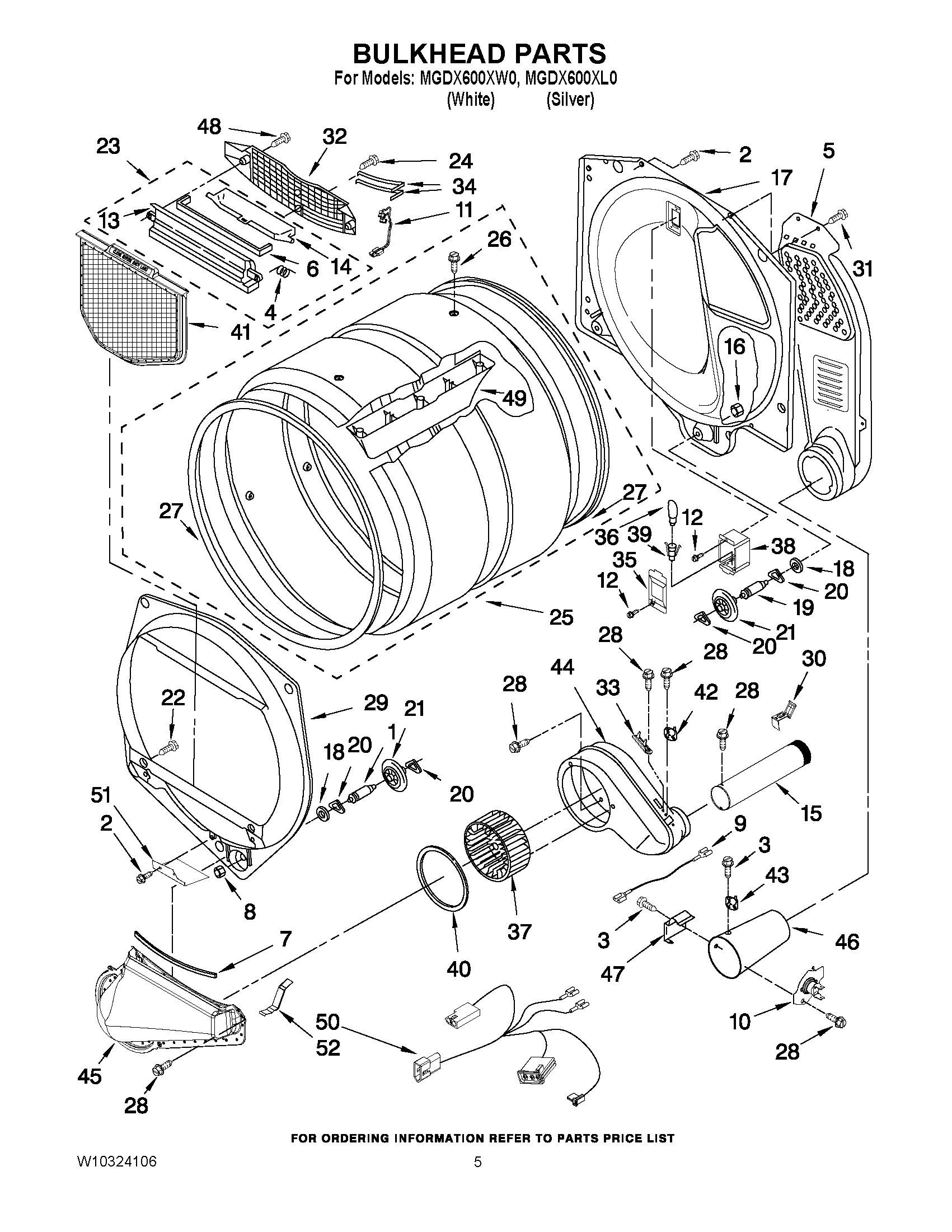

MGDX600XW0 03 – BULKHEAD PARTS
Written by
in
MGDX600XW0 03 – BULKHEAD PARTS
Products
Position
Product
1
MAY 8575324
2
SCREW
3
SCREW,8-18 X 3/8
4
Spring, Lint Screen Door
5
ASSEMBLY, AIR DUCT
6
MAY 697813
7
MAY 697814
8
NUT, HEX
9
WIRE JUMPER
10
CUT-OFF, THERMAL
11
MAY W10298258
12
MAY 487909
13
MAY W10153414
14
MAY W10153413
15
PIPE, EXHAUST
16
NUT, HEX (LEFT HAND THREAD)
17
MAY 8520836
18
WASHER
19
MAY 8575325
20
WASHER, TRI RING
21
ROLLER, SUPPORT
22
MAY 342055
23
Housing, Outlet
24
MAY 359625
25
Complete Drum Assembly
26
MAY W10219342
27
MAY W10166807
28
MAY 8533971
29
BULKHEAD, FRONT
30
CLIP, EXHAUST
31
Screw
32
MAY W10153412
33
Fuse, Thermal (91 C)
34
SENSOR, ELECTRODE
35
MAY 3402841
36
MAY 3406124
37
MAY 697772
38
MAY 8578825
39
MAY W10214261
40
SEAL, PLATE COVER
41
MAY W10049370
42
THERMISTOR
43
THERMOSTAT, HI LIMIT
44
MAY 8544362
45
Lint Duct Assembly
46
MAY 8573824
47
MAY 338906
48
SCREW
49
BAFFLE, DRUM
50
MAY W10305870
51
MAY W10128629
52
CLIP-SPRING
←
