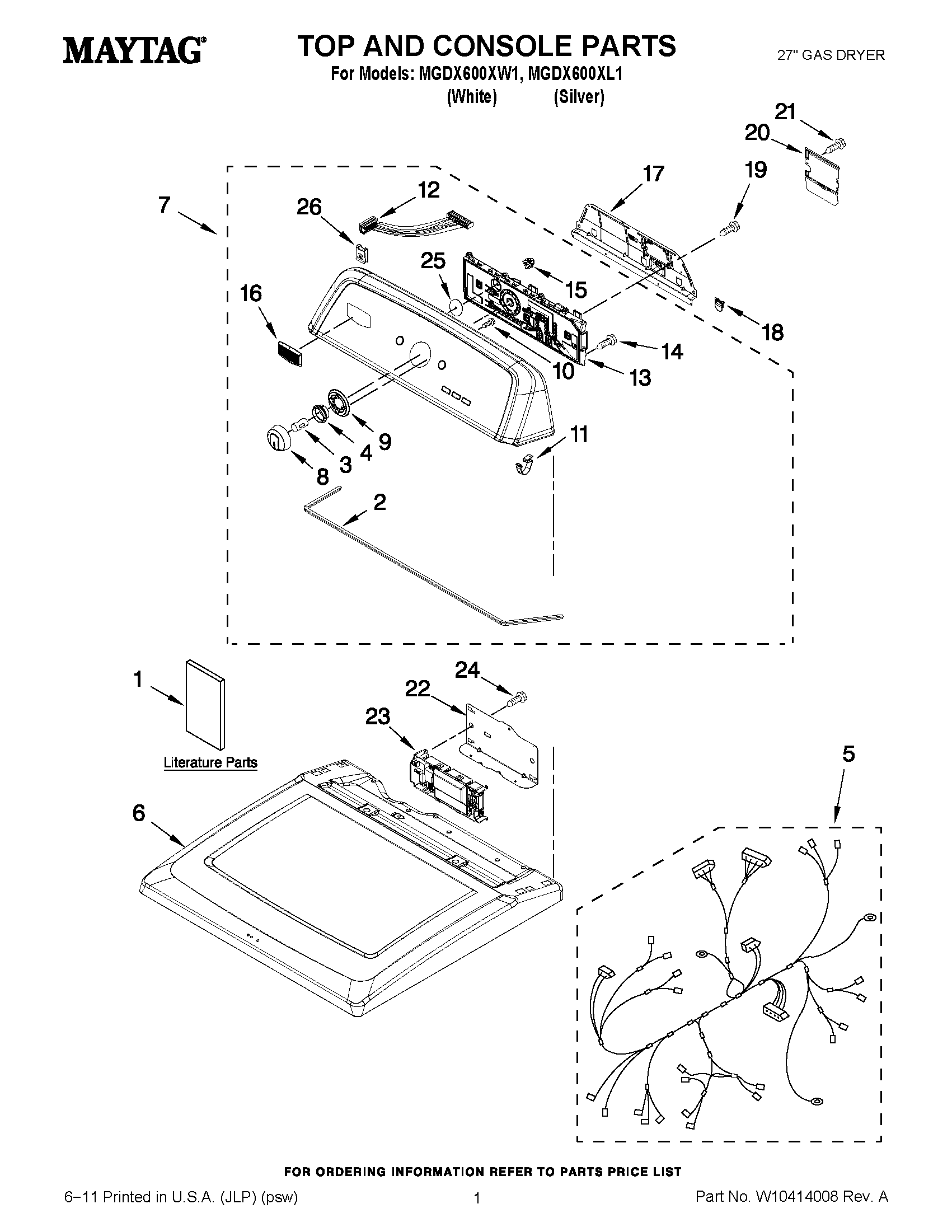

MGDX600XW1 01 – TOP AND CONSOLE PARTS

MGDX600XW1 01 – TOP AND CONSOLE PARTS

Written by

in

MGDX600XW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10096989
1MAY W10259284
1MAY W10097036
1INSTALLATION, INSTRUCTION
2MAY W10280079
3CLIP, SPRING
4MAY W10326923
5MAIN HARNESS
6MAY W10268730
6TOP (SILVER)
7ASSEMBLY, CONSOLE (WHITE)
7MAY W10115384
8MAY W10251381
8KNOB, CONTROL (CHROME)
9MAY W10305134
10SCREW
12HARNESS, USER INTERFACE
13ASSEMBLY, USER INTERFACE
14MAY W10219342
15TENSIONER, FASCIA
16MAY W10323735
17MAY W10096969
18PLUG, UPPER REAR PANEL
19SCREW
20MAY W10338363
21MAY 359625
22MAY W10271580
23MAY W10317638
24MAY 342055
25SEAL, USER INTERFACE
26MAY 8312709
