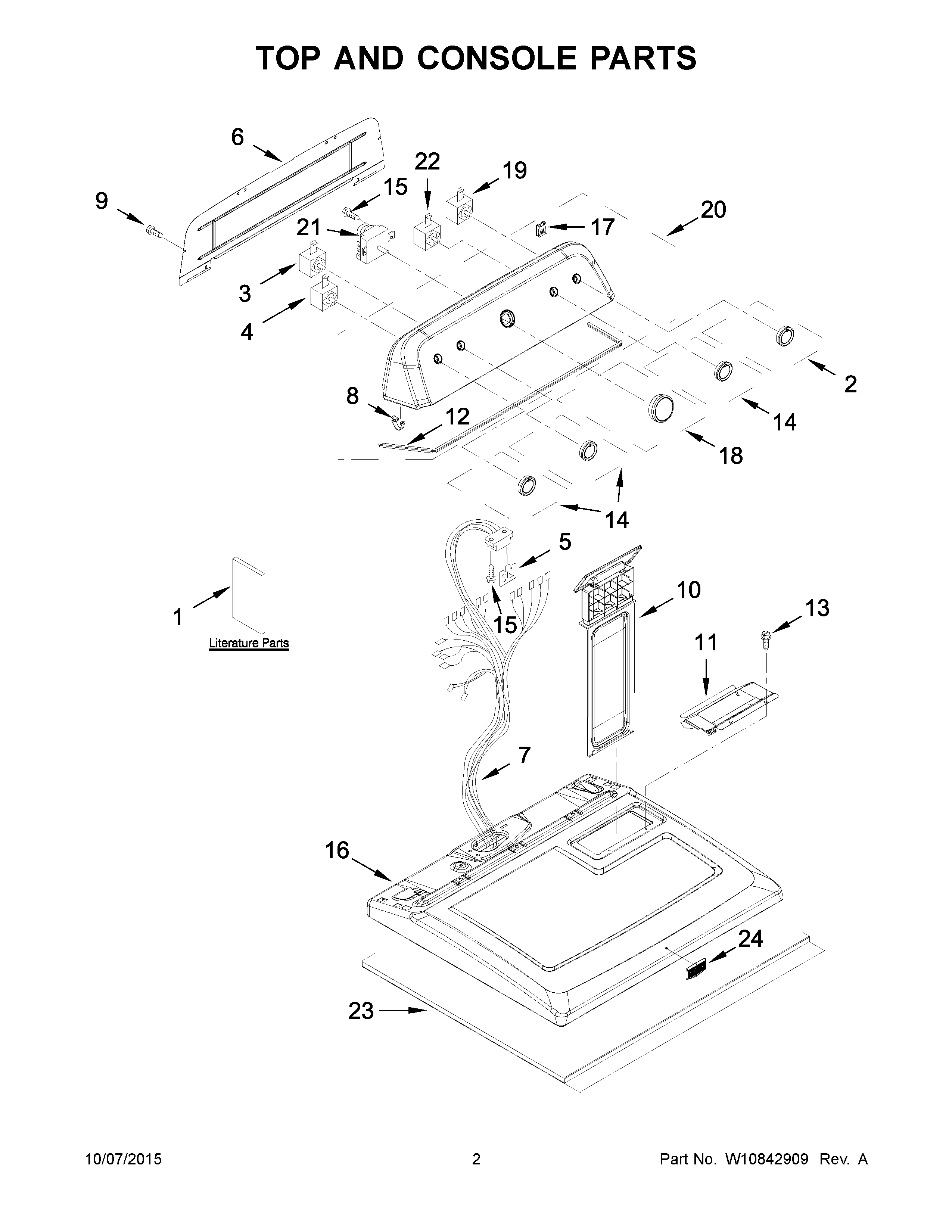

MGDX655DW1 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1B	MAY W10185994
1A	MAY W10562360
1	MAY W10594781
2	ASSEMBLY, PUSH TO START KNOB (GREY)
3	MAY W10627711
4	MAY W10562713
5	MAY W10476828
6	MAY W10416486
7	MAY W10640712
8	MAY 8312709
9	MAY 8533974
10	LINT SCREEN (WHITE)
11	COLLAR, LINT CHUTE
12	MAY W10588162
13	SCREW
14	MAY W10562155
15	MAY 3348629
16	TOP (WHITE)
17	NUT, "U"
18	MAY W10558463
19	MAY W10563095
20	MAY W10557259
21	MAY W10642928
22	MAY W10563094
23	MAY W10123956
24	BADGE
